SIMPLY NUC

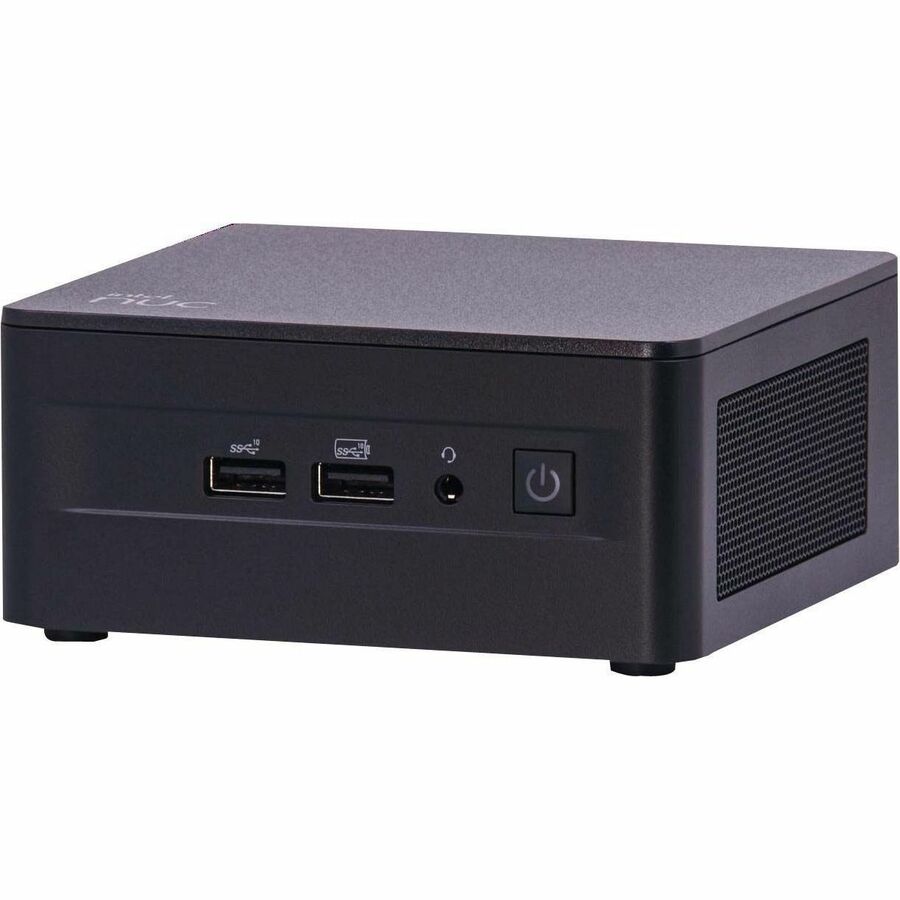

SIMPLY NUC 910-T7H5-091 ARENA I3 H (NUC13ANHI3), 8GB MEM, 256GB PCIE GEN 4 M.2 SSD, WINDOWS 11 PRO
Mfg Part Number: 910-T7H5-091 , Item #: 5023654
, PO and Wire.
Top-Tier Performance for the Home and Office
Introducing Arena Canyon, the NUC 13 Pro from Intel and the latest addition to Simply NUC's 4x4 business NUC lineup. Arena Canyon offers the perfect combination of size, performance, reliability, and versatility needed to drive modern businesses. The NUC 13 Pro delivers outsized performance in its 4x4 form factor with the latest in technology, from Intel's 13th Gen Raptor Lake 1340P processor to Thunderbolt 4 and Wi-Fi 6E, delivering top-tier performance for the home and office.
Protected and Productive, 24/7
The NUC 13 Pro i5 is a featurerich device with a plethora of I/O options, equipped with dual HDMI 2.1 ports, dual Thunderbolt 4, and four USB-A ports as standard. Further expand the functionality of your unit via the rear expansion panel on the H SKUs and the replaceable lid on both the H and K models, making Arena Canyon adaptable to your specific use case. Select Arena Canyon SKUs comes with Intel vPro technology, making it ideal for office deployments with its remote manageability and added hardware-level security features. From performing remote updates to securing your files from intrusion, the NUC 13 Pro will keep you protected and productive, 24/7.
A Clean, Seamless, and Powerful Mini PC Experience
Networking is a breeze with Arena Canyon's 2.5Gb LAN port and can be expanded on the H SKU to add an additional 2.5Gb port via the rear expansion panel, allowing connection redundancy and increased networking capabilities, with the added perk of an additional two USB 2.0 ports. Not a fan of cables? No problem. Arena Canyon comes equipped with WiFi 6E and Bluetooth 5.3, allowing you to ditch the cables to get a clean, seamless, and powerful mini PC experience.
| General Information | |
| Manufacturer | SimplyNUC |
| Manufacturer Part Number | 910-T7H5-091 |
| Manufacturer Website Address | http://www.simplynuc.co.uk |
| Brand Name | SimplyNUC |
| Product Line | Arena Canyon |
| Product Model | NUC13ANHi3 |
| Product Name | ArenaCanyon NUC13ANHi3 Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i3 |
| Processor Generation | 13th Gen |
| Processor Model | i3-1315U |
| Processor Core | Hexa-core (6 Core) |
| Maximum Turbo Speed | 4.50 GHz |
| Processor Threads | 8 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 8 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed | 3200 MHz |
| Total Number of Memory Slots | 2 |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | i226V |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Number Of Ethernet Ports | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Miscellaneous | |
| Package Contents |
|
| Features | Security Slot |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
