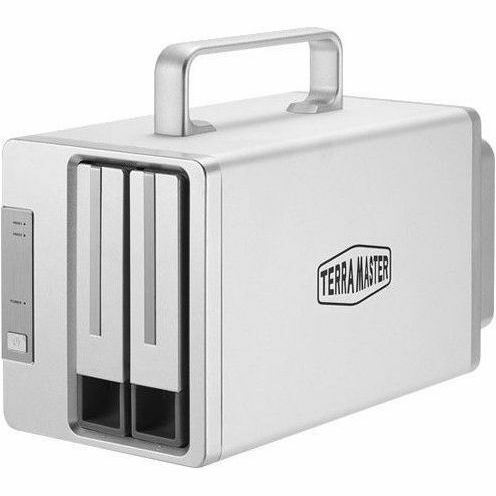

TERRAMASTR TD2-THUNDERBOLT 3 TerraMaster TD2 Thunderbolt 3 - hard drive array
Mfg Part Number: TD2-THUNDERBOLT 3 , Item #: 5023322
, PO and Wire.
Professional 8K Display
Using DisplayPort 1.4 and Thunderbolt 3 interfaces, you can link the TD2 Thunderbolt 3 to a single 8K or dual 4K displays. The device can serve up to 3 display screens.
HD Projection
Using a Thunderbolt 3 cable, you can project your phone's screen to a high-definition display. This will help you to streamline your workflow, moving seamlessly between your handset and your desktop.
Daisy-chaining
TD2 Thunderbolt 3 supports daisy-chained connections. You can connect to 5 other Thunderbolt 3 devices via a Thunderbolt 3 interface.
More Storage Space
TD2 Thunderbolt 3 is equipped with two SATA hard drive slots. You can install two 3.5-inch or 2.5-inch hard drives or SSDs using these slots, offering a maximum storage space of 32 TB.
Hardware RAID Controller
TD2 Thunderbolt 3 is equipped with a hardware RAID controller. Use this to switch between RAID 0, RAID 1, JBOD, and Single freely. The device also supports automatic rebuilding of RAID 1.
USB Interface Compatibility
As a truly universal device, the Thunderbolt 3 interface of TD2 Thunderbolt 3 is compatible with your computer's USB 3.0/3.1 interface.
Optimized for Video Professionals
With aluminum casing and a built-in, temperature-controlled smart fan, TD2 Thunderbolt 3 ensures total heat dissipation. Therefore, it maintains an optimal working performance - all the time.
Intelligent, Energy-saving Design
With its automatic power-on design, TD2 Thunderbolt 3 benefits from its intelligent approach to energy conservation. Once your computer is powered off or set to sleep, TD2 Thunderbolt 3 will automatically enter sleep mode. When you switch your computer back on, the device will exist sleep mode. During sleep, only the hard drive and the fan stop running, while other functions operate normally. In case of an accidental power outage, TD2 Thunderbolt 3 will power on automatically when the power supply is reconnected.
Exclusive worry-free warranty
Brand new replacement for 2 years, quick service in 24 hours!
| General Information | |
| Manufacturer | TerraMaster |
| Manufacturer Part Number | TD2-THUNDERBOLT 3 |
| Manufacturer Website Address | http://www.terra-master.com |
| Brand Name | TerraMaster |
| Product Model | TD2 Thunderbolt 3 |
| Product Name | TD2 Thunderbolt 3 2-Bay Professional-Grade RAID |
| Packaged Quantity | 1 |
| Product Type | DAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 2 |
| Number of Hard Drives Installed | 0 |
| Total Hard Drive Capacity Supported | 36 TB |
| Number of Solid State Drive Supported | 2 |
| Number of Solid State Drive Installed | 0 |
| Total Solid State Drive Capacity Supported | 36 TB |
| Maximum Data Transfer Rate | 40 Gbit/s |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of 2.5"/3.5" Bays | 2 |
| Controllers | |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, JBOD |
| Interfaces/Ports | |
| Drive Interface | Serial ATA |
| Host Interface | Thunderbolt 3 |
| DisplayPort | Yes |
| Number of Thunderbolt 3 Ports | 2 |
| Management & Protocols | |
| Protocols | NTFS |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Height | 18.9 ft |
| Width | 119" |
| Depth | 14.4 ft |
| Weight (Approximate) | 3.09 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
