PTZOPTICS

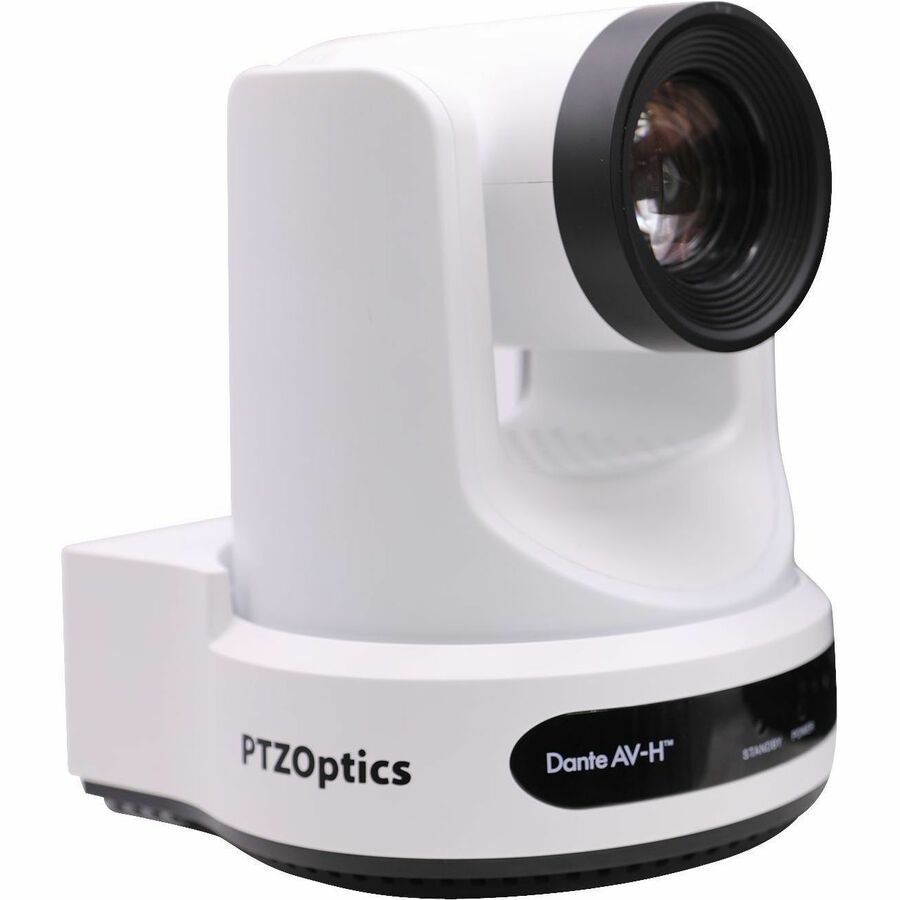

PT20X-LINK-4K-WH PTZOptics Link 4K Dante AV-H IP PTZ camera featuring 20X Optical Zoom 4K Resolution at 60fps and a 60.7 HFOV. Supports simultaneous IP Video (DANTE AV-H SRT RTMPS RTSP) USB2.0 and 3G-SDI or HDMI2.0 as outputs with Auto-Tracking capabilities. DC or
Mfg Part Number: PT20X-LINK-4K-WH , Item #: 5023131
Image may not reflect the actual item.
Price: $2,909.91
+ Free Shipping
Quantity:
More to Come
Last Updated: Oct 26, 2025
No Sales Tax except these states
, PO and Wire.
Providing simple set up and manageability while offering the latest in auto-tracking capabilities, the Link 4K fits easily into any Dante AV-H workflow. The Link 4K has outputs for SDI, HDMI, USB, and IP and comes with either a 12X, 20X, or 30X optical zoom, as well as a built-in tally light. Compatible with most video production software
FEATURES
- Up to 4K @ 60fps (Dante supports up to 1080p 60fps)
- 12X, 20X or 30X Optical Zoom
- 72.5° (12X), 60.7° (20X), 59.2° (30X) FoV
- Available in White or Gray
- Broadcast Frame Rates SDI/HDMI
- RTSP, RTMP, RTMPS, RTP, Dante AV-H™,SRT
- RS-232, RS-485, PELCO-D/P, IR, VISCA, UVC
- Simultaneous USB 2.0 and IP Output
- Dante AV-H™ (Network Port), SDI, HDMI, SRT
- Standard PoE+ or 12VDC
- Line In, 3.5mm
- 5-Year Warranty
Main Specification
| General Information | |
| Manufacturer | PTZOptics |
| Manufacturer Part Number | PT20XLINK4KWH |
| Manufacturer Website Address | http://www.ptzoptics.com |
| Brand Name | PTZOptics |
| Product Name | Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | 4K |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/1.8" |
| Color Supported | Color |
| Field of View | 60.7° |
| Effective Camera Resolution | 8.4 Megapixel |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | SDI |
| Analog Video Signal Format | 3G-SDI |
| Lens | |
| Lens Type | Zoom |
| Lens Included | Yes |
| Optical Zoom | 20x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Ethernet |
| Protocols | SRT |
| Protocols | RTSP |
| Protocols | RTMPS |
| Protocols | RTMP |
| Protocols | RTP |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | PoE+ |
| Power Source Type | DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Miscellaneous | |
| Features | 3D Noise Reduction |
| Features | PTZ |
| Features | Wide Dynamic Range |
| Features | Auto Tracking |
| Warranty | |
| Limited Warranty | 5 Year |
