HANWHA TECHWIN
HANWHA TECHWIN ACE-8020R Wisenet A Series 5MP IR turret camera AHD / TVI / CVI / CVBS formats are available 5MP @ 30 FPS (CVI supports up to 4M) 3.6mm fixed focal lens FoV H: 94 / V: 54 DWDR IR distance 20m(65.6 ft) day & night IP67 IK10 12VDC Analog white.
Mfg Part Number: ACE-8020R , Item #: 5023111

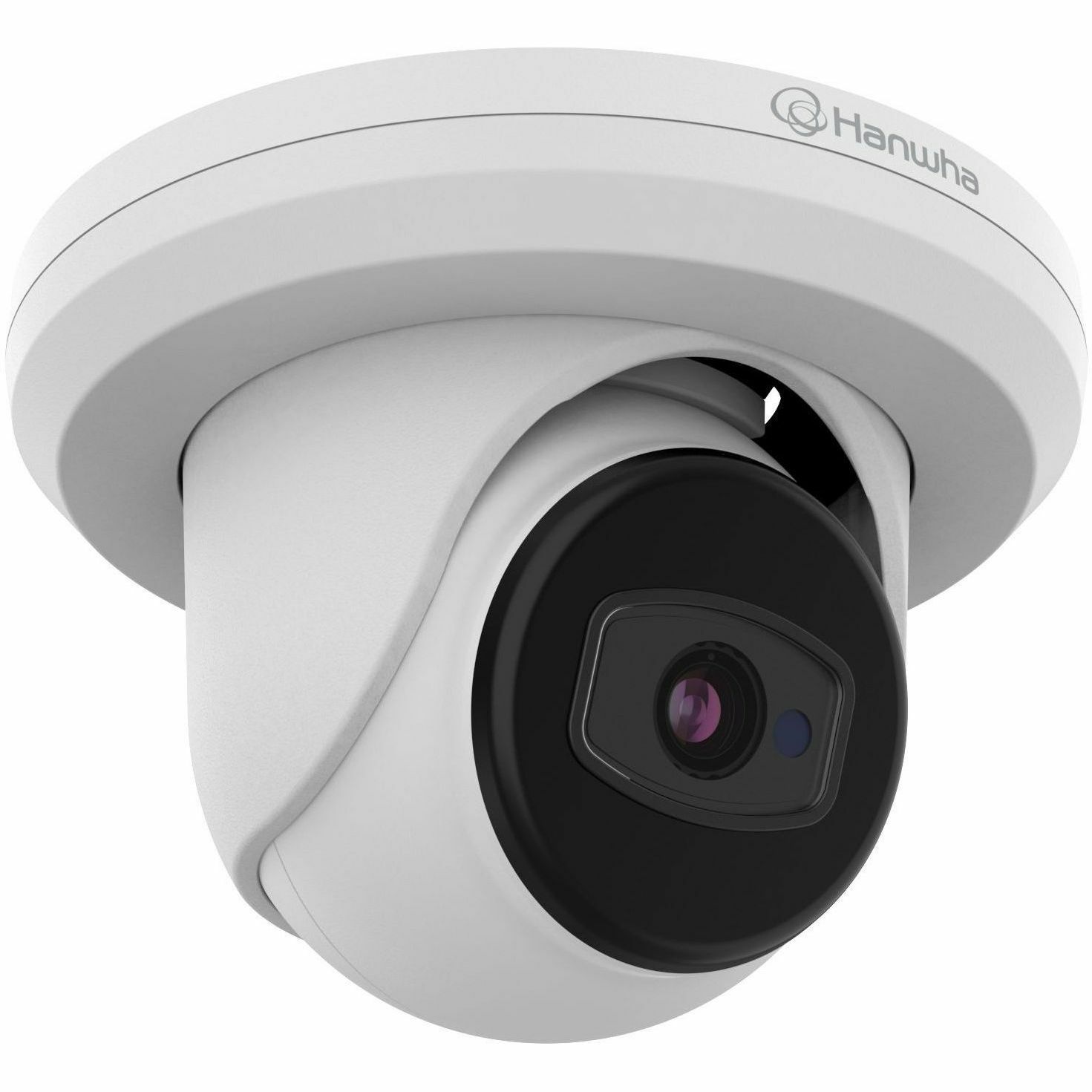

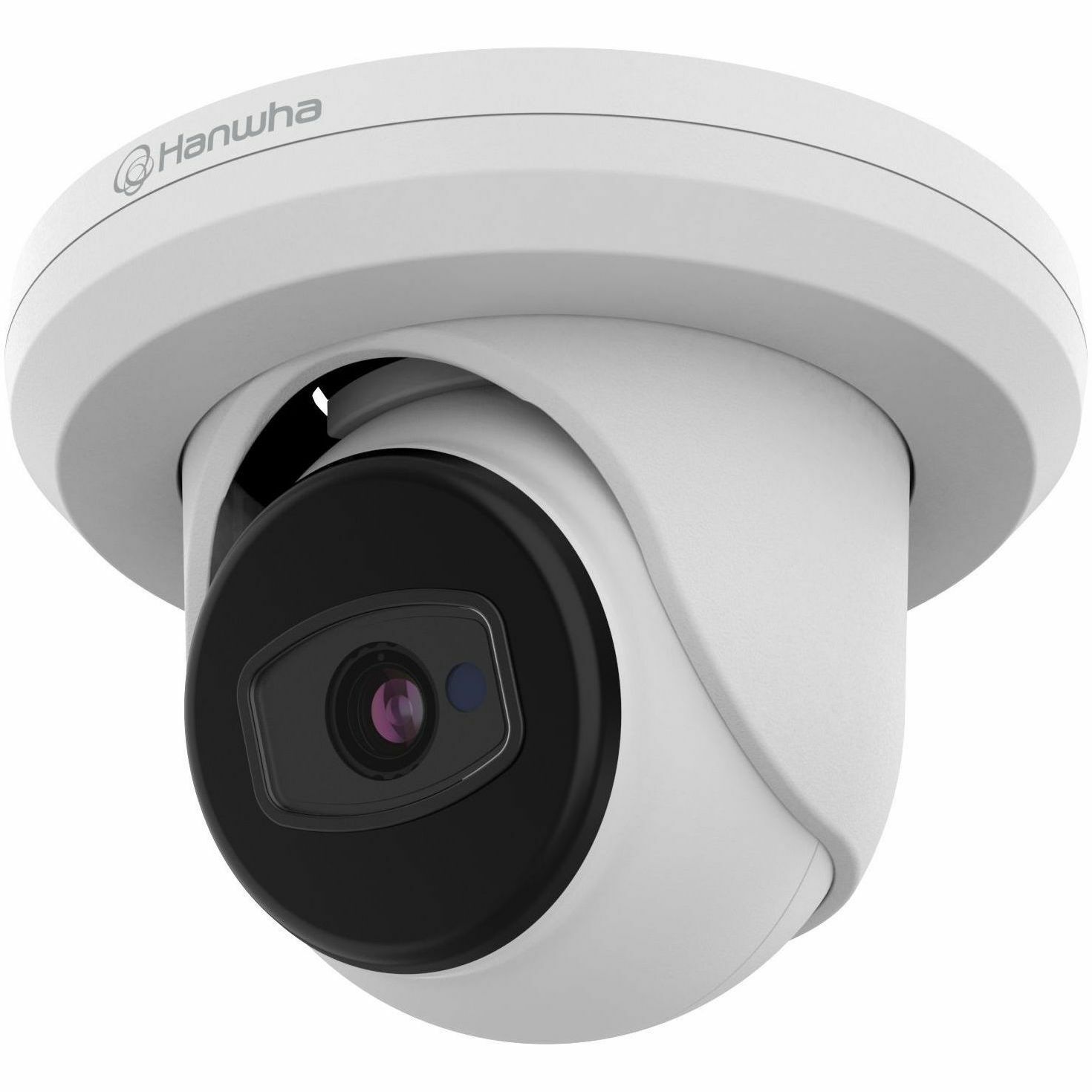

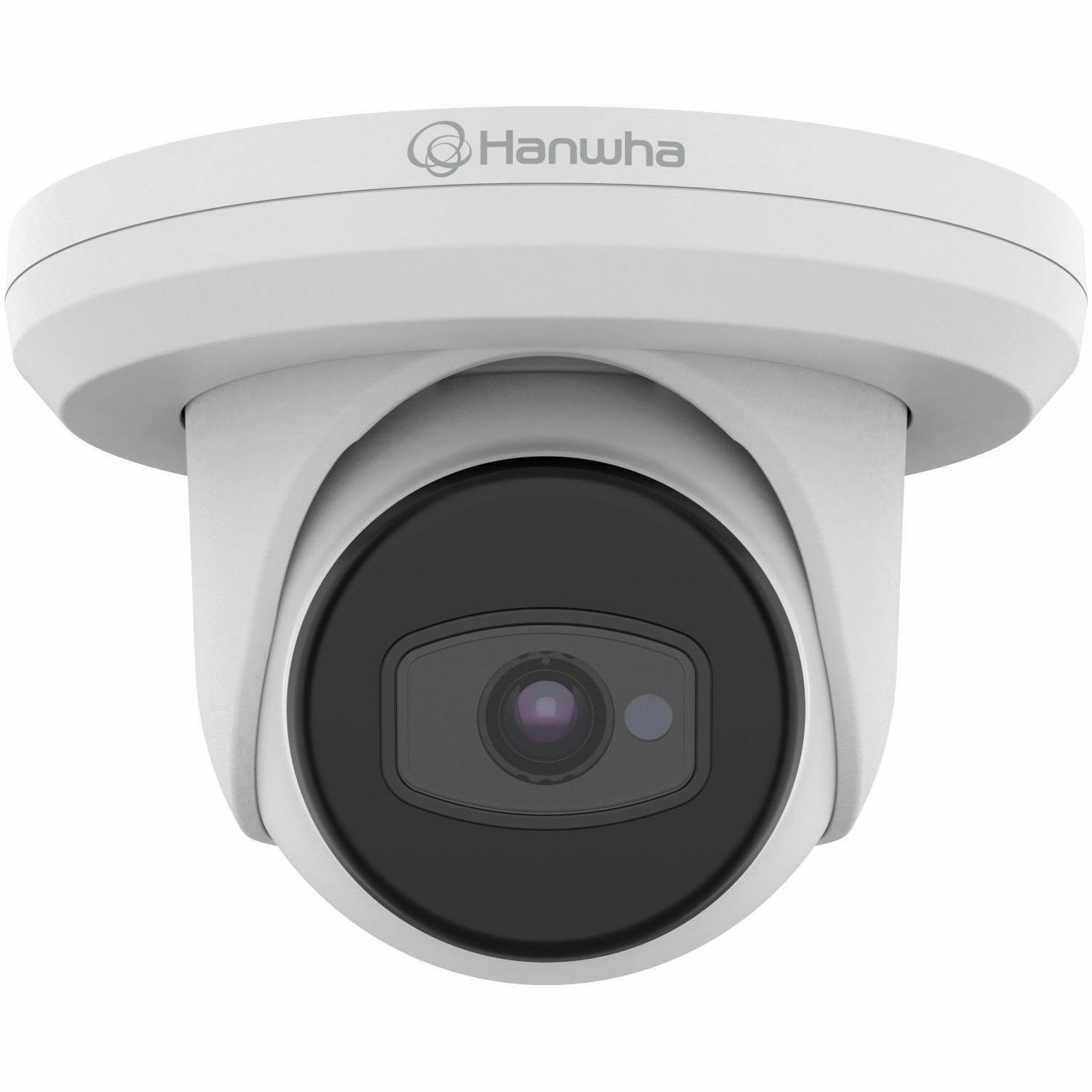

Image may not reflect the actual item.
Price: $122.93
+ Free Shipping
Quantity:
More to Come
Last Updated: Nov 07, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | ACE8020R |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | A |
| Product Model | ACE-8020R |
| Product Name | ACE-8020R 5MP Analog HD Flateye Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.5" |
| Color Supported | Color |
| Field of View | H:83.9°, V:63.4°, D:104° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | AHD |
| Analog Video Signal Format | TVI |
| Analog Video Signal Format | CVBS |
| Analog Video Signal Format | CVI |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.60 mm |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Network & Communication | |
| Connectivity Technology | Wired |
| Protocols | TCP |
| Remote Management | Yes |
| Power Description | |
| Maximum Power Consumption | 5.40 W |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Physical Characteristics | |
| Mount Type | Backbox Mount |
| Form Factor | Flateye |
| Color Family | White |
| Product Color | White |
| Diameter | 4.7" |
| Weight (Approximate) | 14.46 oz |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | White Balance |
| Features | Day/Night |
| Features | Mirror |
| Features | 2D Noise Reduction |
| Features | Wide Dynamic Range |
| Features | Ingress Protection |
| Features | 3D Digital Noise Reduction |
| Features | Digital Noise Reduction |
| Features | Built-in IR LED |
| Features | Gain Control |
| Features | Back Light Compensation (BLC) |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Country of Origin | Korea |
| Warranty | |
| Limited Warranty | 5 Year |
