BRAINBOXES

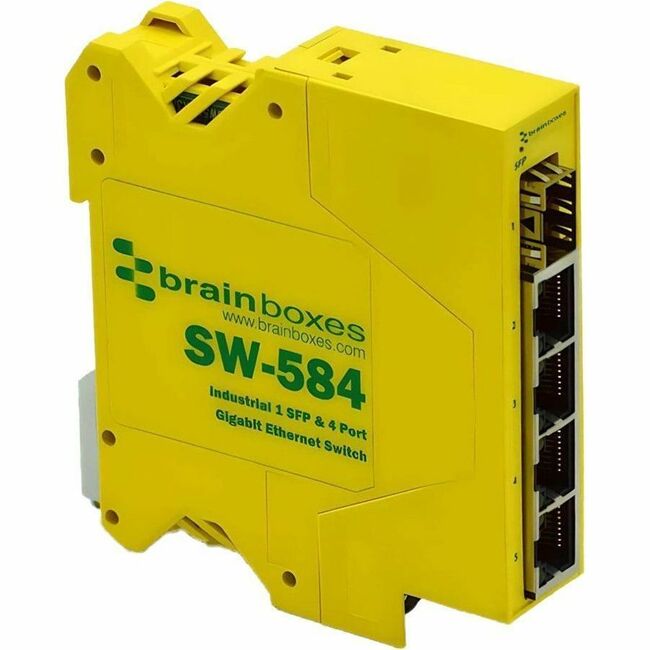

BRAINBOXES SW-584 INDUSTRIAL 1 SFP & 4 PORT GIGABIT ETHERNET SWITCH
Mfg Part Number: SW-584 , Item #: 5020817
Image may not reflect the actual item.
Price: $154.99
Quantity:
In Stock: 16
Last Updated: Sep 19, 2025
No Sales Tax except these states
, PO and Wire.
SFP & Industrial Gigabit Ethernet switch.
Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.
Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Main Specification
| General Information | |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW584 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Brand Name | Brainboxes |
| Product Model | SW-584 |
| Product Name | 1 SFP & 4 Port Gigabit Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | IP20 |
| Interfaces/Ports | |
| Total Number of Network Ports | 4 |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| Maximum Data Transfer Rate | 125 MB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 1.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| Input Voltage | 5 V DC |
| Input Voltage | 30 V DC |
| Power Source | USB |
| Power Source | Power Supply |
| Power Consumption | 3.60 W |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Form Factor | Compact |
| Height | 0.9" |
| Width | 3.9" |
| Depth | 3.7" |
| Weight (Approximate) | 3.84 oz |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Vehicle |
| Application/Usage | Network |
| Application/Usage | Industrial |
| Application/Usage | Factory |
| Application/Usage | Marine |
| Country of Origin | Great Britain |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
