ICY DOCK TOUGHARMOR MB834MK-B V2 2 BAY M.2 NVME SSD PCIE 4.0 MOBILE

ToughArmor MB834MK-B V2

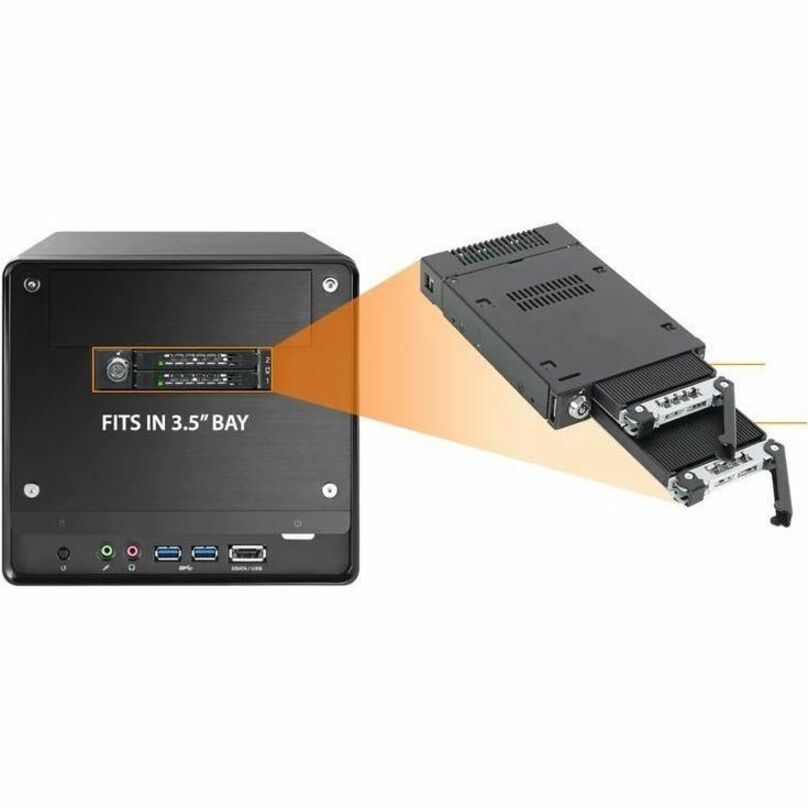

The ToughArmor MB834MK-B V2 is a Ruggedized Two Bay Removable M.2 NVMe SSD Enclosure that fits a single external 3.5" drive bay of the computer system and supporting PCIe 4.0 64Gb/s data transfer rates via SlimSAS 4i (SFF-8654) interface and accepts all standard M.2 drives lengths from 30mm to 110mm (2230, 2242, 2260, 2280, 22110). It simplifies the process of installing or removing M.2 NVMe SSD by using the removable drive trays with tool-less adjustable M.2 drive locker, making it easy to change drives at any time without open the computer case or dealing with drive mounting screws. In addition, while working together with numbers of ventilation holes around the enclosure, each drive tray is equipped with a high efficiency aluminum heat sink to ensure your SSDs are at optimal temperatures. As part of ICY DOCK's toughest line, the MB834MK-B V2 is made out of full metal construction with metal barrel key locks for maximum protection.

Now Compatible with Tri-Mode Controllers

Due to high demand and in response to recent circuit board updates by host card manufacturers, the ToughArmor MB834MK-B V2 now provides support for Tri-Mode controller cards from leading brands like Broadcom, Areca, and others. For detailed information on compatible cards and cables, please refer to the FAQ section available on the product page.

M.2 Drive is No Longer Hidden

The conventional approach to installing an M.2 drive involves mounting it on a motherboard or a riser card using a small screw, which can be a cumbersome and time-consuming task. Removing or installing the drive physically can be quite troublesome. Fortunately, ICY DOCK has introduced a game-changing solution - the ToughArmor MB834MK-B V2. This innovative product brings M.2 drives to the front of your computer case, streamlining the process of installing and removing M.2 NVMe SSDs. With the ToughArmor MB834MK-B V2, the once complicated procedure becomes much more straightforward and efficient.

State-of-art Tool-less M.2 Drive Installation

Typically, M.2 PCIe NVMe SSD drives are inserted at a 45-degree angle and secured to the motherboard using screws. However, with the ToughArmor MB834MK-B V2, this process is made much simpler. Users can effortlessly place the M.2 SSD in the drive tray, adjust the drive locker to fit the specific M.2 drive type, and then push down to lock it securely in place. This streamlined procedure takes less than five seconds to complete, eliminating the need for small, easy-to-lose screws and introducing a more efficient and innovative way of installing M.2 drives.

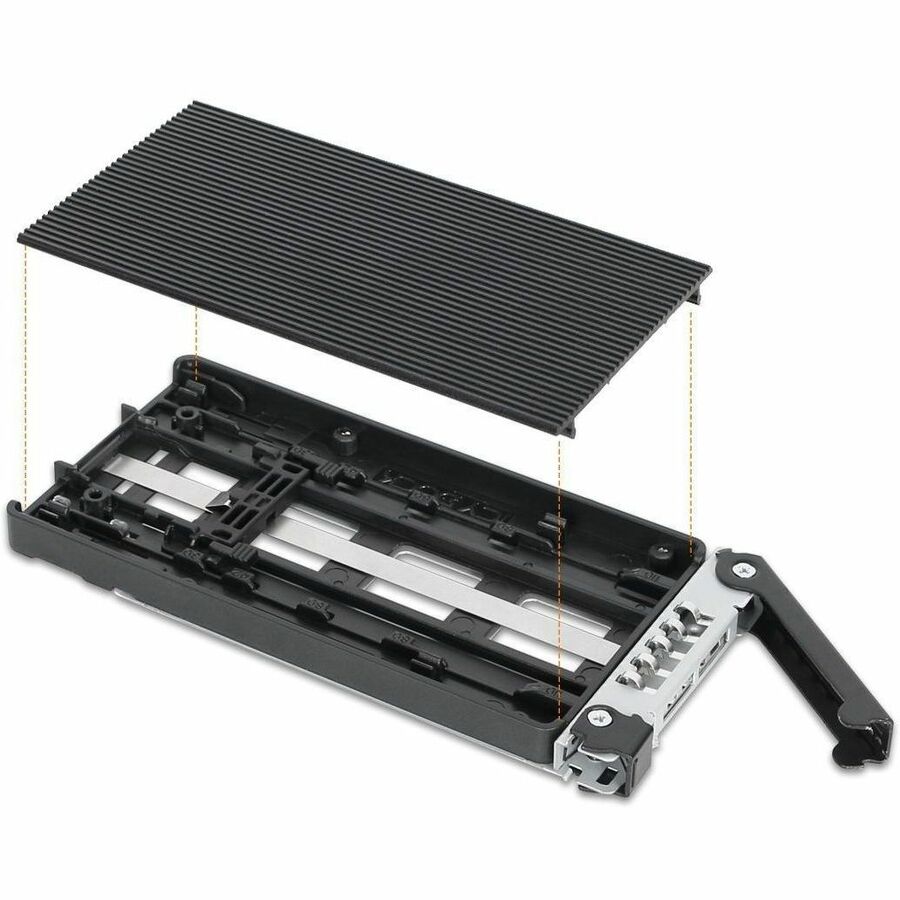

The ToughArmor MB834MK-B V2 offers a completely tool-less drive installation experience, extending to the extra-large high-efficiency aluminum heatsink as well. There is no need for any tools when installing or removing the heatsink. Just use your thumbs to press down on the two buttons located underneath the tray, and the heatsink will effortlessly pop out, allowing for easy removal. To reinstall it, simply cover the tray with the heatsink and apply a little downward force, and it will securely snap right back into place.

EMI Grounding Technology

Grounding your M.2 SSD is crucial, as swapping drives without proper grounding can lead to hardware damage from static shocks. Our innovative EMI Grounding Technology ensures that once the drive clips into the M.2 adjustable locker, it remains grounded through the tray, housing, and computer system, protecting your drives from static electrical surges during swapping.
