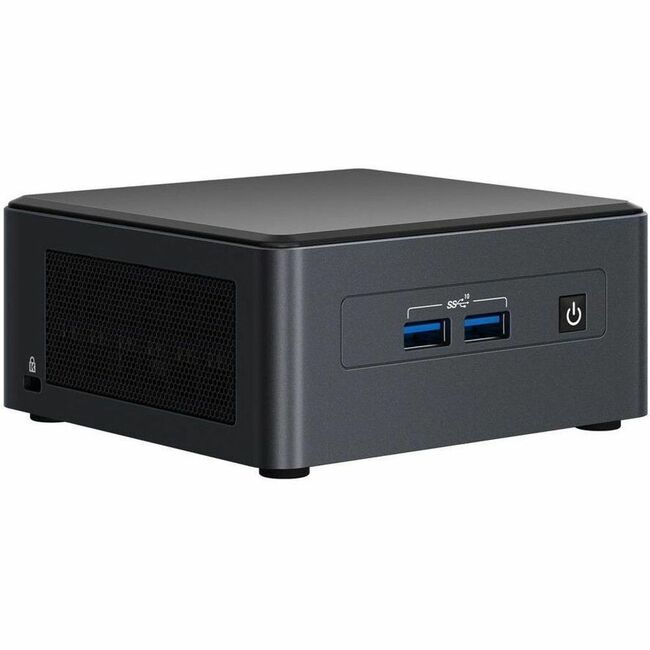

Image may not reflect the actual item.
Price: $399.72
+ Free Shipping
Quantity:
More to Come
Last Updated: Jun 23, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | BNUC11TNHI30001 |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus |
| Product Line | NUC 11 Pro |
| Product Model | NUC11TNHI3 |
| Product Name | NUC 11 Pro NUC11TNHI3 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Type | Core i3 |
| Processor Generation | 11th Gen |
| Processor Model | i3-1115G4 |
| Processor Core | Dual-core (2 Core) |
| Processor Speed | 1.90 GHz |
| Maximum Turbo Speed | 4.10 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Storage | |
| Supported Storage Drive Interfaces | PCI Express NVMe 4.0 |
| Supported Storage Drive Interfaces | Serial ATA |
| Supported Storage Drive Types | SSD |
| Supported Storage Drive Types | HDD |
| Controllers | |
| Controller Type | NVMe |
| Controller Type | Serial ATA |
| Display & Graphics | |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Number of Onboard USB 2.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of Thunderbolt 3 Ports | 1 |
| Number of Thunderbolt 4 Ports | 1 |
| Operating System | |
| Operating System Supported | Windows 10 IoT Enterprise |
| Operating System Supported | Windows 10 |
| Operating System Supported | Linux |
| Operating System Supported | Windows Server 2019 |
| Physical Characteristics | |
| Height | 2.1" |
| Width | 4.6" |
| Depth | 4.4" |
