KIOXIA

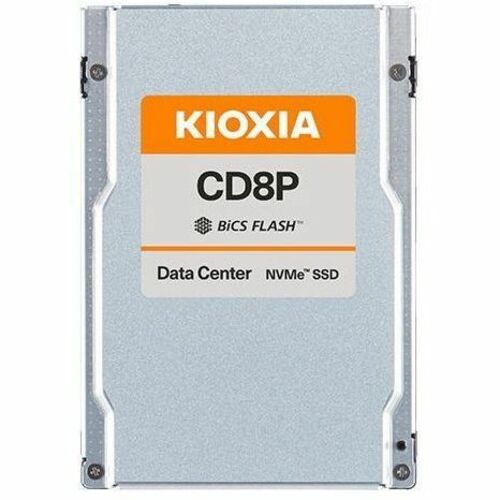

Kioxia SSD KCD8XPUG30T7 30.7T 2.5 PCIe5 CD8P-R SDF7280GEB 1 DWPD SIE Bare
Mfg Part Number: KCD8XPUG30T7 , Item #: 5017690
, PO and Wire.
KIOXIA CD8P-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe®5.0 (32 GT/s x4) interface, the CD8P-R Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 200K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe®4.0 SSDs (KIOXIA CD8-R Series).
Featuring KIOXIA BiCS FLASH™ generation 5 TLC flash memory, CD8P-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 30.72 TB, making them well-suited for hyperscale data center applications.
Key Features
- PCIe 5.0, NVMe™ 2.0 specification compliant
- Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
- Form factor: 2.5-inch, 15 mm thickness
- Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ generation 5 TLC flash memory
- Single-port design, optimized for data center class workloads
- Consistent performance and reliability for demanding 24x7 environments
- Designed for high-density storage deployments
- Power loss protection (PLP) and end-to-end data correction
- Security options: SIE, SED
| General Information | |
| Manufacturer | Toshiba |
| Manufacturer Part Number | KCD8XPUG30T7 |
| Manufacturer Website Address | http://www.toshiba.com |
| Brand Name | KIOXIA |
| Product Series | CD8P-R |
| Product Model | KCD8XPUG30T7 |
| Product Name | Data Center NVMe Read Intensive SSD |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 30 TB |
| Drive Performance | |
| Random 4KB Read | 1600000IOPS |
| Random 4KB Write | 150000IOPS |
| Endurance (DWPD) | 1 |
| Endurance Type | Read Intensive |
| Maximum Sequential Read | 9.77 GB/s |
| Maximum Sequential Write | 4.79 GB/s |
| Mean Time Between Failures (MTBF) | 28.5 Year |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 5.0 x4 |
| Physical Characteristics | |
| Color Family | Silver |
| Product Color | Silver |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Durability | Vibration Proof |
| Durability | Shock Resistant |
| Height | 0.6" |
| Width | 2.8" |
| Length | 4" |
| Weight (Approximate) | 4.59 oz |
| Miscellaneous | |
| Device Supported | Workstation |
| Device Supported | Data Center |
| Device Supported | Server |
