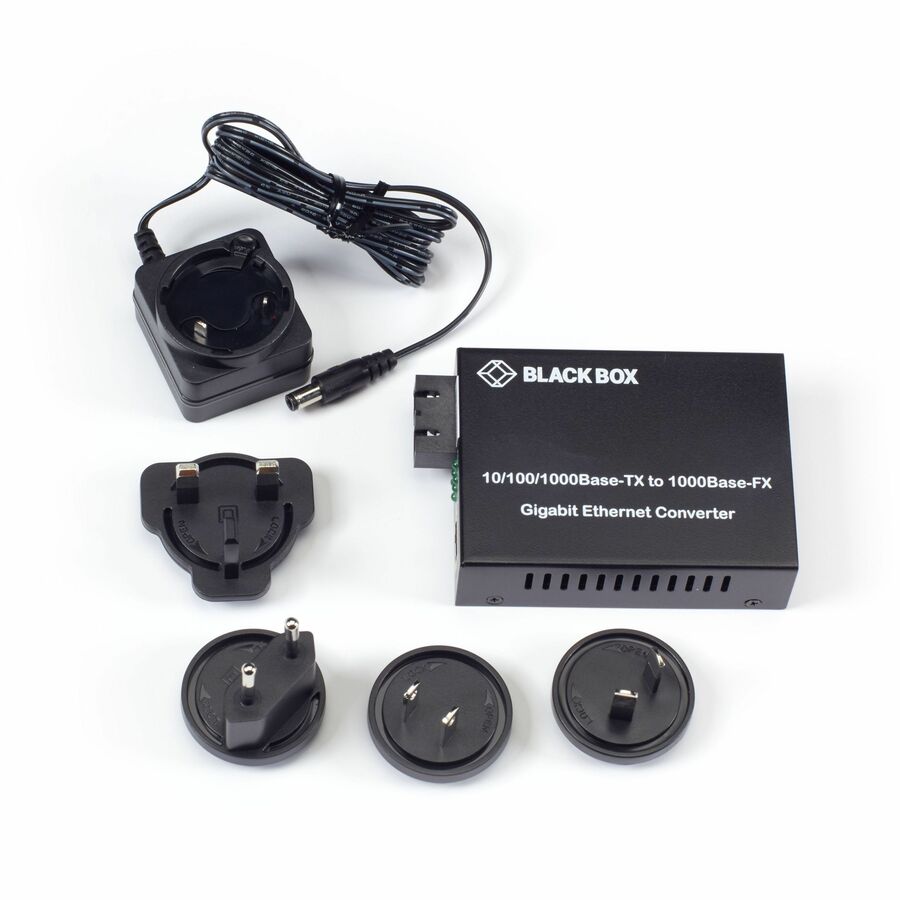

BLACK BOX LGC212A-R2 MEDIA CONVERTER 10/100/1000 ETHERNET SM 1310NM 20KM SC
Mfg Part Number: LGC212A-R2 , Item #: 5015909
Image may not reflect the actual item.
Price: $116.15
+ Free Shipping
Quantity:
In Stock: 27
Last Updated: Sep 09, 2025
No Sales Tax except these states
, PO and Wire.
10/100/1000BASE-TX to 1000BASE-LX
Meet the connectivity needs of your deployment. This media converter converts 10/100/1000BASE-TX to 1000BASE-LX. Includes broadcast storm control, flow control, and CRC error checking.
Auto-negotiation
Completely compatible with IEEE802.3/802.3u auto-negotiation function.
Complies with Standards
? The media converter meets EN60950, UL62368, and EN62368 standards.
Main Specification
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LGC212AR2 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | Pure Networking |
| Product Name | Pure Networking Transceiver/Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Distance Supported | 10 km |
| Fiber Optic Cable Core/Cladding Specification | 10/125 µm |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Optic Cable Core/Cladding Specification | 8.3/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-LX |
| Network Technology | 10/100/1000Base-TX |
| Power Description | |

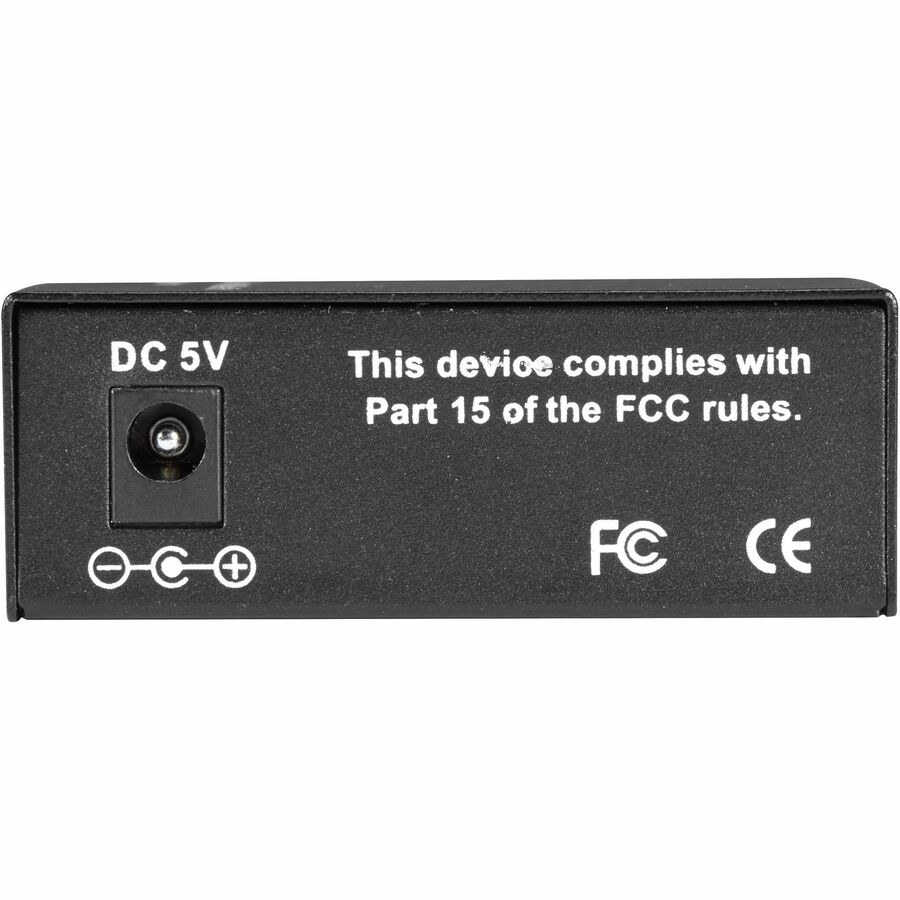

| Power Source | Power Adapter |
| Plug/Connector Type | Barrel |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Physical Characteristics | |
| Form Factor | Standalone |
| Form Factor | Rack-mountable |
| Height | 1" |
| Width | 3.7" |
| Depth | 2.7" |
| Weight (Approximate) | 11.20 oz |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Network |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Double Diamond Warranty (Standard) |
Media Converter Chassis
