- Plug and play out of the box
- 5 x 10/100 Mbps Ethernet ports
- Up to 40% GREENnet energy savings
- Up to 200 Mbps per port and total switching capacity of 1 Gbps
- Power saving GREENnet technology reduces power consumption by up to 40%
- NDAA compliant

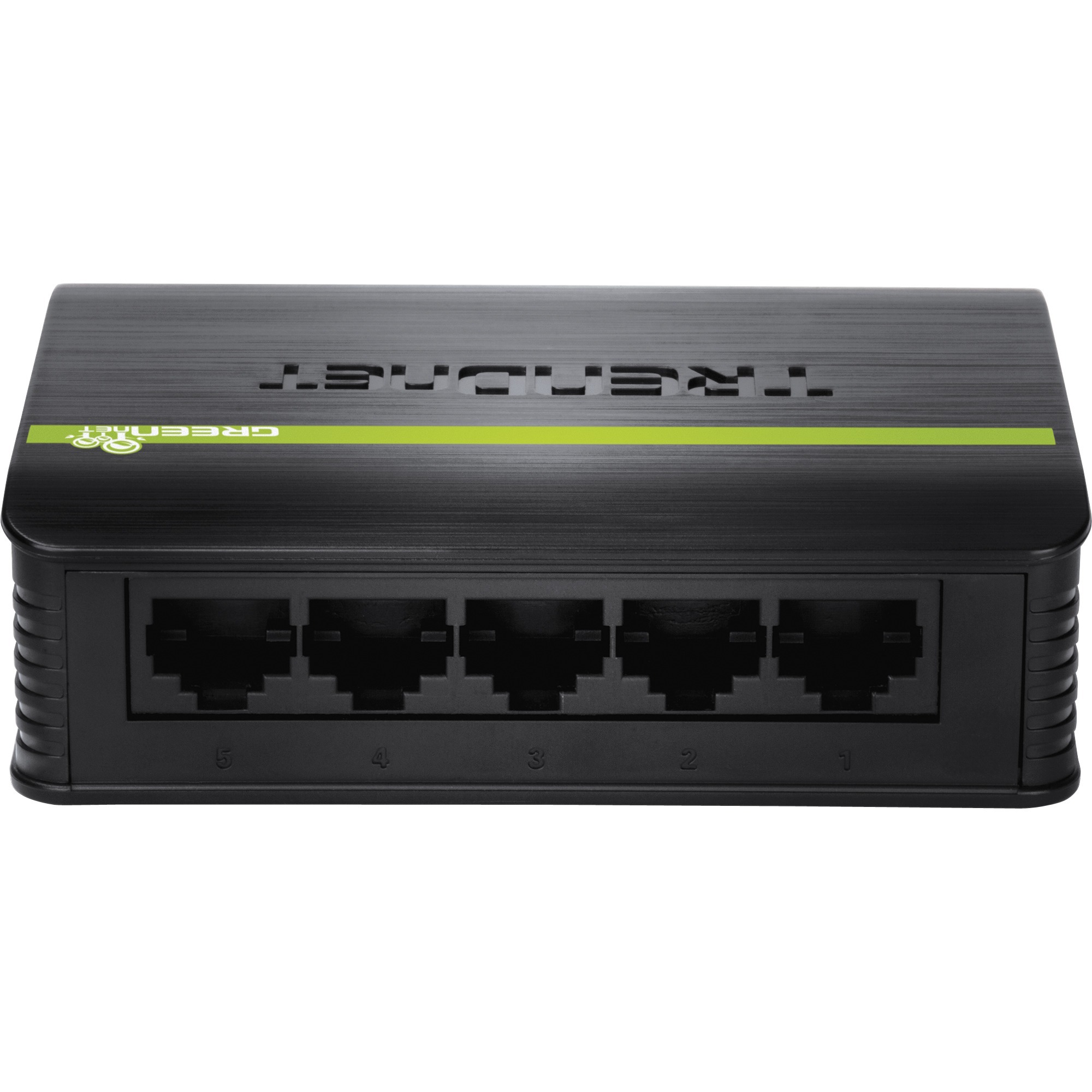

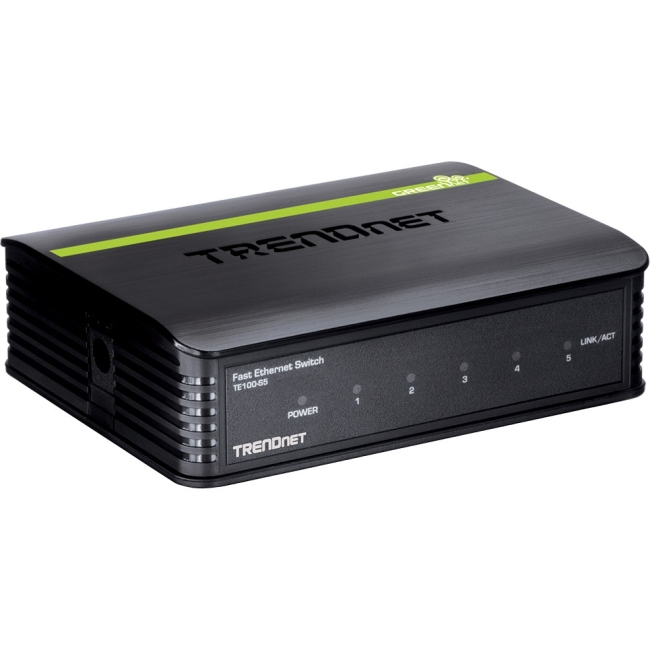

The compact 5-Port 10/100 Mbps GREENnet Switch, model TE100-S5, offers plug and play switching reliability and reduced power consumption. Embedded GREENnet technology reduced power consumption by up to 40% out of the box, with no management requirement. This switch offers speeds of up to 200 Mbps per port and total switching capacity of 1 Gbps.
PACKAGE CONTENTS
- TE100-S5
- Quick Installation Guide
- Power adapter (5 V, 0.6 A)
Main Specification
| General Information | |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TE100-S5 |
| Manufacturer Website Address | http://www.trendnet.com |
| Brand Name | TRENDnet |
| Product Model | TE100-S5 |
| Product Name | 5 Port 10/100Mbps Switch |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Number of Network (RJ-45) Ports | 5 |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5 |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10Base-T |
| Network Technology | 100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| Power Source | Power Adapter |
| Physical Characteristics | |
| Height | 2" |
| Width | 2" |
| Depth | 21" |
| Weight (Approximate) | 14.96 oz |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
Specifications
- Mfr Part Number: TE100-S5
- Features:
- IEEE 802.3x Flow Control support
- Provide 2K MAC address entries
- Compliant with Windows, Linux, and Mac Operating Systems
- Store-and-Forward Switching method
- Non-blocking Architecture
- Plug & Play
- Standards: IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.3x Flow Control
- Network Media:
- Ethernet: UTP/STP Cat. 3,4,5, EIA/TIA-568 100-ohm
- Fast Ethernet: UTP/STP Cat. 5. 5E, EIA/TIA-568 100-ohm
- Data Rate:
- Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)
- Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
- Switch Fabric: 1Gbps Forwarding Capacity
- Topology: Star
- Interface: 5x 10/100Mbps Auto-MDIX RJ-45 Ports
- Filtering Table: 2K entries per device
- Buffer Memory: 384 Kbits per device
- Power Consumption: 2.8 W (Max)
- Power Adapter: Switching Power- 5V DC 800mA; Linear Power- 7.5V DC 1A / 9V DC 600mA
- Certifications: CE, FCC
- Dimensions: 3.9 x 3.0 x 1.2 inch / 100.0 x 78.0 x 31.0 mm
- Weight: 4.5 oz / 128.0 g
- RoHS Compliant
