EIZO BY NANAO

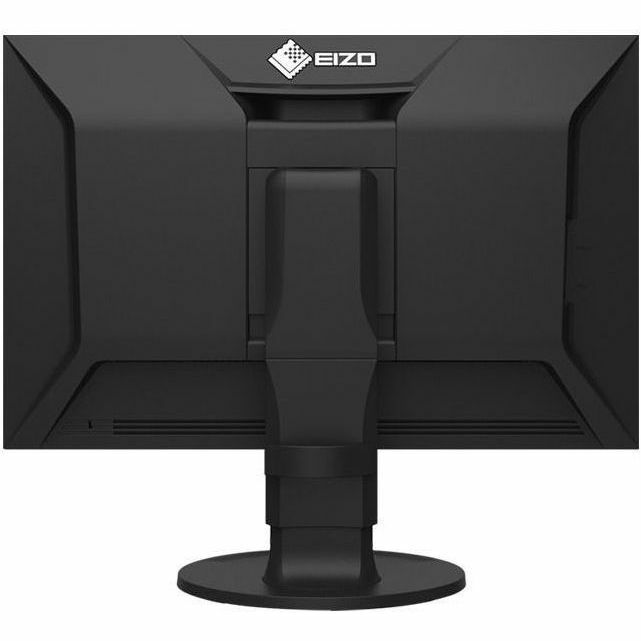

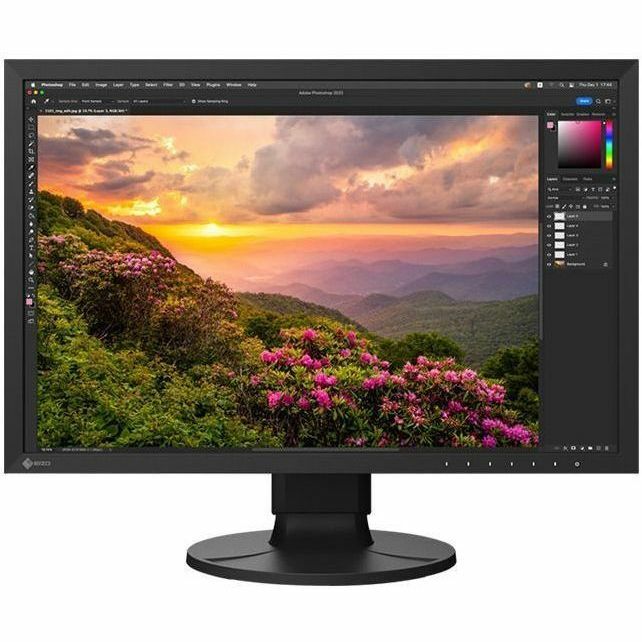

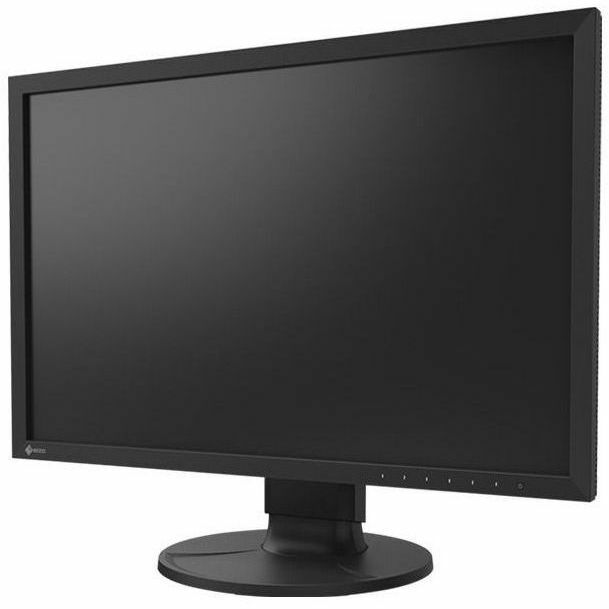

EIZO BY NANAO CS2400S-BK-CNX 24IN WIDE SCREEN WIDE COLOR GAMUT TFT IPS LCD EX4 CALIBRATION S
Mfg Part Number: CS2400S-BK-CNX , Item #: 4971743
, PO and Wire.
Single Cable Connection with USB Type-C
The ColorEdge CS2400S features USB Type-C connectivity that allows you to display video, transmit USB signals, and supply power to a connected device such as a tablet or notebook PC. This convenient multi-purpose connectivity makes it faster and easier to connect when moving between creative work areas or when working remotely or in a home studio.
70 W Power Delivery
The USB Type-C terminal reliably charges a connected tablet or laptop with 70 W power delivery. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on the desk.
ColorNavigator 7 Color Management Software
A monitor needs to be calibrated at regular intervals to maintain color accuracy. EIZO's proprietary ColorNavigator 7 software provides an intuitive and highly precise solution to color management. It allows you to calibrate all color modes simultaneously and supports a wide range of external sensors. Calibration information is saved to the monitor instead of the operating system so you do not have to recalibrate even when using a different PC.
Quick Color Match Software
Even with all the right equipment, color matching can be a tedious process - from monitor adjustment to determining the best retouch software and printer settings - achieving an accurate print takes a great deal of time. Quick Color Match greatly simplifies the process by automatically adjusting to the ideal monitor, retouching software, and printer settings so you can focus on editing your photos and print your work quickly and hassle-free. Simply drag and drop your photo in the Quick Color Match window to automatically start the process.| General Information | |
| Manufacturer | EIZO |
| Manufacturer Part Number | CS2400SBKCNX |
| Manufacturer Website Address | http://www.eizo.com |
| Brand Name | EIZO |
| Product Line | ColorEdge |
| Product Model | CS2400S-BK |
| Product Name | ColorEdge CS2400S 24.1" Color Management LCD Monitor |
| Product Type | LED Monitor |
| Technical Information | |
| Number of Screens | 1 |
| Screen Size Class | 24" |
| Viewable Screen Size | 24.1" |
| Screen Mode | WUXGA |
| Panel Technology | In-plane Switching (IPS) Technology |
| Response Time | 19 ms |
| Response Time Details | 19 ms GTG |
| Aspect Ratio | 16:10 |
| Pixel Pitch | 0.27000 mm x 0.27000 mm |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Mount Type | Desk Mountable |
| Backlight Technology | LED |
| HDCP Supported | Yes |
| Features | On-screen Display (OSD) |
| Features | Wide Color Gamut (sRGB) |
| Features | ErgoStand |
| Features | sRGB |
| Features | Ambient Lighting |
| Horizontal Frequency | 15 kHz to 76 kHz - HDMI |
| Horizontal Frequency | 26 kHz to 76 kHz - USB Type C |
| Vertical Frequency | 23 Hz to 61 Hz - HDMI |
| Vertical Frequency | 23 Hz to 61 Hz - DisplayPort |
| Stand Adjustments | Swivel |
| Stand Adjustments | Tilt |
| Stand Adjustments | Height |
| Stand Adjustments | Pivot |
| Active Display Area (H x V) | 20.41" x 12.76" |
| Video | |
| Maximum Resolution | 1920 x 1200 |
| Color Supported | 1.07 Billion Colors |
| Native Contrast Ratio | 1,350:1 |
| Brightness | 410 Nit |
| Color Gamut | 99% Adobe RGB |
| Pixel Per Inch (PPI) | 94 |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| DisplayPort | Yes |
| USB Type-C | Yes |
| Total Number of HDMI Ports | 1 |
| Number of USB Ports | 6 |
| Number of USB Type-B Ports | 1 |
| Number of DisplayPorts | 1 |
| Total Number of USB Type-C Ports | 1 |
| USB Type-B | Yes |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| Environmental Conditions | |
| Operating Temperature Range | 32°F (0°C) to 95°F (35°C) |
| Operating Humidity Range | 20% to 80% (Non-condensing) |
| Power Description | |
| Operating Power Consumption | 18 W |
| Standby Power Consumption | 300 mW |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Maximum Power Consumption | 149 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Color Family | Black |
| Product Color | Black |
| Height | 14.3" |
| Width | 21.8" |
| Depth | 2.5" |
| Height with Stand | 21.69" |
| Width with Stand | 21.83" |
| Depth with Stand | 9.65" |
| Compressed Height with Stand | 15.59" |
| Extended Height with Stand | 21.69" |
| Weight (Approximate) | 11.46 lb |
| Weight with Stand (Approximate) | 18.08 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
