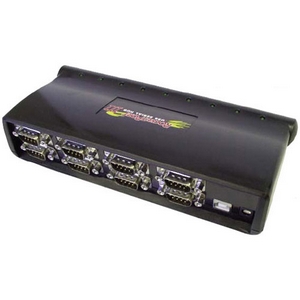

PEPPERL+FUCHS 98296-8 Comtrol RocketPort 8 Port USB Serial Hub III

The RocketPort USB Serial Hub III is a USB-attached 8-port serial expansion device for PC-based servers and client computers. Delivering eight RS-232 ports, the RocketPort USB Serial Hub III provides the ideal solution to easily add multiple serial ports for virtually any system application, including retail, industrial applications, POS, remote access, and data collection.

General Information
Manufacturer	Comtrol Corporation
Manufacturer Part Number	98296-8
Manufacturer Website Address	http://www.comtrol.com
Brand Name	Comtrol
Product Line	RocketPort
Product Name	RocketPort 8 Port USB Serial Hub III
Product Type	Serial Hub
Technical Information
Host Interface	USB
Data Transfer Rate	Up to 230.4kB/s Serial Port
Platform Supported	PC
Physical Characteristics
Form Factor	External
Warranty
Limited Warranty	2 Year

The RocketPort USB Serial Hub III is a USB-attached 8-port serial expansion device for PC-based servers and client computers. Delivering eight RS-232 ports, the RocketPort USB Serial Hub III provides the ideal solution to easily add multiple serial ports for virtually any system application, including retail, industrial applications, POS, remote access, and data collection. Expandable COM Ports for Any USB-Compliant System Whether using a USB-compliant server, desktop, or even a laptop computer, the RocketPort USB Serial Hub III provides "native" COM ports that deliver all of the performance of an in-system card, with speeds up to 230 Kbps, accessible by any application. As serial port needs grow, simply connect additional RocketPort USB Serial Hub III units for additional "native" serial ports! Serial Port Expansion as Easy as 1-2-3! Simply connect the RocketPort USB Serial Hub III, install a device driver, and go! Instant serial ports! No add-in cards to install, no DIP switch setting to worry about, no IRQ address conflicts, no I/O addresses to configure, no restarting of your computer. All that's left is to connect your serial device peripherals.

Device Type	Serial adapter - 8 ports
Form Factor	External
Interface (Bus) Type	USB
Width	7.9 in
Depth	3.6 in
Height	1.6 in
Networking
Connectivity Technology	Wired
Cabling Type	Serial
Data Link Protocol	RS-232
Data Transfer Rate	230 Kbps
Expansion / Connectivity
Interfaces	8 x serial - RS-232 - 9 pin D-Sub (DB-9)
Connections	1 x USB
Miscellaneous
Compliant Standards	FCC Class B certified, CE, UL, cUL, FCC Part 15 B, RoHS
Power
Power Device	Power adapter - external
Software / System Requirements
OS Required	Microsoft Windows 2000 / XP, Microsoft Windows Server 2003
Manufacturer Warranty
Service & Support	2 years warranty
Service & Support Details	Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	122 °F
Humidity Range Operating	20 - 80%
