AVerMedia SY NX213B-8GB BoxPC NVIDIA Jetson Xavier NX 8GB\xFFBrown box

Mfg Part Number:  NX213B-8GB
Image may not reflect the actual item.
Price: $1,460.67 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 26, 2025
No Sales Tax except these states
, PO and Wire.

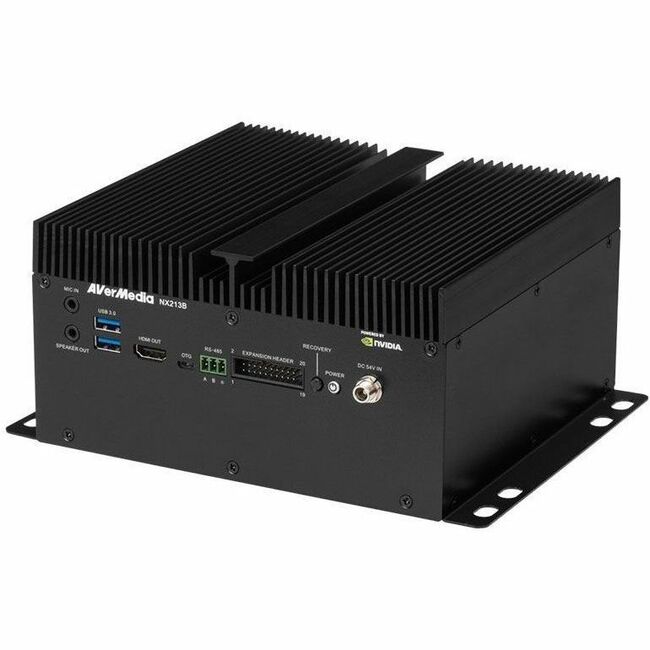

AVerMedia's NX213B Box PC of NVIDIA® Jetson Xavier™ NX is designed as an A.I. NVR (Network Video Recorder) for intelligent surveillance system.

This product provides 8-channel PoE (PSE) ports for IP cameras, a SATA port for storage, 1x mPCIe, 2x USB 3.0 , 1x microphone input, 1x speaker output, 1x RS-485 and 20-pin expansion header (I2C, SPI, UART, I2S), 1x HDMI 2.0 out. NX213B can operate in the temperature range from 0°C ~ 50°C.

Benefiting from the Jetson Xavier™ NX and DeepStream SDK, it can simultaneously decode and analyze 8-channel 1080p60 IP camera videos.

NX213B Box PC is designed as an application ready platform for multiple applications to improve the performance, flexibility and time to market. With NX213B, software developers not only can deploy their deep learning software on this system but also can market their software in a Box PC as a complete solution. This can greatly help simplify the efforts and processes of the system integration in launching their A.I. solution into the market faster.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

More from the Manufacturer

Main Specification
General Information
Manufacturer AVerMedia Technologies, Inc
Manufacturer Part Number NX213B8GB
Manufacturer Website Address http://www.avermedia.com
Brand Name AVerMedia
Product Model NX213B
Product Name Standard Box PC NX213B Equips NVIDIA® Jetson Xavier™NX Module
Product Type Video Surveillance System
Technical Information
Connectivity Technology Wired
Recording Formats 4K
HD Recording Yes
Video
Maximum Resolution 3840 x 2160
Network & Communication
Ethernet Yes
Remote Management Yes
Interfaces/Ports
USB Yes
USB Standard USB 2.0/3.0
Number of USB Ports 3
Network (RJ-45) Yes
HDMI Yes
Power Description
Input Voltage 54 V
Power Consumption 90 W
Physical Characteristics
Height 3.1"
Width 7.5"
Depth 6.9"
Weight (Approximate) 8.82 lb
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 122°F (50°C)
Miscellaneous
Additional Information

NVIDIA GPU SoC Module Compatibility

  • NVIDIA® Jetson Xavier™ NX 8GB module

    • Networking

  • 1x GbE RJ-45
  • 8x 10/100 MbE RJ-45 with PoE (Max for the first 4 ports is 15.4W and total power budget is 90W)

    • Display Output

  • 1x HDMI 2.0a/b Type-A supports maximum resolution 3840x2160 at 60Hz

    • Temperature

  • Operating Temperature 0°C ~ 50°C
  • Storage Temperature -40°C ~ 85°C
  • Relative Humidity 40 °C @ 95%, Non-Condensing

    • USB

  • 1x USB 2.0 Micro-B for recovery
  • 2x USB 3.0 Type-A (USB 3.2 Gen1 x 1)

    • Storage

  • 16GB e.MMC v5.1

    • GPIO Expansion

  • 1x 3.3V UART
  • 2x I2C
  • 9x GPIOs

    • Audio

  • 1x Mic in
  • 1x Speaker out

    • Input Power

  • 54V/2.78A

    • Buttons

  • Power and Recovery Button (Power button is green LED)

    • RTC Battery

  • Support RTC battery and Battery Life Monitoring by MCU

    • Certifications

  • CE, FCC,KC

    		•
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS) 2
