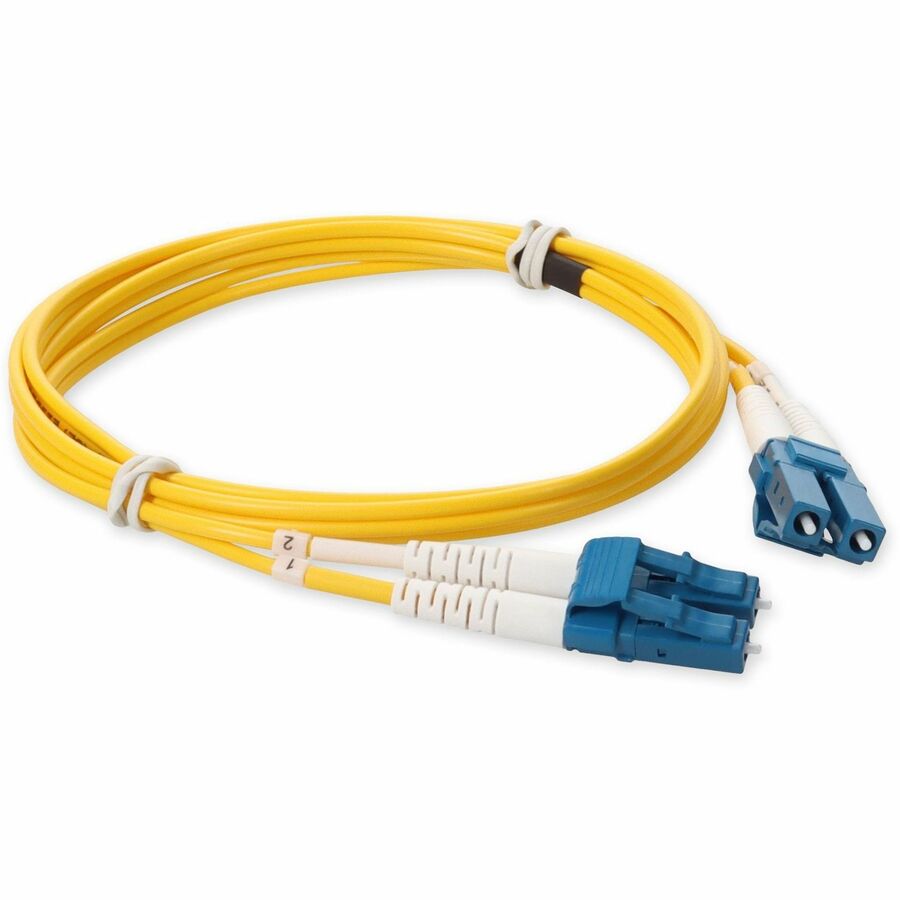

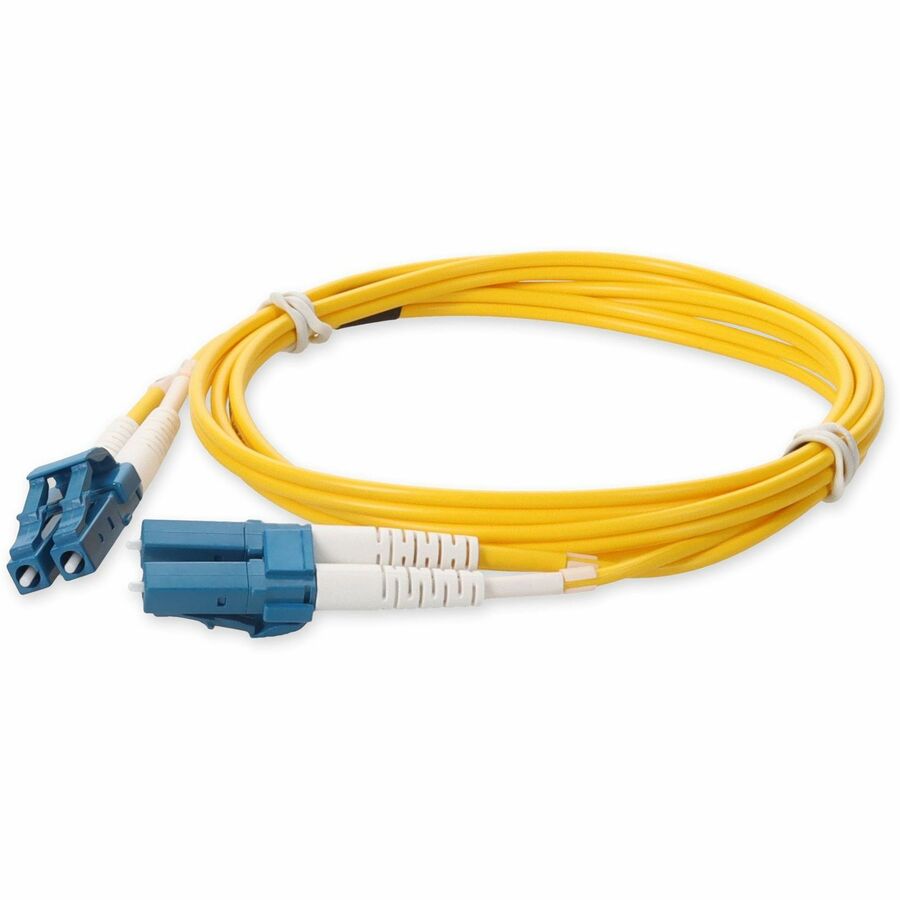

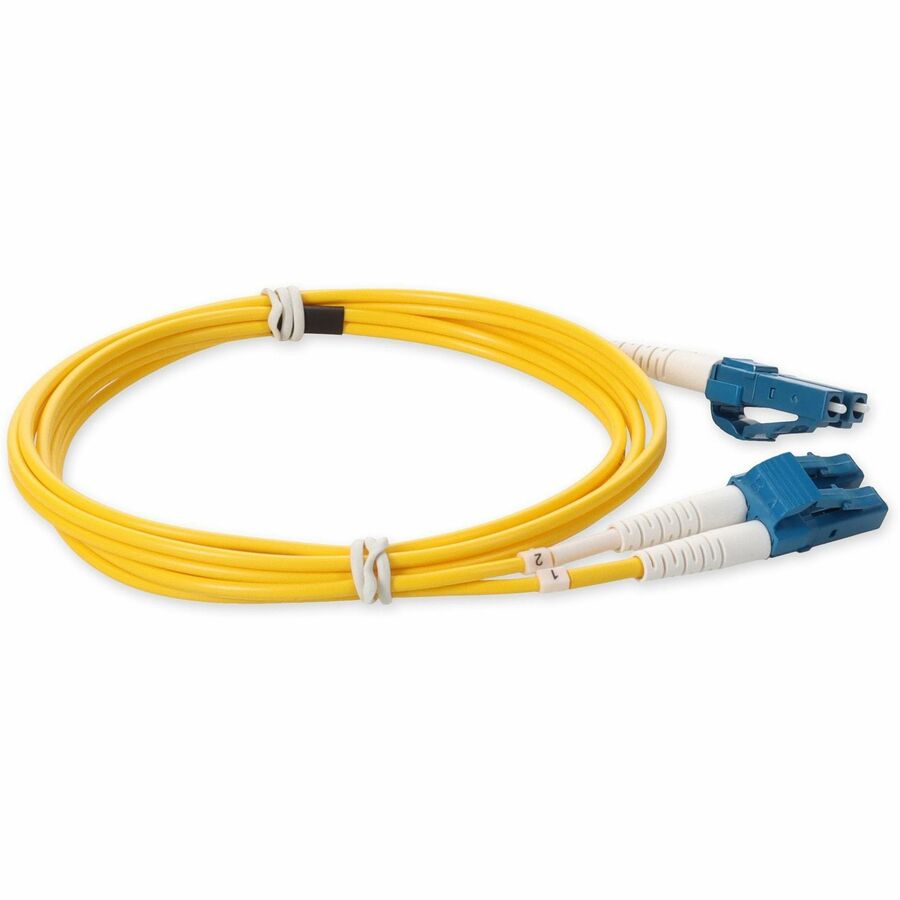

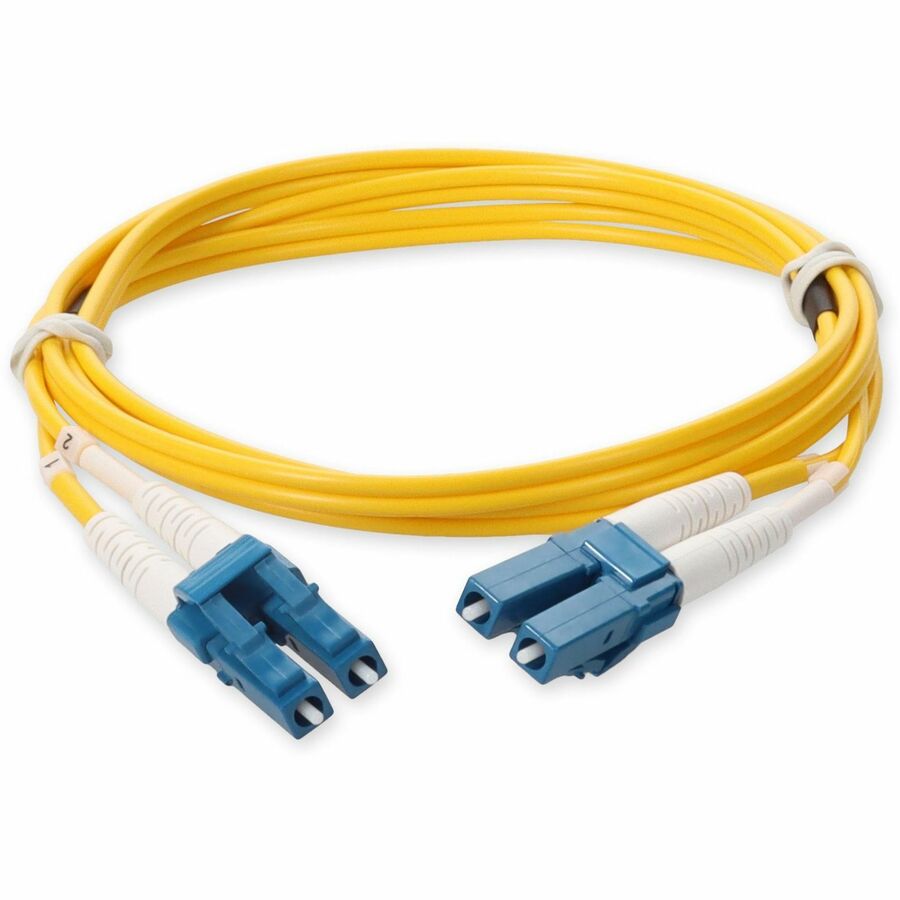

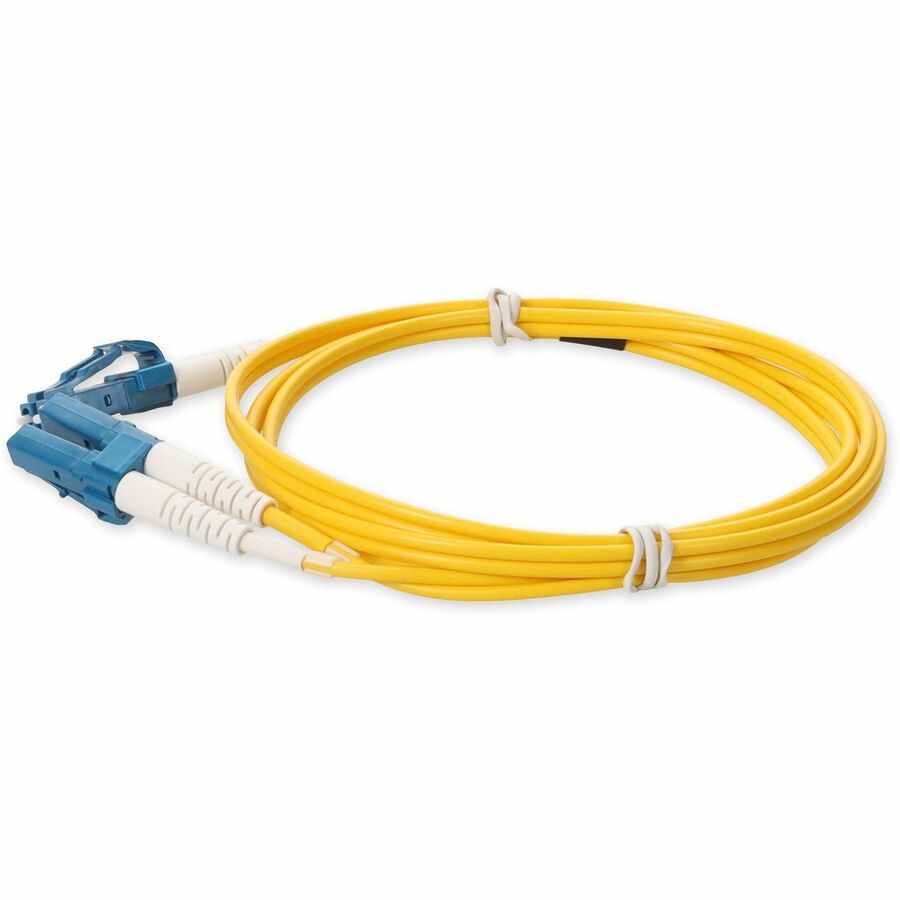

AddOn ADD-LC-LC-7M9SMFP-TAA 7M LC TO LC YELLOW OS2 DUPLEX OFNP (PLENUM-RATED) TAA SMF FIBER PATCH CABLE

This is a 7.0m (23ft) LC (male) to SC (male) yellow OS2 duplex plenum-rated patch straight cable that is used for high speed data transfer. OS2 is a standard single-mode optical fiber commonly used with wavelengths of 1310nm and 1550nm (9/125 microns), and has a maximum attenuation of 1dB/km. The OS2 standard is defined in ISO/IEC 11801. Plenum-rated cables must self-extinguish and prevent re-ignition. Duplex cabling provides two-strands of fiber and is most commonly used in applications that utilize one lane to transmit and one lane to receive. This patch cable is Trade Agreements Act (TAA) compliant. Our patch cables are 100% compliant for all of your networking needs and are guaranteed by federal law to not affect or void OEM warranties.

General Information
Manufacturer	AddOn
Manufacturer Part Number	ADD-LC-LC-7M9SMFP-TAA
Manufacturer Website Address	http://www.addoncomputer.com
Brand Name	AddOn
Product Name	Fiber Optic Duplex Patch Network Cable
Packaged Quantity	1.0
Product Type	Network Cable
Technical Information
Cable Type	Fiber Optic
Cable Characteristic	Patch Cable
Cable Configuration	Straight-through
Fiber Optic Mode	Single-mode
Fiber Type	Duplex
Fiber Optic Cable Core/Cladding Specification	9/125 µm
Cable Length	22.97 ft
Connector Type on First End	LC Network - Male
Connector Gender on First End	Male
Connector on First End Details	2 x LC Network - Male
Connector Type on Second End	LC Network - Male
Connector Gender on Second End	Male
Connector on Second End Details	2 x LC Network - Male
Jacket Type	Plenum
Device Supported	Network Device
Features	Ultra Physical Contact (UPC)
Features	Stranded
Physical Characteristics
Color Family	Yellow
Product Color	Yellow
Miscellaneous
TAA Compliant	Yes
