MSI Z790EDGETIMAXWIFI MPG Z790 EDGE TI MAX WIFI ATX/DDR6/192GB
Mfg Part Number: Z790EDGETIMAXWIFI , Item #: 4965607
Image may not reflect the actual item.
Price: $457.96
+ Free Shipping
Quantity:
More to Come
Last Updated: May 14, 2025
No Sales Tax except these states
, PO and Wire.
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation

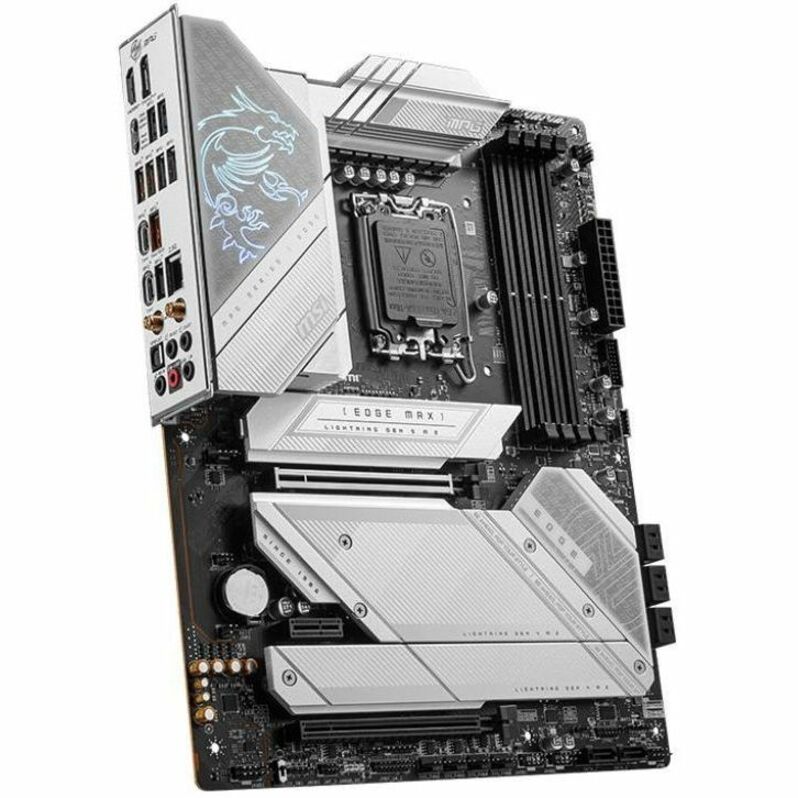

MPG Z790 EDGE TI MAX WIFI is covered with a silver-white color scheme for white PC build lovers to show off different personalities. It is also powerful because it features Wi-Fi 7 solution, an optimized DDR5 circuit, and the latest PCIe 5.0 M.2 with Screwless M.2 Shield Frozr, and this is the best white Z790 ATX motherboard for Intel® next Gen and 13th Gen Core processors.
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
Extended Heatsink- Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
- Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
- Keeps M.2 SSDs safe while preventing throttling, making them run faster.
- High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
- Double-sided M.2 Shield Frozr and Enlarged heatsink desing keep PCIe 5.0 M.2 SSD safe while preventing throttling.
- The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
Main Specification
| General Information | |
| Manufacturer | MSI |
| Manufacturer Part Number | Z790EDGETIMAXWIFI |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | MPG |
| Product Model | MPG Z790 EDGE TI MAX WIFI |
| Product Name | MPG Z790 EDGE TI MAX WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen |
| Processor Generation Supported | 13th Gen |
| Processor Supported | Core |
| Processor Supported | Pentium Gold |
| Processor Supported | Celeron |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 192 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 7200 MHz |
| Memory Speed Supported | 6400 MHz |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 5400 MHz |
| Memory Speed Supported | 6600 MHz |
| Memory Speed Supported | 6000 MHz |
| Memory Speed Supported | 5800 MHz |
| Memory Speed Supported | 7800 MHz |
| Memory Speed Supported | 5000 MHz |
| Memory Speed Supported | 7600 MHz |
| Memory Speed Supported | 7000 MHz |
| Memory Speed Supported | 6800 MHz |
| Memory Speed Supported | 5200 MHz |
| Memory Speed Supported | 7400 MHz |
| Memory Speed Supported | 6200 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 1 |
| RAID Levels | 10 |
| RAID Levels | 5 |
| RAID Levels | 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 3.2 Gen 1 Type-A Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Number of M.2 Interfaces | 5 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous | |
| Package Contents |
|
