MOBILE MARK SMW-305-3C3J2C-BLK-180 694-894/1700-2700 MHZ = 15FT LL-195 SMA,2.4-2.5/4.9-6 GHZ = 15FT LL-195 REV. POL
Mfg Part Number: SMW-305-3C3J2C-BLK-180 , Item #: 4964469
, PO and Wire.
The SMW-305 Series Antennas features 3-elements in one antenna radome. The unique feature of this model is that the cellular element (Cable 1) is extremely widebanded and can cover: LTE at 700 MHz as well as the established 850/1900 GSM/CDMA bands, 1.7/2.1 AWS bands and WiMAX 2.5 all on a single board.
This antenna is truly ready for any 4G rollout but is also compatible with earlier generation such as GPRS. See the spec table below for exact frequencies covered on each cable.
In additional to covering all of the cellular bands on the first antenna element, the antenna also covers 2.4/5 dual-band WiFi on the second antenna element. Alternatively, the second element can be used for other specialized applications such as: Public Safety coverage at 4.9 GHz, Military at 4.4 GHz or DSRC at 5.9 GHz.

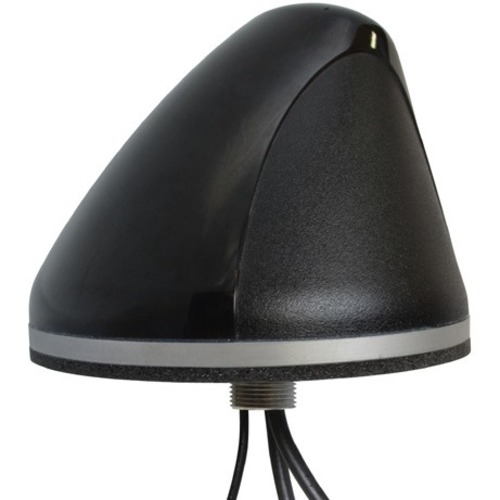

The antenna is enclosed in a 4.2"D x 3.2"H (107 mm x 81 mm) weatherproof radome, and supplied with all mounting hardware and a sealing gasket. The radome is available in either black or white.
The antenna is available in either surface mount (SMW Series) or mag mount (MGW Series).
| General Information | |
| Manufacturer | Mobile Mark, Inc |
| Manufacturer Part Number | SMW305-3C3J2C-BLK-180 |
| Manufacturer Website Address | http://www.mobilemark.com |
| Brand Name | Mobile Mark |
| Product Series | SMW-305 |
| Product Model | SMW305-3C3J2C-BLK-180 |
| Product Name | SMW305-3C3J2C-BLK-180 Antenna |
| Product Type | Antenna |
| Technical Information | |
| Operating Frequency Range | 4.9 GHz to 6.0 GHz |
| Operating Frequency Range | 2.4 GHz to 2.5 GHz |
| Operating Frequency Range | 694 MHz to 894 MHz |
| Operating Frequency Range | 1575.42 MHz |
| Operating Frequency Range | 1700 MHz to 2700 MHz |
| Antenna Gain | 26 dB |
| Interfaces/Ports | |
| Connector Type | SMA |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.20" |
| Diameter | 4.20" |
| Form Factor | Surface Mount |
| Weight (Approximate) | 15.87 oz |
| Miscellaneous | |
| Application/Usage | Cellular Network |
| Application/Usage | Wireless Data Network |
| Application/Usage | GPS |
