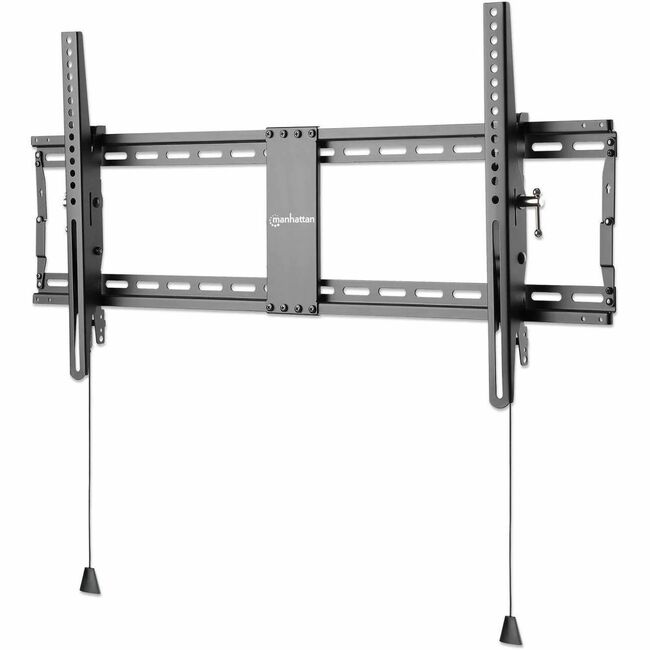

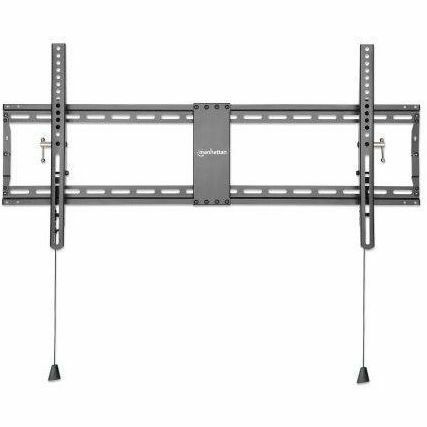

Slim Heavy-Duty Foldable Tilting TV Wall Bracket - adjustable mounting bracket that puts displays in the right perspective and avoids annoying glare

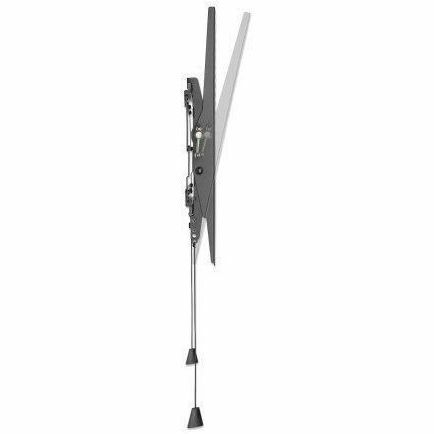

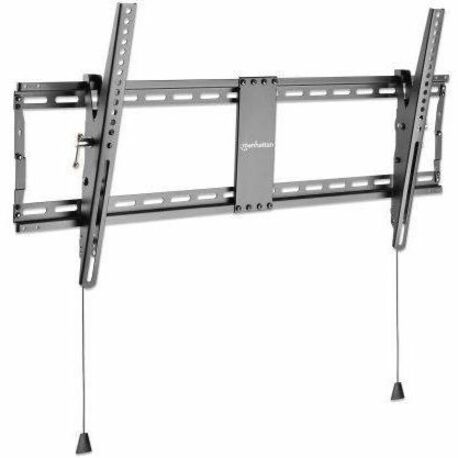

This tilting TV Wall Mount from Manhattan safely holds your TV and offers a toolless +3 to -12° tilt adjustment with the turn of a knob for optimized views. Constructed of 2 mm thick reinforced powder-coated steel, it fits flat and curved LCD, OLED or plasma TVs up to 100" and weighing up to 70 kg (154 lbs.) with VESA compliance up to 800x400. You're all set for a confident above-the-floor installation with an included bubble level that helps get the mount perfectly horizontal on the wall, and intuitive snap-in spring locks with release cords let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications. An anti-theft opening allows you to attach a padlock to prevent your valuable display from being removed and stolen.
Foldable, shipping-friendly design
The mount can be folded into a more compact shape that we ship in extra-small, space-saving packaging.
| General Information | |
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 462020 |
| Manufacturer Website Address | http://www.icintracom.com |
| Brand Name | Manhattan |
| Product Name | Low-Profile Tilting TV Wall Mount |
| Package Type | Retail |
| Product Type | Mounting Bracket |
| Product Information | |
| Device Supported | TV |
| Device Supported | OLED Monitor |
| Device Supported | Display |
| Device Supported | Flat Panel Display |
| Device Supported | LCD Display |
| Device Supported | Plasma TV |
| Device Supported | Curved Screen Display |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 154.32 lb |
| Minimum Screen Size Supported | 43" |
| Maximum Screen Size Supported | 100" |
| Features | Tool-less Adjustment |
| Features | Tilt |
| Features | Foldable |
| Features | Heavy Duty |
| Features | Anti-theft |
| Features | Bubble Level |
| Features | Easy to Install |
| Features | Padlock |
| Features | Compact |
| Features | Spring Lock |
| Features | Reduced Glare |
| Orientation | Horizontal |
| Mount Profile | Low Profile |
| Minimum Tilt Angle | -12° |
| Maximum Tilt Angle | 3° |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Mounting Pattern | 400 x 200 |
| Mounting Pattern | 300 x 300 |
| Mounting Pattern | 300 x 200 |
| Mounting Pattern | 400 x 400 |
| Mounting Pattern | 800 x 400 |
| Mounting Pattern | 400 x 300 |
| Mounting Pattern | 200 x 200 |
| Product Material | Steel |
| Form Factor | Wall Mountable |
| Height | 1.93" |
| Width | 35.04" |
| Length | 16.97" |
| Weight (Approximate) | 5.82 lb |
| Miscellaneous | |
| Application/Usage | Classroom |
| Application/Usage | Office |
| Application/Usage | Conference Room |
| Application/Usage | Digital Signage |
| Application/Usage | Residential |
| Application/Usage | Hospitality |
| Application/Usage | Commercial |
