RARITAN

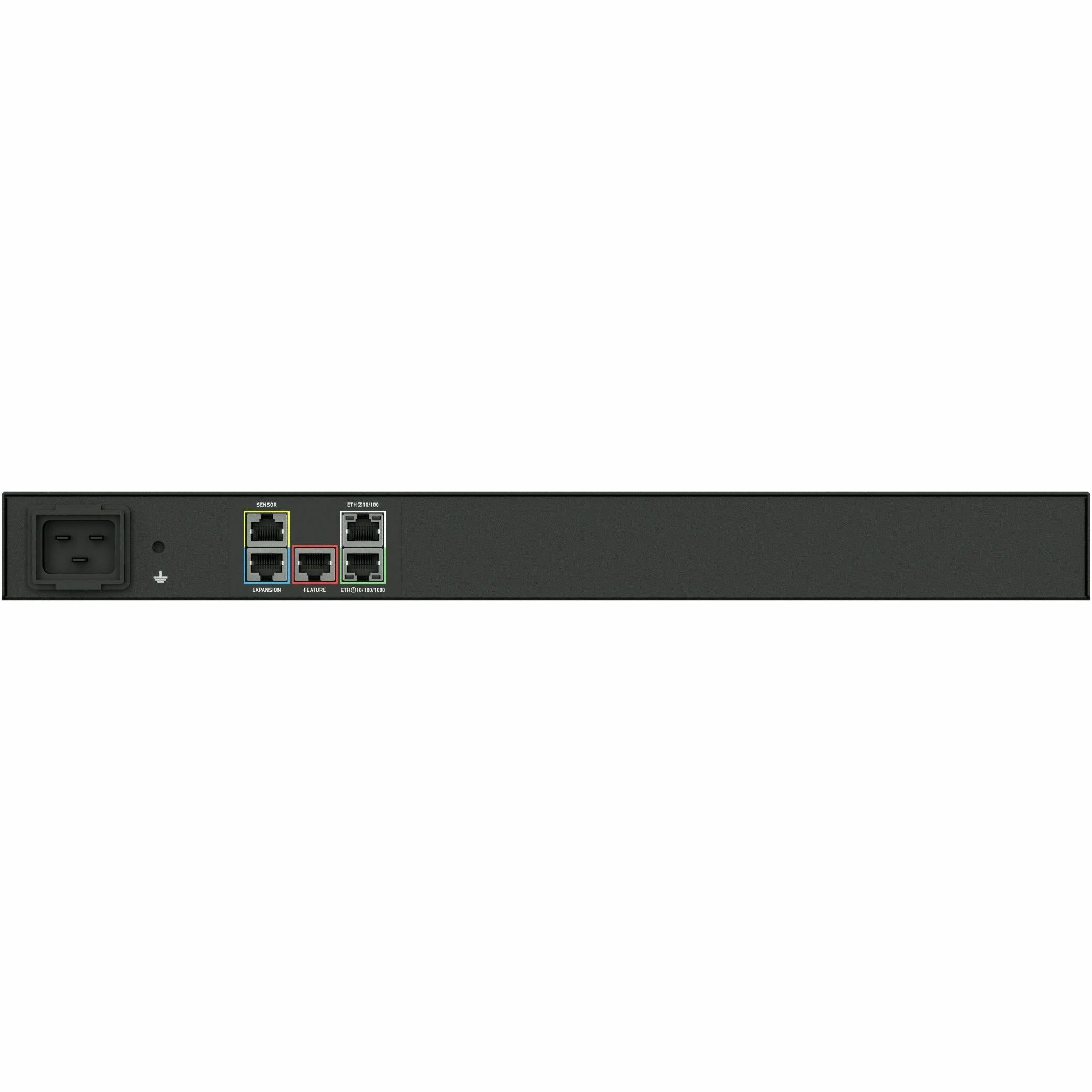

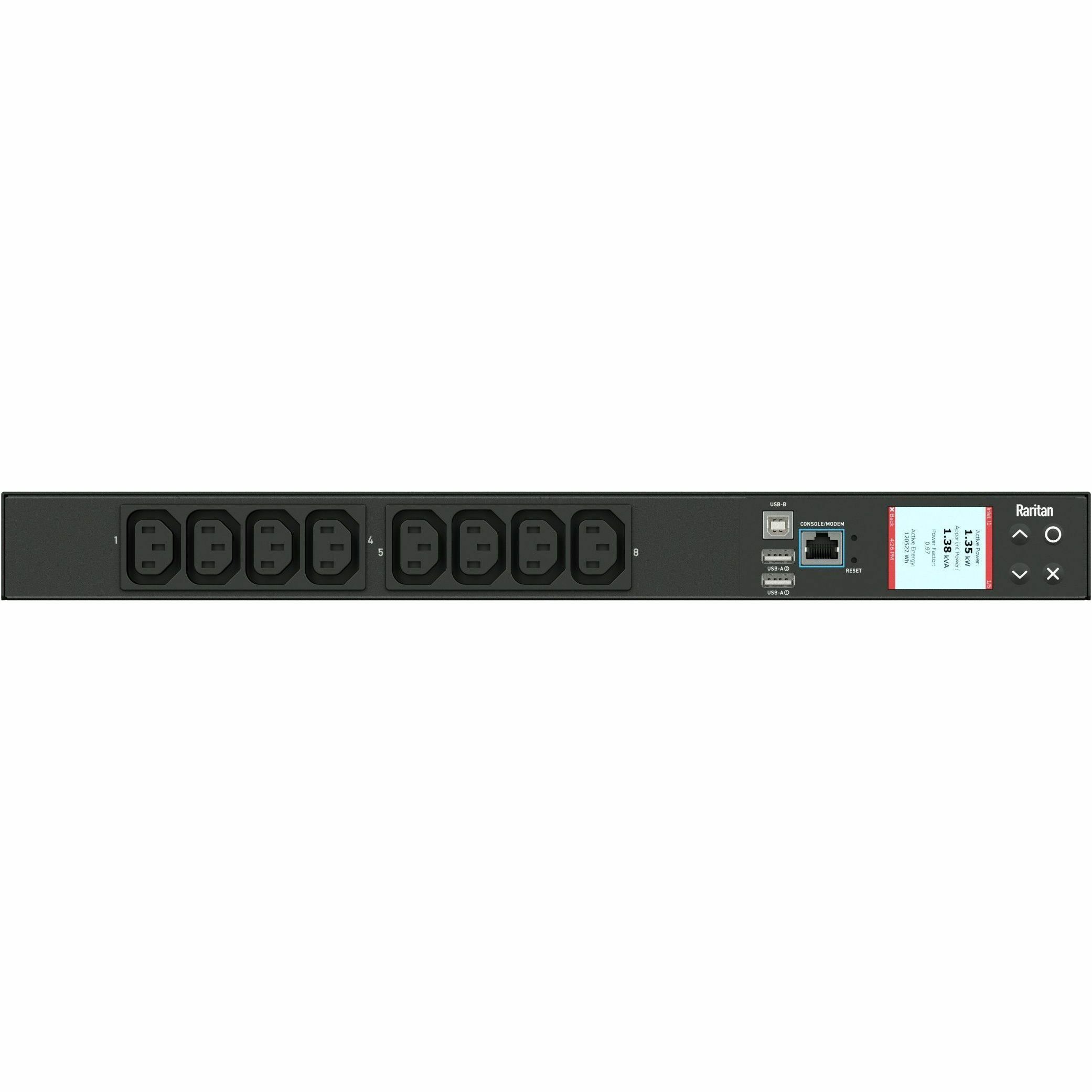

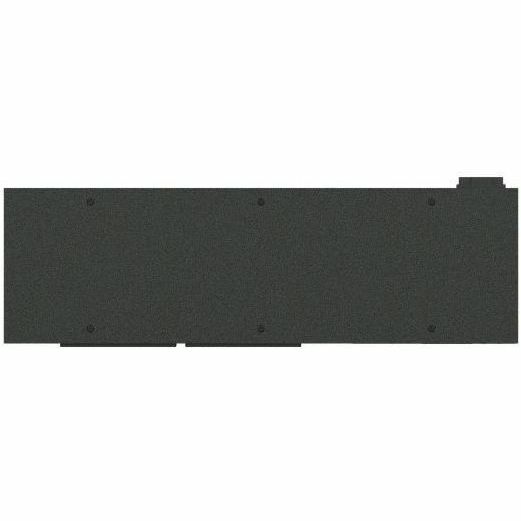

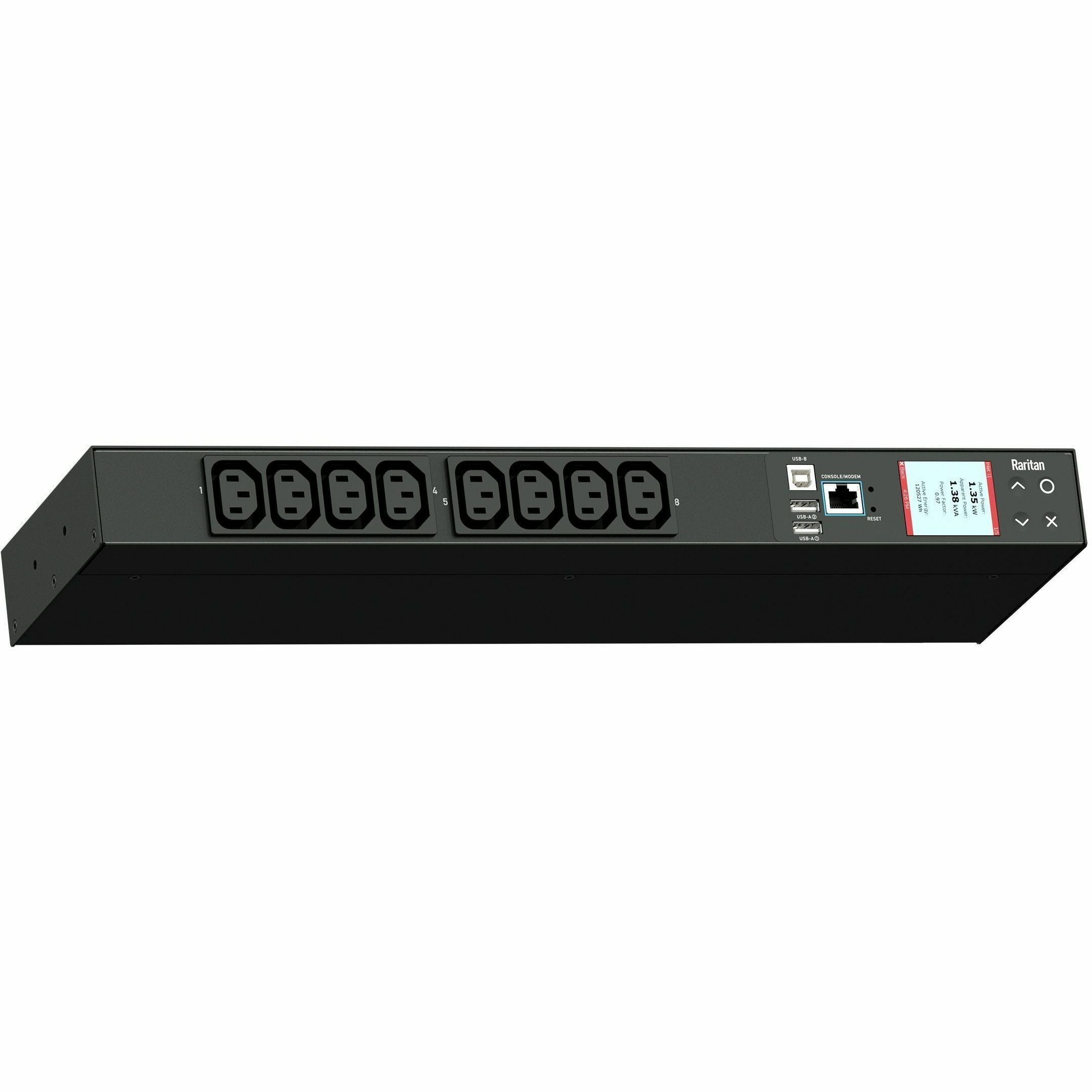

RARITAN PX3-1180CR 1PH 208V 16A 8XC13 C20 INLET 1U IEC C20 200-240V INLET
Mfg Part Number: PX3-1180CR , Item #: 4960071
Image may not reflect the actual item.
Price: $665.15
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 17, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX31180CR |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Raritan |
| Product Series | PX3 |
| Product Model | PX3-1180CR |
| Product Name | PX3-1180CR 8-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Phase | Single Phase |
| Plug/Connector Type | IEC 60320 C20 (2P3W) |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Locking Receptacles | SecureLock |
| Environmental Sensors | Water |
| Environmental Sensors | Temperature |
| Environmental Sensors | Differential Pressure |
| Environmental Sensors | Humidity |
| Environmental Sensors | Air Flow |
| Environmental Sensors | Contact Closure |
| Features | Onboard Display |
| Features | LCD Display |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Power Rating (VA) | 3800 VA |
| Input Current | 16 A |
| Input Frequency | 60 Hz |
| Circuit Breaker | No |
| Management | |
| Management |
|
| Remote Outlet Switching | No |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Product Color | Black Powder Coat |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 9.84 ft |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 5.2" |
| Weight (Approximate) | 2.20 lb |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 85% |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
