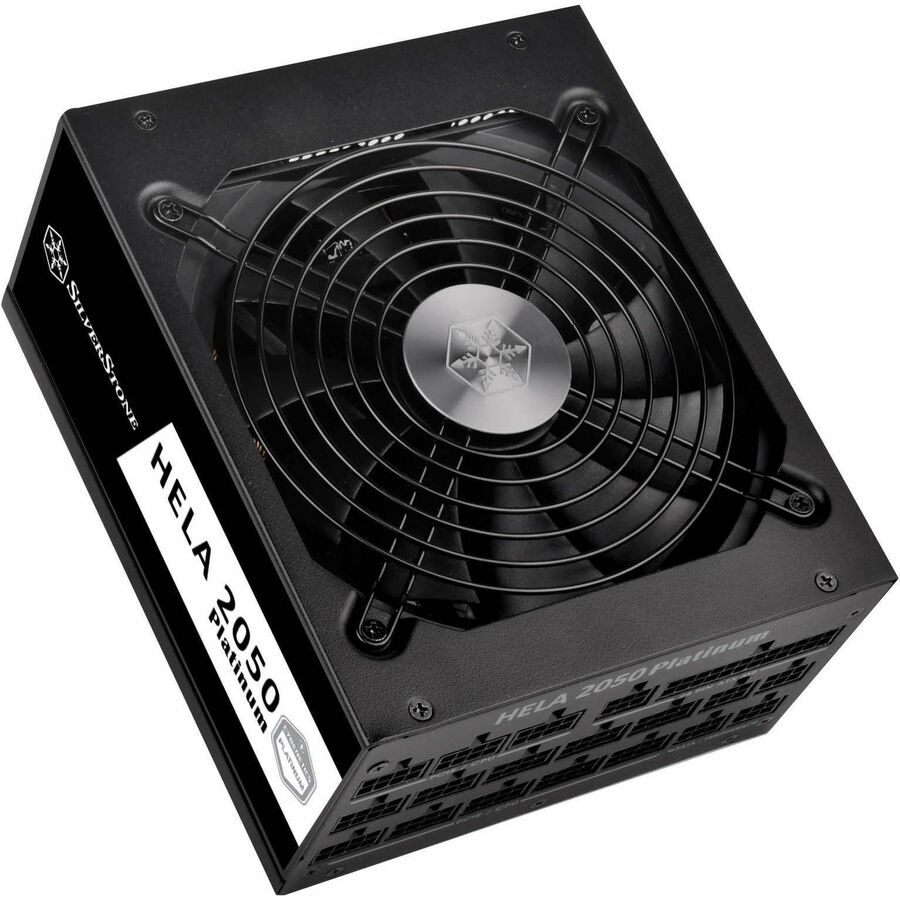

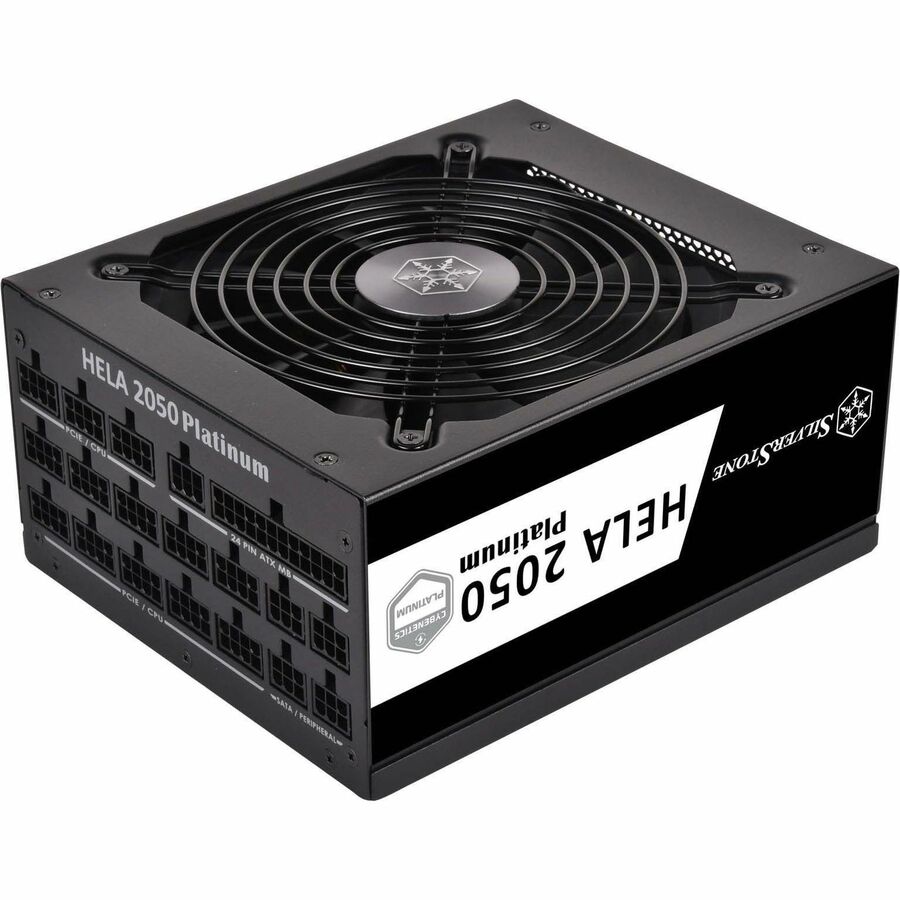

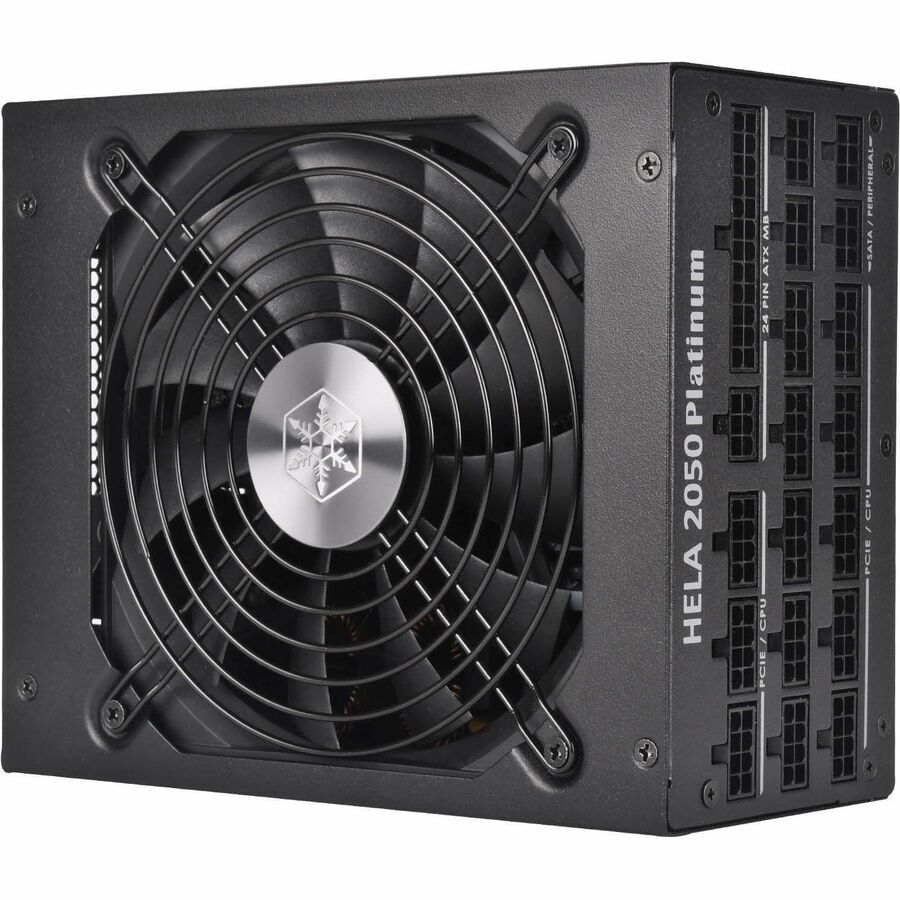

SST-HA2050-PT SilverStone HELA 2050 Platinum - power supply - 2050 Watt
Mfg Part Number: SST-HA2050-PT , Item #: 4960051
, PO and Wire.
Designed for Cybenetics Platinum level of efficiency to reduce wasted heat and save on electricity
180mm depth sets new standard for high wattage PSUs with modular cables
Complies with Intel ATX12V V2.52 power supply design guide to support the latest Intel / AMD CPUs with stable and plentiful power to your system

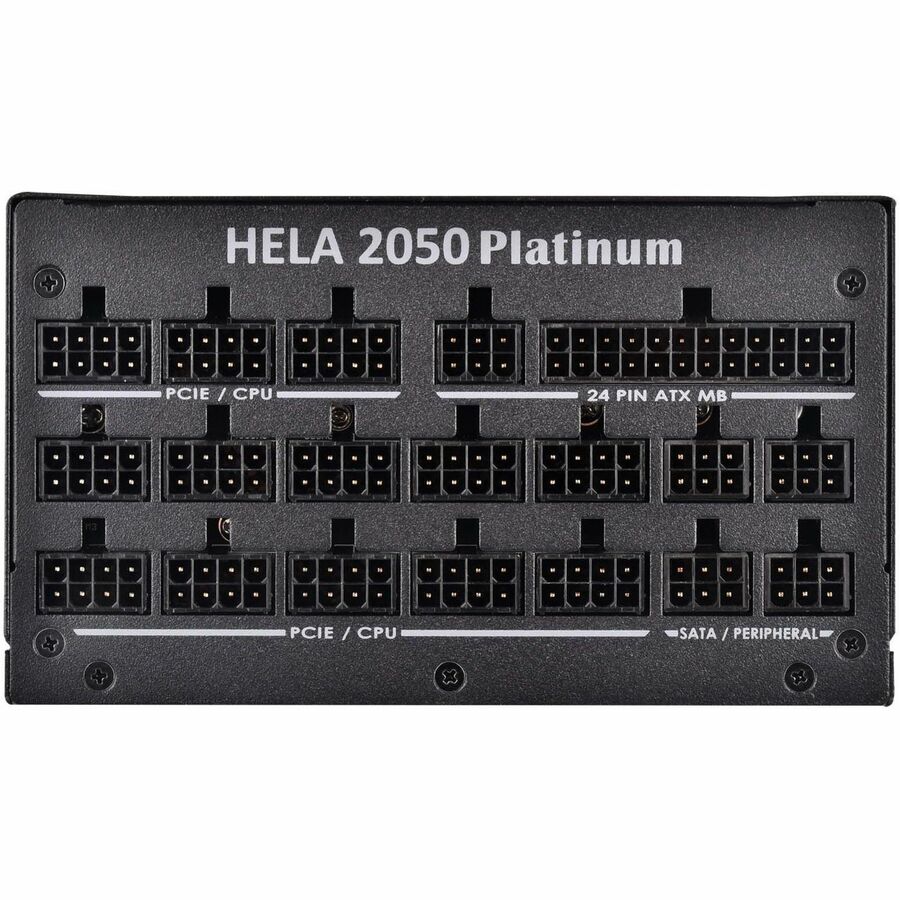

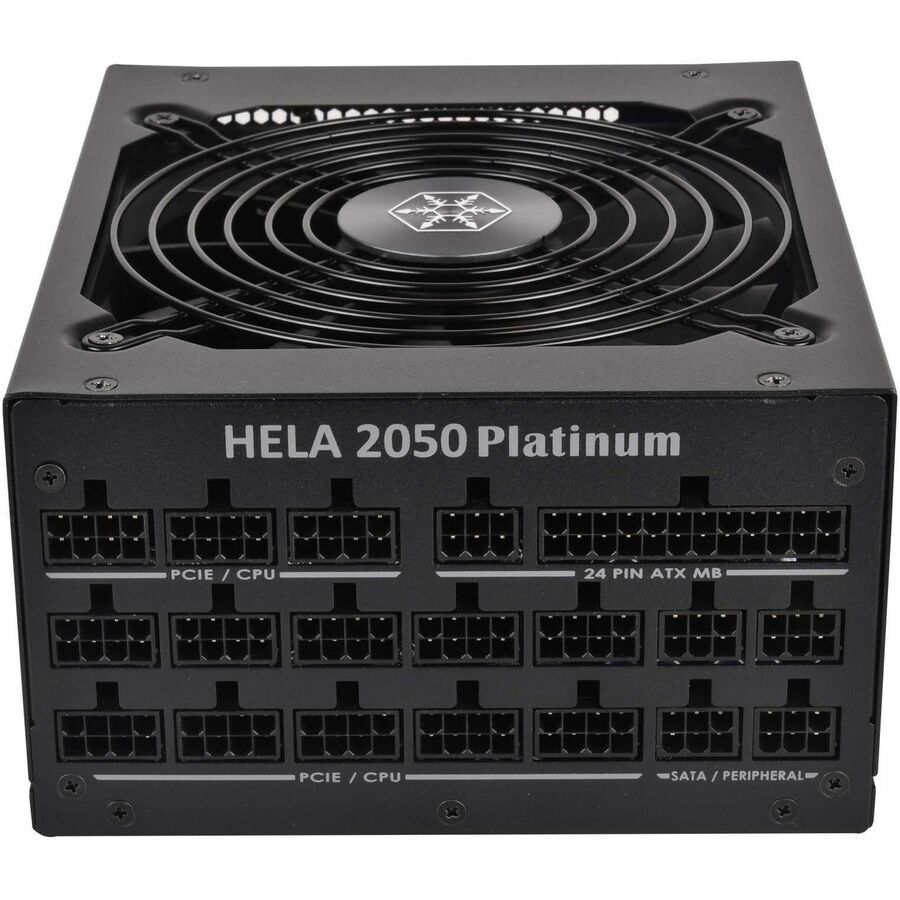

Fully modular design with universal EPS / PCIe connector interface. Flat cables have much greater fl

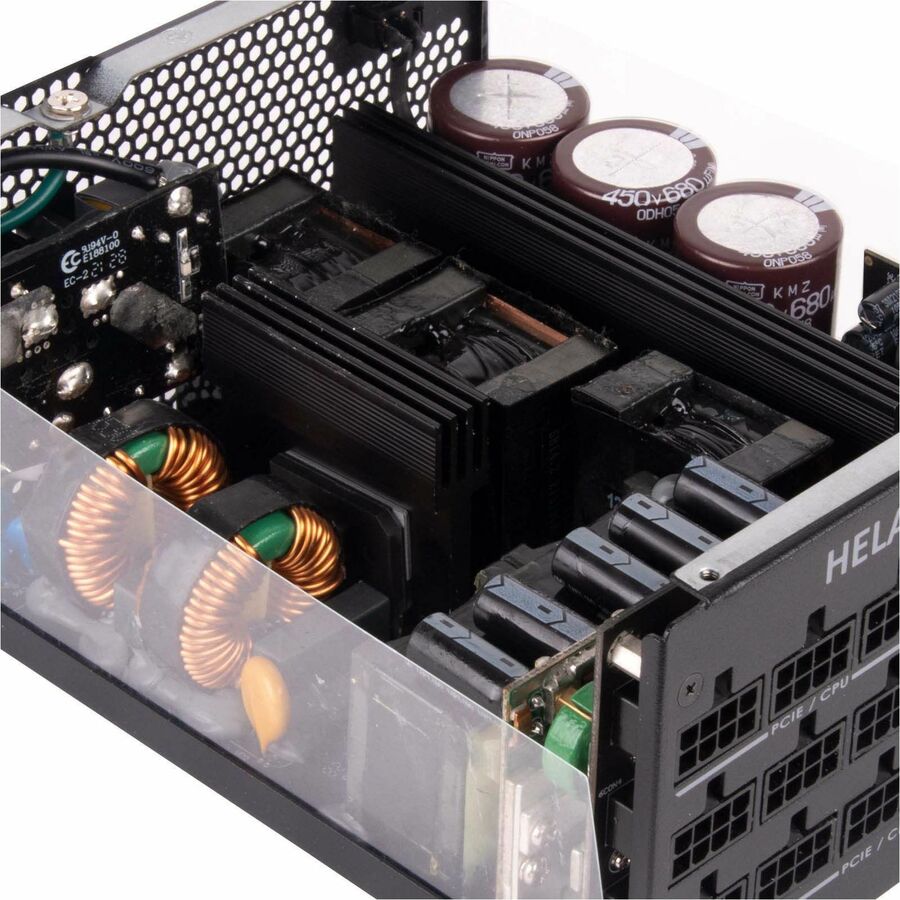

Japanese electrolytic capacitors / ±3% regulation and low ripple & noise performance for high stability

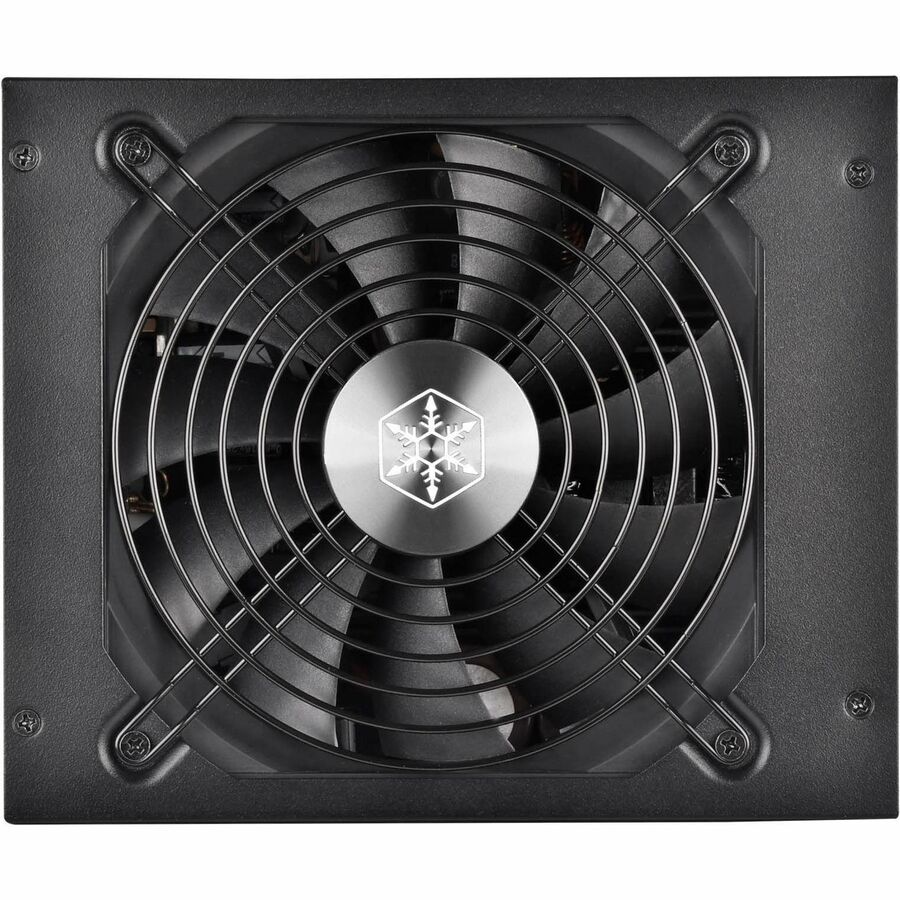

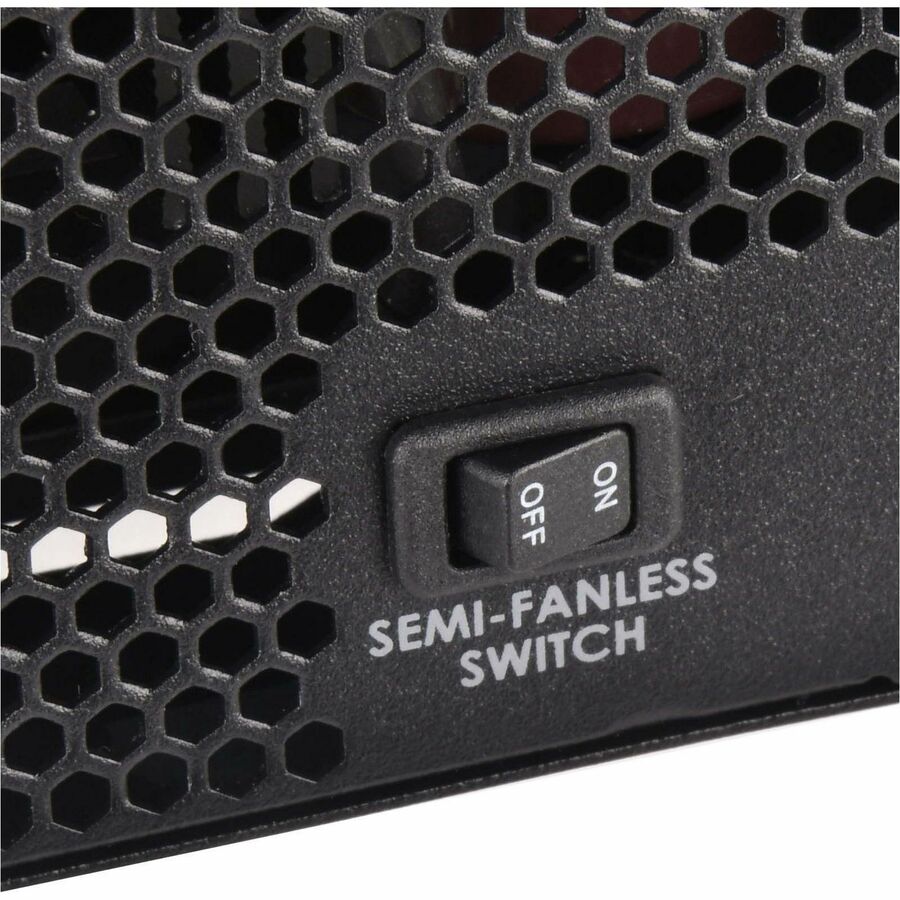

A built-in intelligent fan controller (microcontroller unit, MCU) enables the HELA 2050 Platinum to operate quietly during idle or low powered computing activities while ramping up for maximum cooling during stress and max loads
12-Pin GPU connector support
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Over temperature protection
| General Information | |
| Manufacturer | SilverStone Technology, Inc |
| Manufacturer Part Number | SST-HA2050-PT |
| Manufacturer Website Address | http://www.silverstonetek.com |
| Brand Name | SilverStone |
| Product Model | SST-AX2050MCPT-A |
| Product Name | SST-AX2050MCPT-A 2050W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V v2.52 |
| Efficiency | 89% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Fan Bearing |
| Fan Diameter | 135 mm |
| Protection Type | Over Temperature |
| Protection Type | Over Voltage |
| Protection Type | Over Power |
| Protection Type | Over Current |
| Protection Type | Short Circuit |
| Modular | Yes |
| Features | Compact |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage | 230 V AC |
| Output Voltage | 5 V DC |
| Output Voltage | -12 V DC |
| Output Voltage | 12 V DC |
| Output Voltage | 5 V SB |
| Output Voltage | 3.3 V DC |
| Output Voltage Detail | -12 V DC @ 0.5 A |
| Output Voltage Detail | 3.3 V DC @ 25 A |
| Output Voltage Detail | 5 V DC @ 3 A |
| Output Voltage Detail | 12 V DC @ 170 A |
| Output Voltage Detail | 5 V SB @ 3 A |
| Output Power | 2050 W |
| Input Frequency | 63Hz |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 12 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 12 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | ATX PS/2 |
| Height | 3.4" |
| Width | 5.9" |
| Depth | 7.1" |
| Weight (Approximate) | 9.57 lb |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
