APC

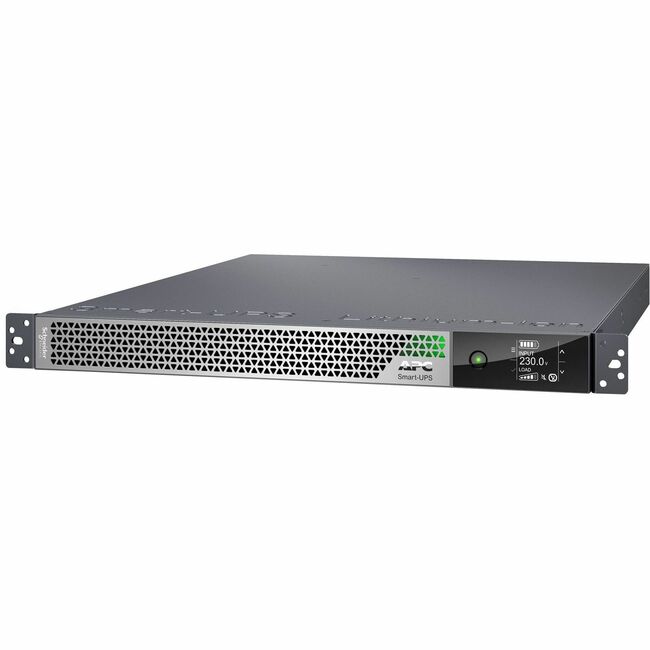

SRTL2K2RM1UWNC APC SMART-UPS ULTRA, 2200VA 208+230V 1U, WITH LITHIUM-ION BATTERY, WITH NETWORK
Mfg Part Number: SRTL2K2RM1UWNC , Item #: 4960038
Image may not reflect the actual item.
Price: $5,128.30
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jan 20, 2026
No Sales Tax except these states
, PO and Wire.
With Smart-UPS™ Ultra you can put up to 2200W of power protection in places never before possible. At half the size and weight of comparable UPS the mounting brackets can be used in any of the 5 mounting styles: rack (2 and 4 post), tower, wall, ceiling and desk under mount. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. 230V and 208V user selectable output. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL2K2RM1UWNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra 2200VA Rack-mountable UPS |
| Product Type | Dual Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | British BS1363A |
| Receptacle Type | IEC 320-C13 |
| Receptacle Detail | 3 x IEC 320-C13 |
| Receptacle Detail | 2 x IEC 320-C19 |
| Cord Length | 7.87 ft |
| Phase | Single Phase |
| Application/Usage | Server |
| Application/Usage | Network |
| Power Description | |
| Load Capacity (VA) | 2200 VA |
| Load Capacity (Watt) | 2200 W |
| Input Voltage | 240 V AC |
| Input Voltage | 208 V AC |
| Input Voltage Range | 208 V AC - 240 V AC |
| Output Voltage | 208 V AC |
| Output Voltage | 240 V AC |
| Input Frequency | 50 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1600 J |
| Management | |
| Network Management | Network Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Typical Battery Recharge Time | 1.50 Hour |
| Physical Characteristics | |
| Color Family | Silver |
| Product Color | Silver Gray |
| Height | 1.7" |
| Width | 17" |
| Depth | 22" |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Mounting Preference | No Preference |
| Mounting Location | Horizontal |
| Weight (Approximate) | 35.05 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | CE|EAC|RCM|VDE|UKCA|UK PSTI |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL2K2RM1UWNC_ROHS_DECLARATION&p_FileName=SRTL2K2RM1UWNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567066303&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567066303&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311012EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1 |
| REACH free of SVHC | No |
| Toxic Heavy Metal Free | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
