P66776-B21 HPE DL325 G11 9354P MR408I-O 8SFF SVR

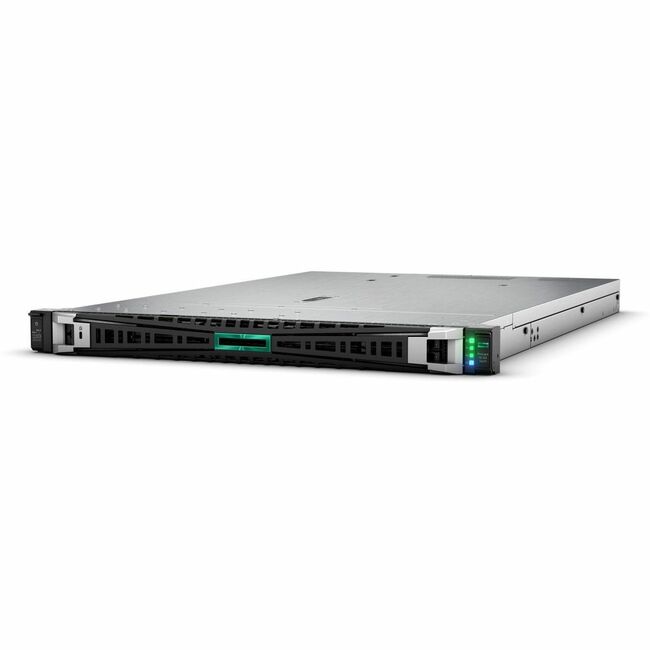

HPE ProLiant DL325 Gen11
Are you looking for a scalable, low-cost performance server solution for your virtualized and software-defined compute workloads? The HPE ProLiant DL325 Gen11 server is a low-cost 1U 1P solution that delivers exceptional value balancing compute, memory and network bandwidth at 1P economics. Powered by 4th Generation AMD EPYC™ Processors with up to 96 cores, increased memory bandwidth (up to 3 TB), high-speed PCIe Gen5 I/O and EDSFF storage, and supporting up to 2 GPUs at the front, this server is a superb low-cost, 1U 1P, performance solution for your virtualized workloads. The silicon root of trust anchors the server firmware, creating a fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. The HPE ProLiant DL325 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.

General Information
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	P66776B21
Manufacturer Website Address	http://www.hpe.com
Brand Name	HPE
Product Line	ProLiant
Product Series	DL325 G11
Product Name	ProLiant DL325 G11 Server
Product Type	Server
Processor
Number of Processors Supported	1
Number of Processors Installed	1
Processor Type	EPYC
Processor Generation	4th Gen
Processor Model	9354P
Processor Core	Dotriaconta-core (32 Core)
Processor Speed	3.25 GHz
Cache	256 MB
Chipset
Chipset Manufacturer	AMD
Memory
Standard Memory	32 GB
Maximum Memory Supported	3 TB
Memory Technology	DDR5 SDRAM
Error Checking	ECC
Total Number of Memory Slots	12
Number of Occupied Memory Slots	1
Signal Processing	Registered (Buffered)
Controllers
Controller Type	12Gb/s SAS
Controller Model	MR408i-o
RAID Supported	Yes
I/O Expansions
Number of Total Expansion Bays	8
Number of Internal 2.5" Bays	8
Number of SFF Bays	8
Hot Swappable Bays	Yes
Total Number of Expansion Slots	1
PCI Express x16 (Gen 3.x) Slots	1
PCI Express Details	1 PCIe 5.0 x16 Full-height, Full-length slot
Riser Card	1 PCIe x16 Primary Riser
Display & Graphics
Graphics Memory Capacity	16 MB
Network & Communication
Ethernet Technology	10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports	5
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	4
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download)
Operating System
Operating System Supported	Red Hat Enterprise Linux 9.0
Operating System Supported	Windows Server 2019
Operating System Supported	Windows Server 2022
Operating System Supported	SUSE Linux Enterprise Server 15 SP4
Operating System Supported	Red Hat Enterprise Linux 8.6
Power Description
Input Voltage	120 V AC
Input Voltage	230 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	1
Plug/Connector Type	C13/C14
Maximum Power Supply Wattage	800 W
Hot Swappable Power Supply	Yes
Power Source	Power Supply
Physical Characteristics
Form Factor	Rack
Rack Height	1U
Height	1.7"
Width	17.1"
Depth	25.6"
Weight (Approximate)	34.26 lb
Miscellaneous
Package Contents	ProLiant DL325 G11 Server 6-foot IEC C-13/C-14 Jumper Cord
Security Features	UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-3 validation (iLO 6 certification in progress) Common Criteria certification (iLO 6 certification in progress) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Tamper-free updates - components digitally signed and verified Secure Recovery - recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of NAND/User data
Energy Star	Yes
Environmentally Friendly	Yes
Energy Efficiency Certification	ENERGY STAR 3.0
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty	3 Year
Additional Warranty Information	3-year parts, 3-year labor, 3-year onsite support with next business day response.
