CYBERPOWER
CYBERPOWER PR2200RTXL2UC 2200VA/2200W SINE WAVE UPS 2U 8XNEMA 5-20R 10 CORD CLOUD
Mfg Part Number: PR2200RTXL2UC , Item #: 4956594
, PO and Wire.

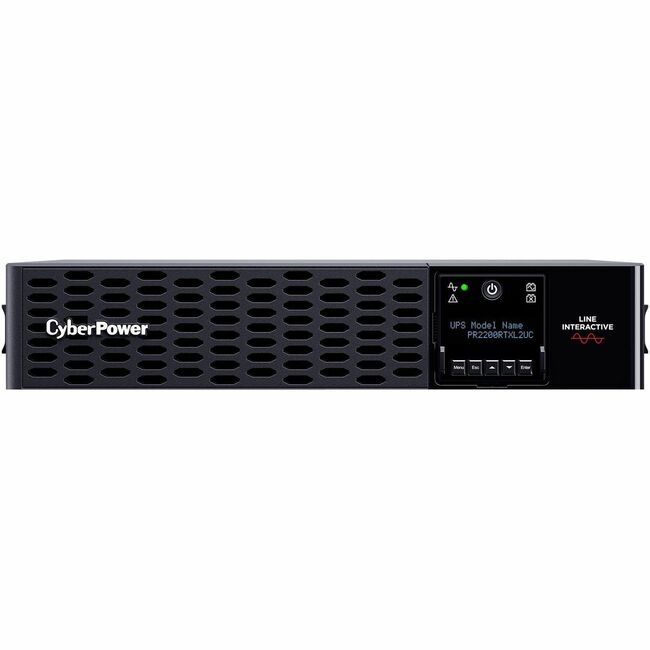

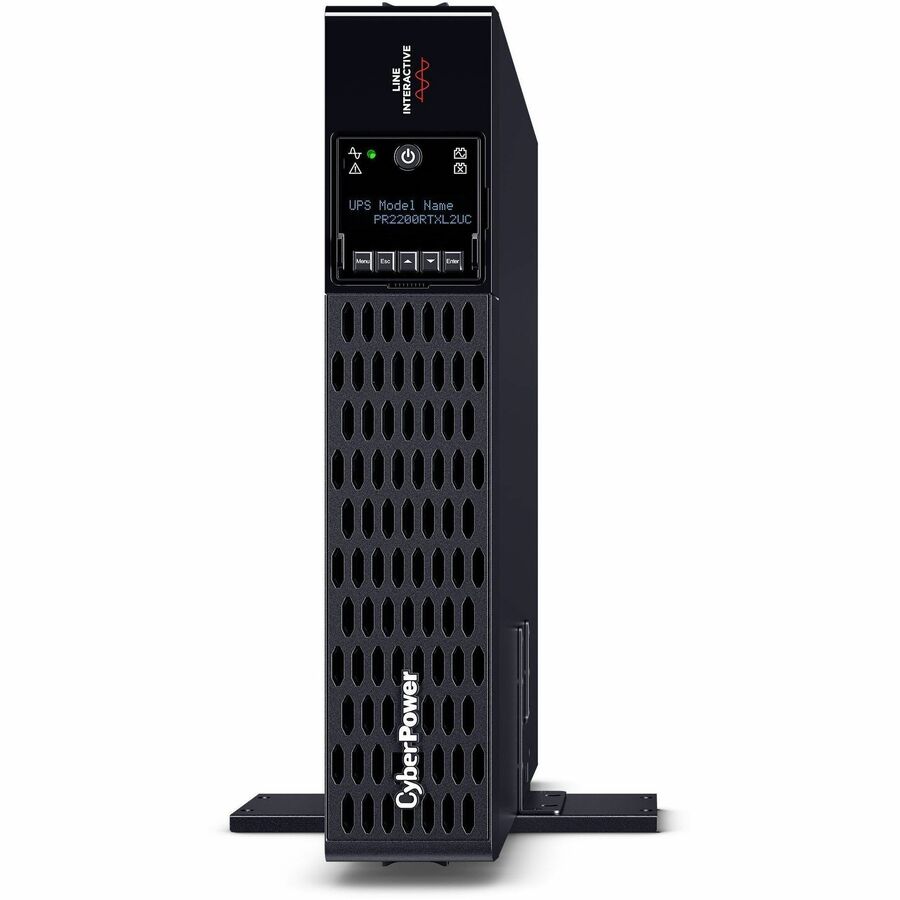

The PR2200RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.
The Smart App Sinewave PR2200RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RTXL2UC.
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR2200RTXL2UC |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Line | Smart App Sinewave |
| Product Model | PR2200RTXL2UC |
| Product Name | Smart App Sinewave PR2200RTXL2UC 2200VA Rack/Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Overload Protection | Yes |
| Cord Length | 10 ft |
| Transfer Time | 11 ms |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Application/Usage | Network Device |
| Application/Usage | VoIP |
| Application/Usage | Telecommunication |
| Application/Usage | Corporate |
| Application/Usage | Equipment |
| Application/Usage | Server |
| Application/Usage | Storage Device |
| Surge Suppression | Yes |
| Power Description | |
| Load Capacity (VA) | 2200 VA |
| Load Capacity (Watt) | 2200 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 149 V AC |
| Input Voltage Range | 100 V AC - 125 V AC |
| Output Voltage | 125 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 110 V AC |
| Output Voltage | 100 V AC |
| Input Frequency | 47 Hz |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Output Frequency | 50 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Circuit Breaker | Yes |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Dry Contact |
| Network Management | SNMP/HTTP Remote Monitoring |
| Network Management | Relay-MS Card |
| Alarm | Over-charge |
| Alarm | Battery Mode |
| Alarm | Overload |
| Alarm | Fault |
| Alarm | Low Battery |
| Controls/Indicators | |
| Status Indicators | LED Indicators: |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 4 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 3.20 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 49209.32 ft |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 95% |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
| Thermal Dissipation | 39.56 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 3.4" |
| Width | 17.1" |
| Depth | 19.7" |
| Length | 24.3" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 79.60 lb |
| Miscellaneous | |
| Certifications & Standards | UL1778 |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Connected Equipment Guarantee: Lifetime |
| Directly Connected Equipment Guarantee | $400000 Lifetime |
