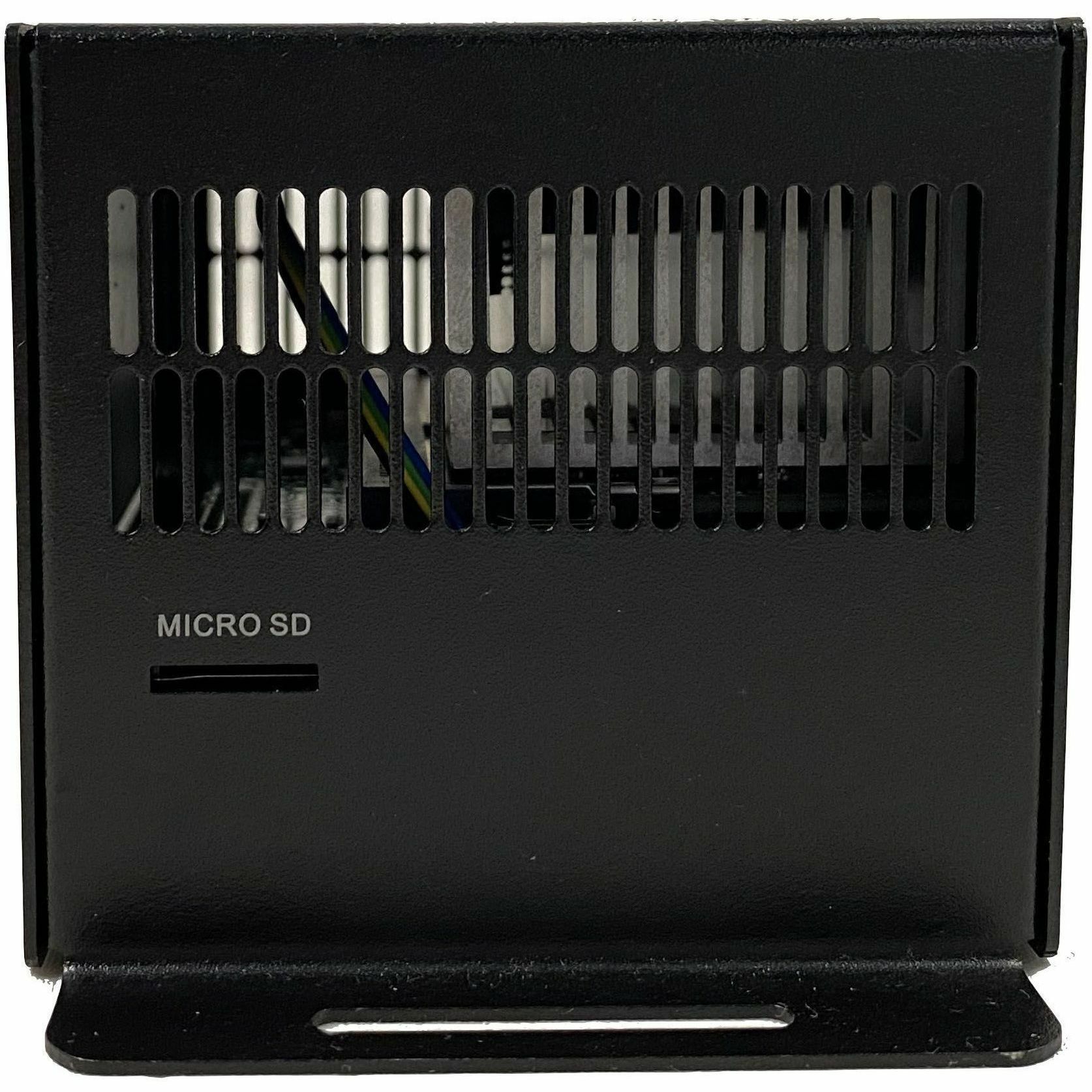

AVerMedia SY NO111B-4G Box PC Arm Cortex A57 4GB with MIPI\xFFBrown box

Mfg Part Number:  NO111B-4G
Image may not reflect the actual item.
Price: $471.07 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jan 21, 2026
No Sales Tax except these states
, PO and Wire.

AVerMedia's Box PC NX211B/NO111B equip powerful NVIDIA® NANO/ Xavier™ NX modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities

NO111B/NX211B are designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA's JetPackTM SDK.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

More from the Manufacturer

Main Specification
General Information
Manufacturer AVerMedia Technologies, Inc
Manufacturer Part Number NO111B4G
Manufacturer Website Address http://www.avermedia.com
Brand Name AVerMedia
Product Model NO111B
Product Name Jetson NANO Version B01/TX2 NX/Xavier NX Module
Product Type Video Surveillance System
Technical Information
Connectivity Technology Wired
Recording Formats 4K
HD Recording Yes
Memory Card Slot Yes
Memory Card Supported microSD
Video
Maximum Resolution 3840 x 2160
Network & Communication
Ethernet Yes
Remote Management Yes
Interfaces/Ports
USB Yes
USB Standard USB 2.0/3.0
Number of USB Ports 3
Network (RJ-45) Yes
HDMI Yes
Power Description
Input Voltage 12 V
Power Source DC Supply
Physical Characteristics
Height 2.8"
Width 3.6"
Depth 3"
Weight (Approximate) 1.06 lb
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 140°F (60°C)
Miscellaneous
Additional Information

NVIDIA GPU SoC Module Compatibility

  • NVIDIA® Jetson Nano

    • Networking

  • 1 x GbE RJ-45

    • Display Output

  • 1 x HDMI output 3840 x 2160 at 60Hz

    • Temperature

  • Operating temperature 0°C~60°C for NO111B, 0°C~55°C for NX211B
  • Storage temperature -40°C ~ 85°C
  • Relative humidity 40 °C @ 95%, Non-Condensing

    • MIPI Camera Inputs (Internal)

  • 2 x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector(Compatible on NVIDIA® Jetson Nano™ Developer Kit)
  • 1 x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector

    • USB

  • 1 x USB 2.0 Micro-B for recovery
  • 2 x USB 3.0 Type-A

    • Storage

  • 1 x micro-SD card slot

    • Expansion Header

  • 20 pins: 2 x I2C, 1x UART, 9 x GPIOs

    • Input Power

  • 12V/5A
  • 9V~19V is recommended

    • Power Cord

  • US/JP/EU/UK/TW

    • Thermal solution

  • Heat sink with fan

    • Buttons

  • Power and Recovery

    • RTC Battery

  • Support RTC battery and Battery Life Monitoring by MCU

    • Certifications

  • CE, FCC, KC(TBA)

    		•
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS) 2
