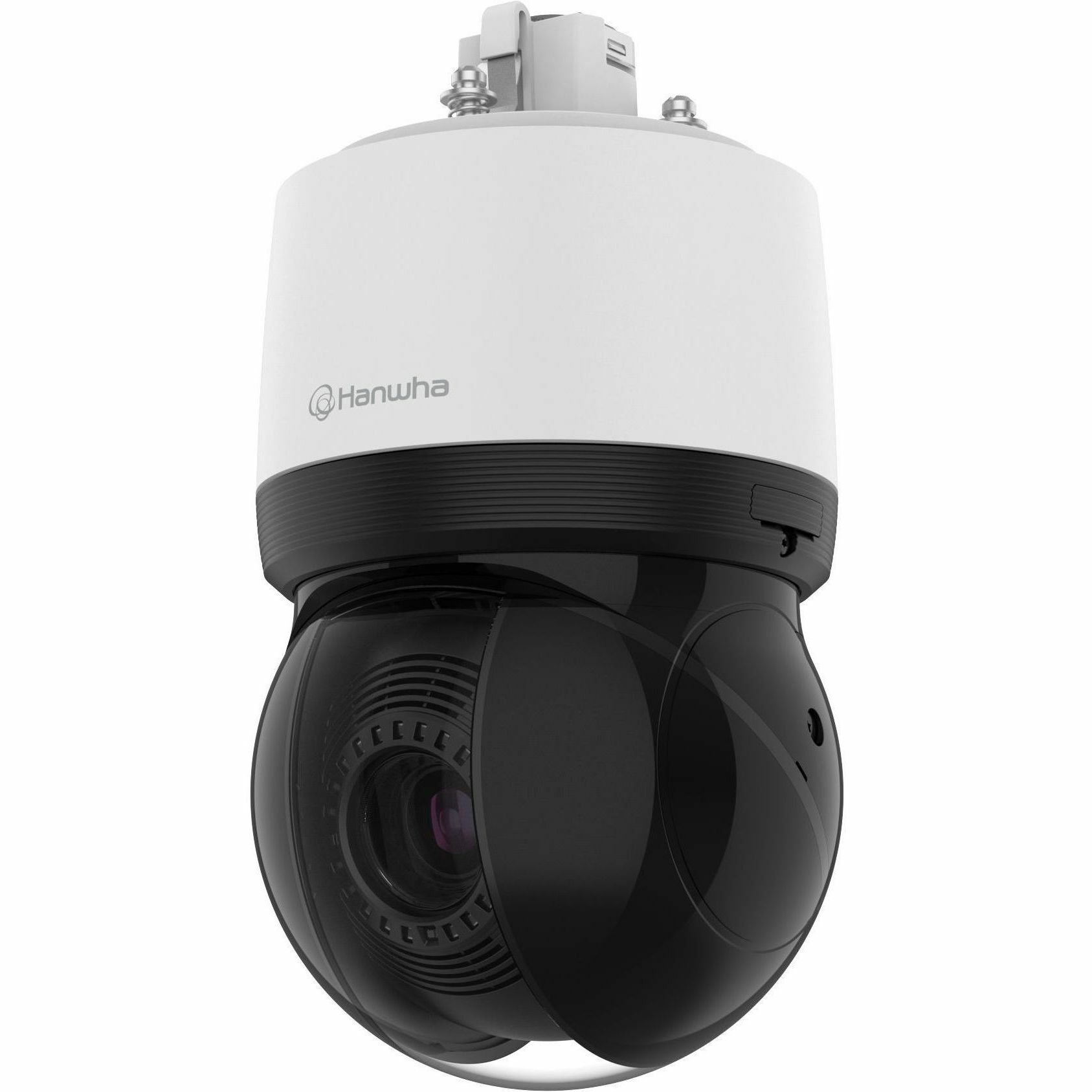

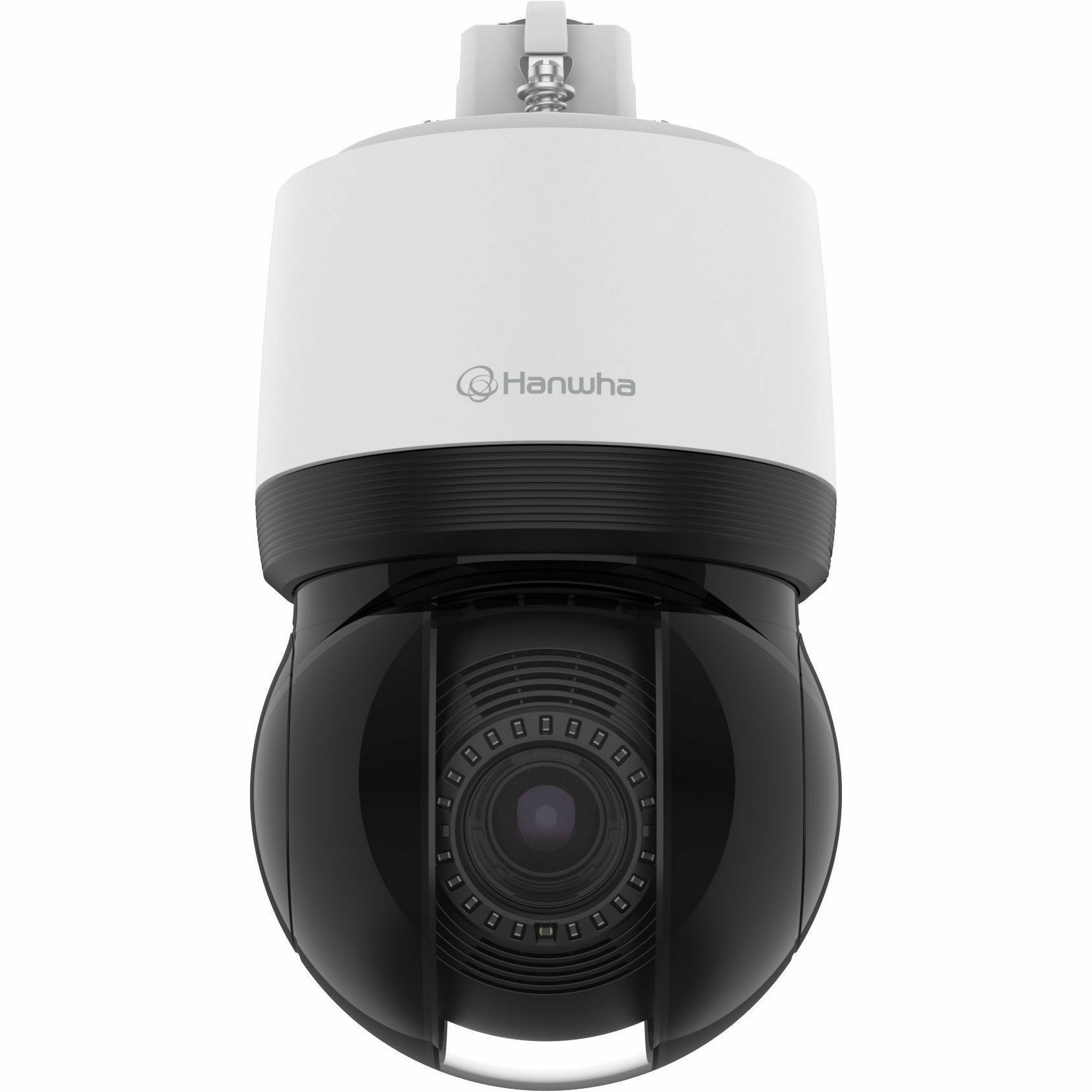

HANWHA TECHWIN XNP-C9253 Powered by WN7 PTZ Plus with AI 4K @ 30FPS resolution 5mm~125mm (25x) lens extreme WDR 120dB Day & Night ICR H.265 H.264 MJPEG codec support Analytics events based on AI engine: Object detection
Mfg Part Number: XNP-C9253 , Item #: 4956310
Image may not reflect the actual item.
Price: $3,677.58
+ Free Shipping
Quantity:
More to Come
Last Updated: Nov 09, 2025
No Sales Tax except these states
, PO and Wire.
Powered by the Wisenet 7 chipset, the PTZ PLUS AI camera provides AI-based object detection and auto tracking (Person/Vehicle) with Target lock tracking.
- 4K resolution
- 25X optical zoom 5mm ~ 125mm
- -20° tilt look-up capability to see above the horizon
- Spin dry for water removal
- 360° endless pan
- Triple codec H.265/H.264/MJPEG
- WiseStream III technology
- Extreme WDR
- Azimuth display (Cardinal & intermediate directions)
- AI-based Object Auto tracking (Person, Vehicle), target lock tracking, Intelligent video analytics
- Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box), Object auto-tracking (Person/Vehicle), Target lock track
- True D/N
- Dual SD card slots
- DIS with Built-in Gyro sensor
- PoE+
- IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)
- Optional SPM-4210 Network I/O box for alarm & audio I/O
- Operating Temperature -40°C~+55°C (-40°F ~ +131°F)
- TPM 2.0 with FIPS 140-2 level 2
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNPC9253 |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Hanwha |
| Product Model | XNP-C9253 |
| Product Name | 4K, 25x, AI PTZ camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | 4K |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | H: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele) |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.265M |
| Video Formats | H.265B |
| Video Formats | MJPEG |
| Video Formats | H.264H |
| Video Formats | H.264B |
| Video Formats | H.264 |
| Video Formats | H.264M |
| Video Formats | H.265 |
| Video Formats | H.265H |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 5 mm |
| Maximum Focal Length | 125 mm |
| Lens Included | Yes |
| Minimum Aperture | f/3.73 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 25x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Protocols | RTSP |
| Protocols | QoS |
| Protocols | IPv4 |
| Protocols | RTP/TCP |
| Protocols | ARP |
| Protocols | DNS |
| Protocols | UPnP |
| Protocols | ONVIF |
| Protocols | IPv6 |
| Protocols | NTP |
| Protocols | SNMPv1/v2c/v3 (MIB2) |
| Protocols | TCP |
| Protocols | RTP/UDP |
| Protocols | DDNS |
| Protocols | LLDP |
| Protocols | TCP/IP |
| Protocols | RTCP |
| Protocols | HTTP |
| Protocols | FTP |
| Protocols | IGMP |
| Protocols | Bonjour |
| Protocols | UDP/IP |
| Protocols | NTCIP |
| Protocols | MQTT |
| Protocols | HTTPS |
| Protocols | SSL/TLS |
| Protocols | DHCP |
| Protocols | SMTP |
| Protocols | ICMP |
| Protocols | SRTP |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE+ |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Black |
| Product Color | White |
| Diameter | 6.2" |
| Weight (Approximate) | 7.05 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Day/Night |
| Features | PTZ |
| Features | Digital Image Stabilization |
| Features | Wide Dynamic Range |
| Features | Privacy Masking |
| Features | Digital Noise Reduction |
| Features | Audio Detection |
| Features | Gain Control |
| Features | Back Light Compensation (BLC) |
| Features | Motion Detection |
| Features | White Balance |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Warranty | |
| Limited Warranty | 3 Year |
