AVER

AVerMedia SY D115ONB-4GB Box PC Arm Cortex A78AE 4GB Fanless\xFFBrown box

Mfg Part Number:  D115ONB-4GB
Image may not reflect the actual item.
Price: $881.62 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 28, 2025
No Sales Tax except these states
, PO and Wire.

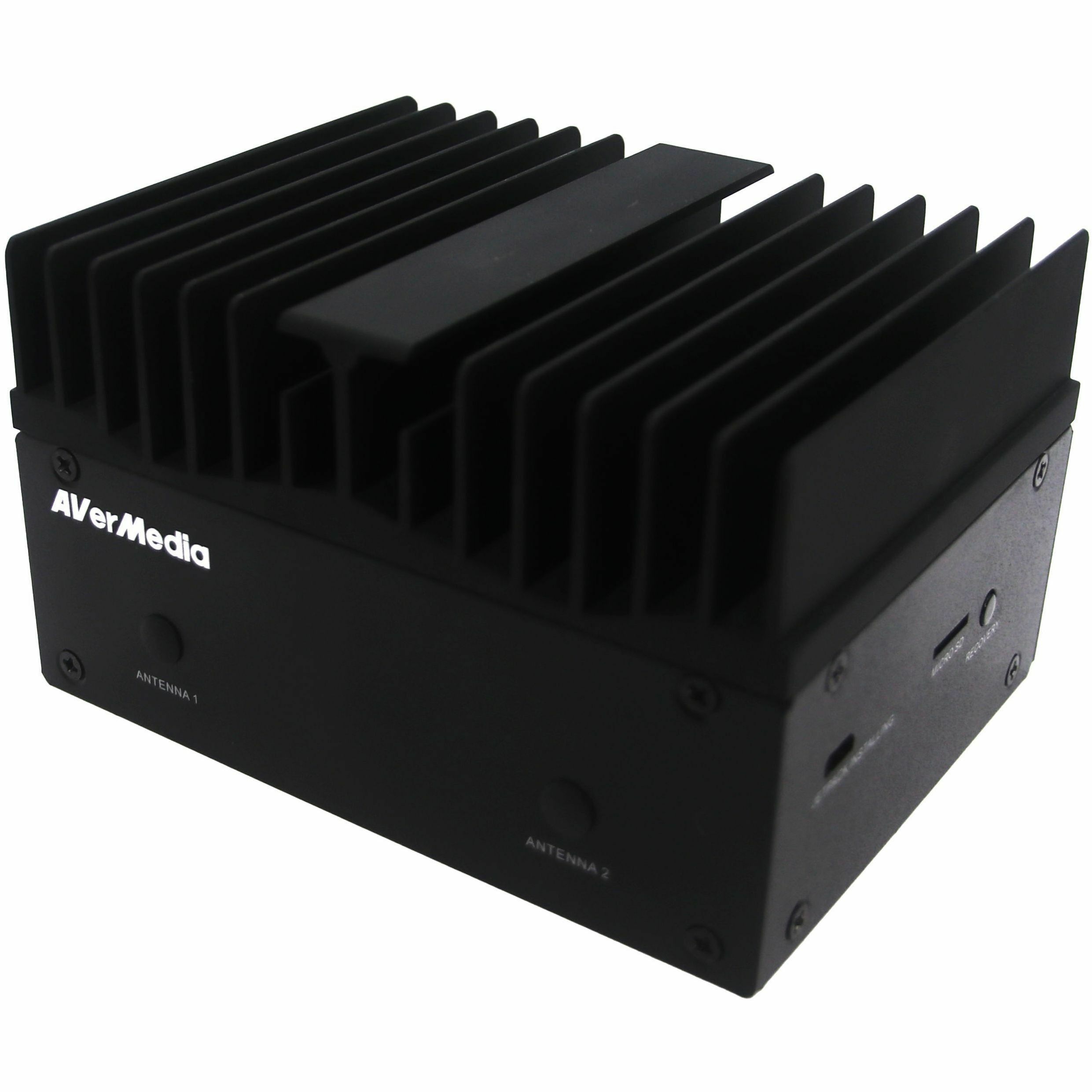

AVerMedia's D115OXB/D115ONB is the next generation of AI Box PC that is designed with the NVIDIA® Jetson Orin NX/Orin Nano module. Suited for situations with spatial concerns, this high inference AI Box comes in at a compact 126mm (W) x 96mm (L) x 74mm (H) housing. And with a fanless design, the thermally optimized housing is capable of operating at 0 ~ 60°C(TBD) while running virtually silently.

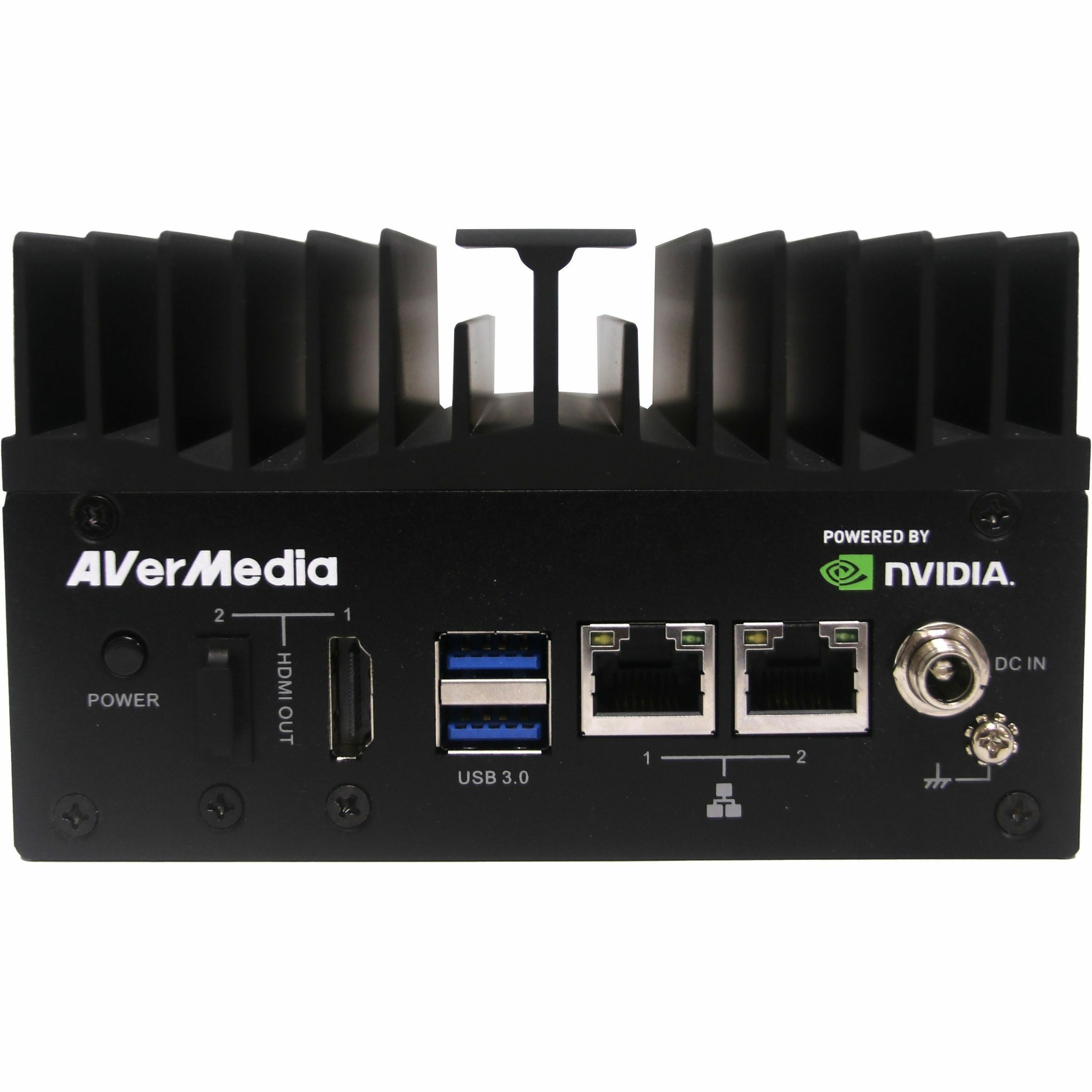

We understand that every situation has a set of unique requirements, and this is the reason the D115OXB/D115ONB is designed with a rich assortment of I/O ports. From 2x 2 Lane MIPI CSI-2 Input (internal), to 1x HDMI output, and 2x GbE RJ-45, you can rest assured that the D115OXB/D115ONB carries key I/O ports required for your unique application. And if you require additional customizations, our customer-dedicated team will be happy to support you with rapid deployment.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

More from the Manufacturer

Main Specification
General Information
Manufacturer AVerMedia Technologies, Inc
Manufacturer Part Number D115ONB4GB
Manufacturer Website Address http://www.avermedia.com
Brand Name AVerMedia
Product Model D115ONB-4GB
Product Name Jetson Orin NX/Orin Nano Module
Product Type Video Surveillance System
Technical Information
Connectivity Technology Wired
Network & Communication
Ethernet Yes
Remote Management Yes
Interfaces/Ports
USB Yes
USB Standard USB 2.0/3.0
Number of USB Ports 4
Network (RJ-45) Yes
HDMI Yes
Power Description
Input Voltage 12 V DC
Power Source DC Supply
Physical Characteristics
Height 2.9"
Width 5"
Depth 3.8"
Weight (Approximate) 2.20 lb
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 140°F (60°C)
Miscellaneous
Package Contents
  • 1 x D115ONB 8G or 4G (256G SSD installed)
  • 1 x Adapter and Power cable
Additional Information

NVIDIA GPU SoC Module Compatibility

  • NVIDIA® Jetson Orin Nano 4GB
  • Networking

  • 2x GbE RJ-45
  • 1x M.2. key E 2230 for Wi-Fi
  • Display Output

  • 1x HDMI 4Kp60 for Orin NX/ 4Kp30 for Orin Nano
  • Temperature

  • Operating temperature 0°C~60°C
  • Storage temperature -40°C ~ 85°C
  • Relative humidity 40 °C @ 95%, Non-Condensing
  • MIPI Camera Inputs

  • 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector
  • USB

  • 1x USB 2.0 Micro-B for recovery
  • 3x USB 3.0 Type-A (1x internal)
  • Storage

  • 1x M.2. key M 2280 for NVMe (256G SSD installed)

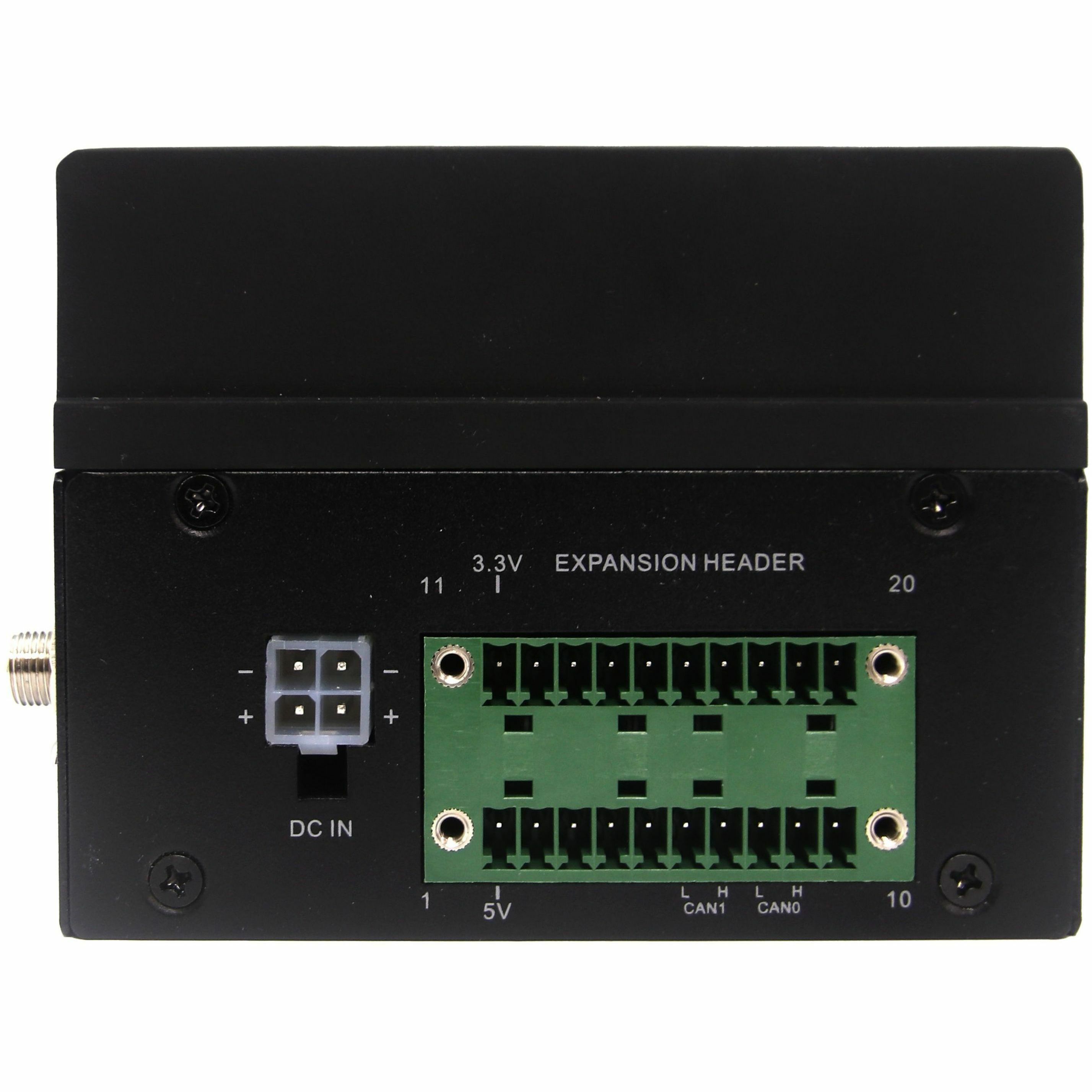

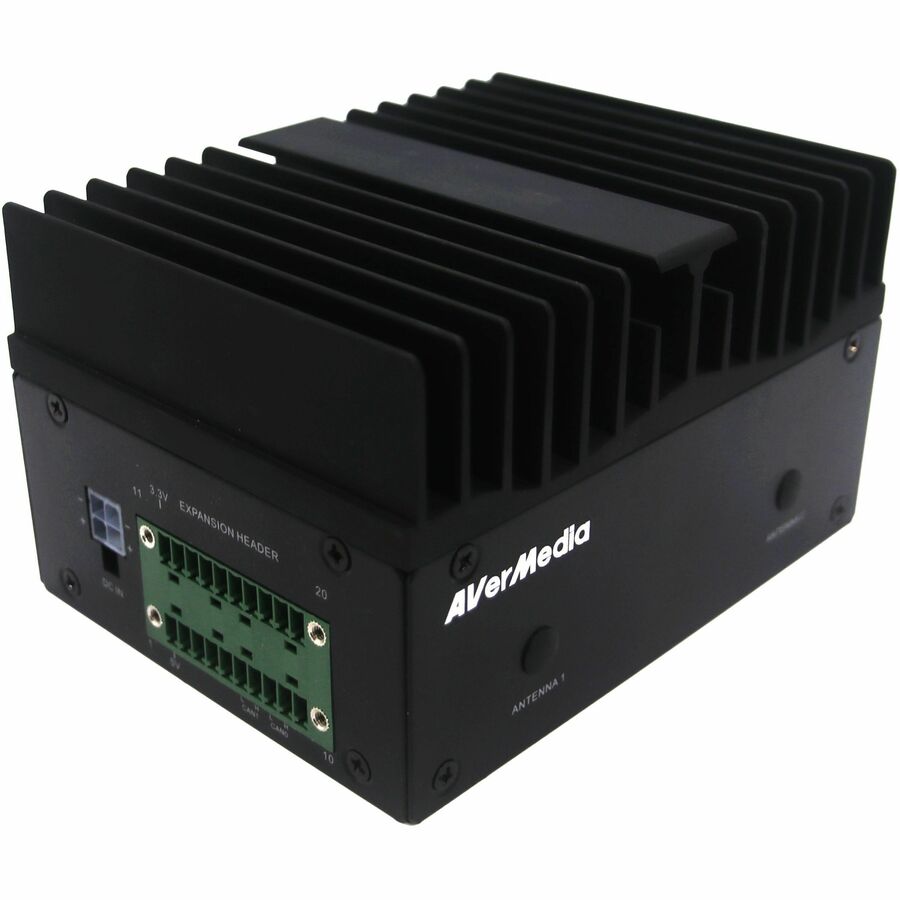

  • Expansion Header (Internal)

  • 20 pins: 2x I2C
  • 1x UART
  • 4x GPIOs
  • 1x CAN with transceiver (EU terminal block)
  • Input Power

  • DC in Jack on board & ATX 4pin
  • 12V/5A, 12V~24V is recommended
  • Power Cord

  • US/JP/EU/UK/TW/CN/AU
  • Fan Module

  • Fanless Solution
  • Buttons

  • Power and Recovery
  • RTC Battery

  • Support RTC battery and Battery Life Monitoring by MCU
  • Certifications

  • CE, FCC, KC
  • Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS) 2
