THERMALTAKE

THERMALTAKE CL-F155-PL12BL-A SWAFAN GT12 Case Fan

Mfg Part Number:  CL-F155-PL12BL-A
Image may not reflect the actual item.
Price: $37.25 + Free Shipping
Quantity:
More to Come
Last Updated: Oct 11, 2025
No Sales Tax except these states
, PO and Wire.

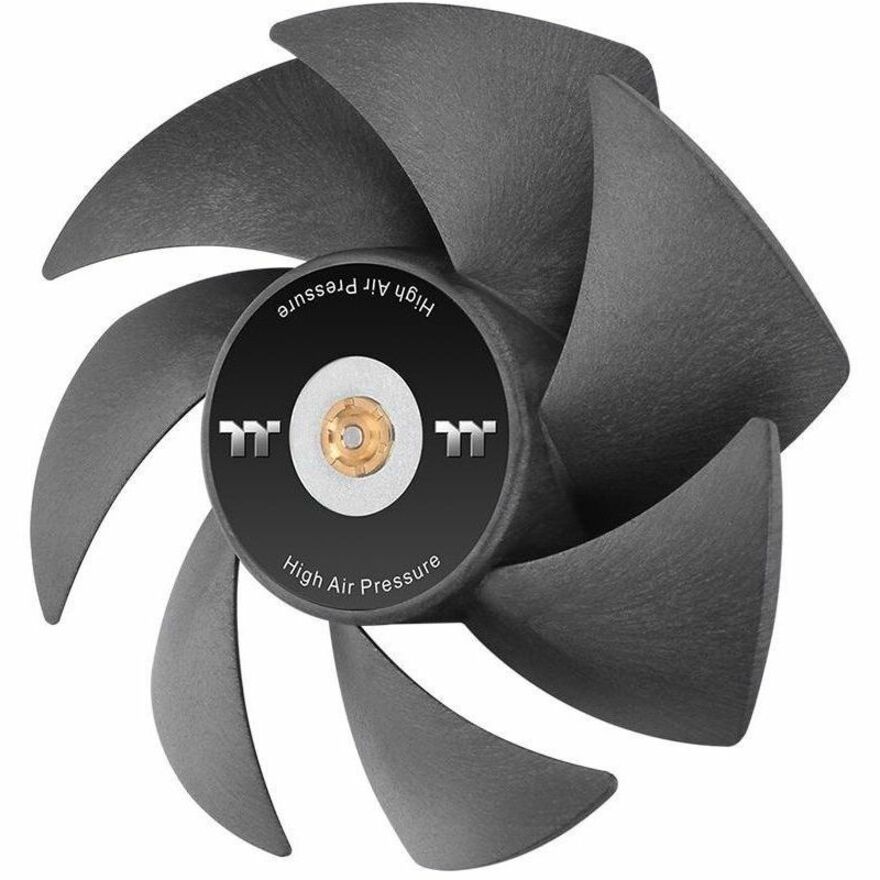

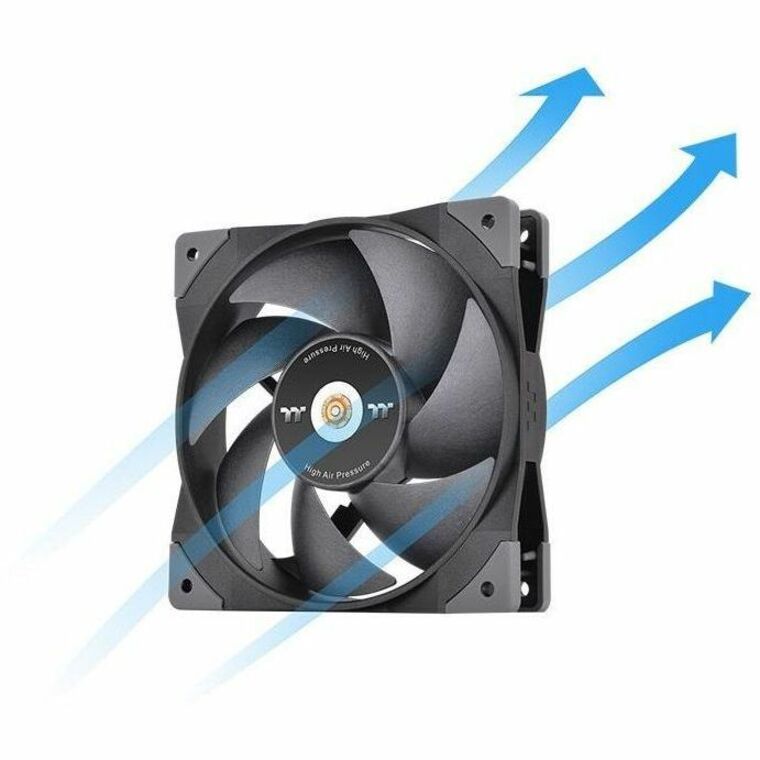

3 Types of Detachable Fan Blades For You to SWAP | High Static Pressure

The High Static Pressure Fan Blade is pre-installed onto the fan frame for users with instant demand for high static pressure fans. These fan blades are tuned to produce a static pressure of 3.17 mm-H2O with 54.71 CFM airflow under a 26.5 dB-A noise levels.

Sufficient Cooling Energy

With its static pressure, the High Static Pressure Fan Blade is designed explicitly to cope with high wind resistance objects, such as radiators or chassis' with multiple tempered glass panels.

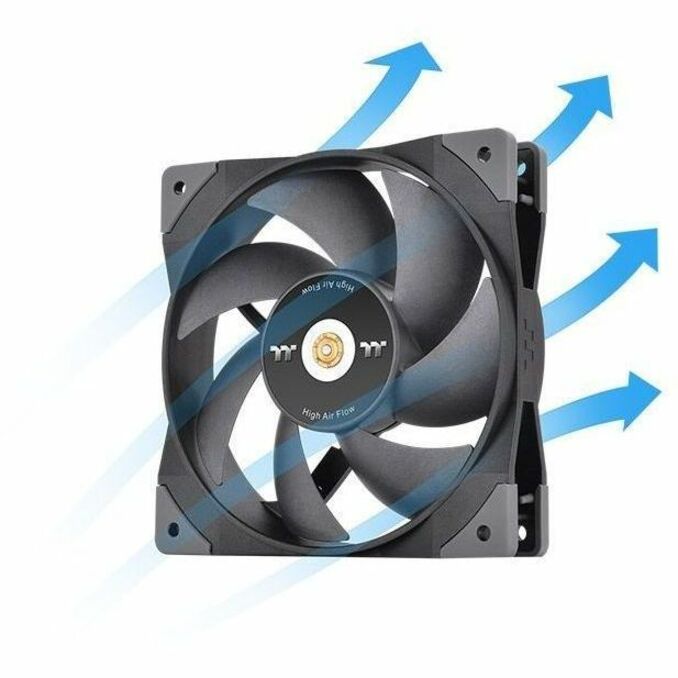

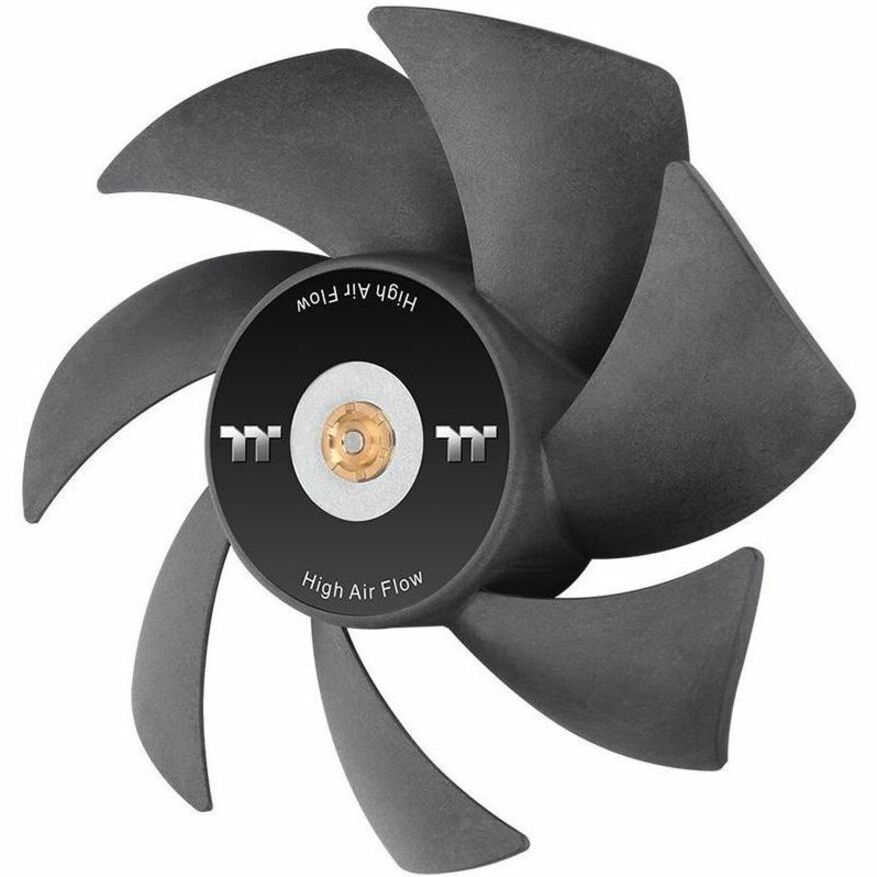

High Air Flow

An additional fan blade in the box is the High Air Flow Fan Blade. You can switch out the high static pressure fan blade with the High Air Flow Fan Blade and get a fan with 62.23 CFM airflow while producing 2.7 mm-H2O static pressure under a 28.3 dB-A noise level.

Strong Cooling Performance

Compared to high static pressure fan blades, the High Air Flow Fan Blade has a more significant airflow, so it's recommended to use on a chassis that needs more air circulation to increase cooling performance.

Reverse Air Flow

The third type of fan blade in the box is the Reverse High Air Flow Fan Blade. Even with reversed airflow direction, you can still get a static pressure of 2.23 mm-H2O with 58.17 CFM air flow under 29.8 dB-A noise level.

Simpler and Better Aesthetics

The Reverse High Air Flow Fan Blade brings the air from its back to its front, so there is no need to stare at the back of the fan for your desired airflow direction if you use the Reverse High Air Flow Fan Blades.

Don't turn your back ever again!

Unleash the power of your fans, let the front steal the show!

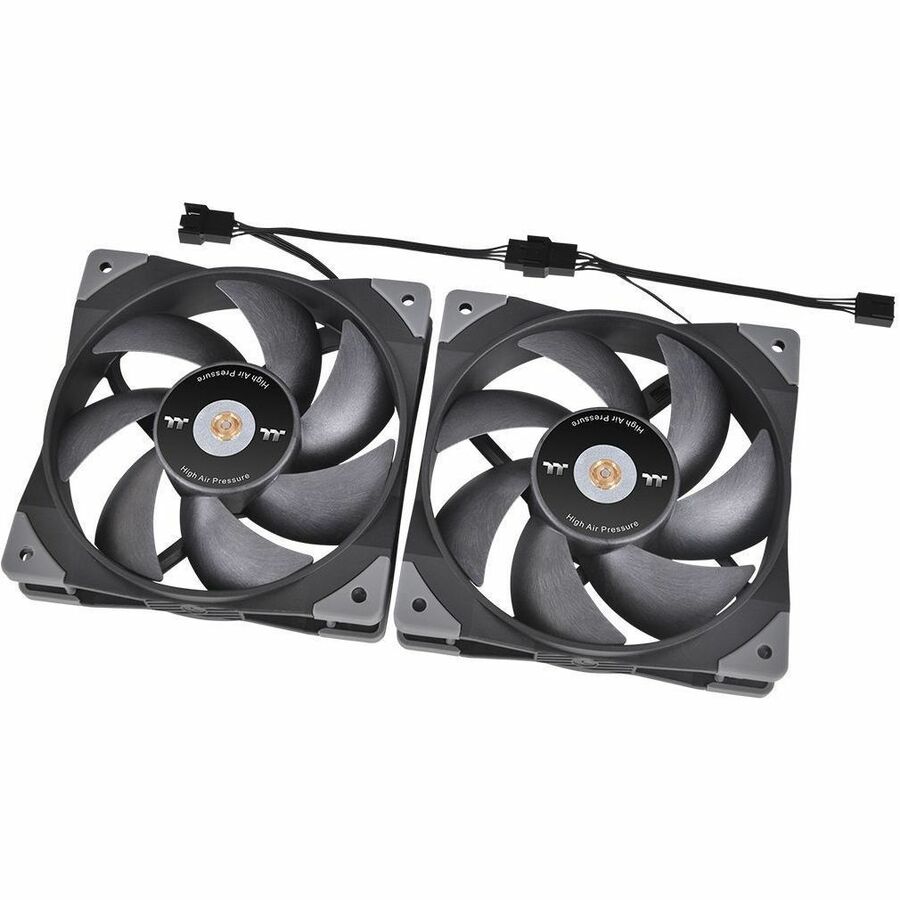

Less Cables, Less Mess

Incorporates the new cable-integrated daisy-chain design allows the fans to be directly connected, so it minimizes demands of 3-pin PWM ports on your motherboard and shortens the cable length between the fans. We've also included two 900mm cables for you to easily manage your cables while assembling your build.

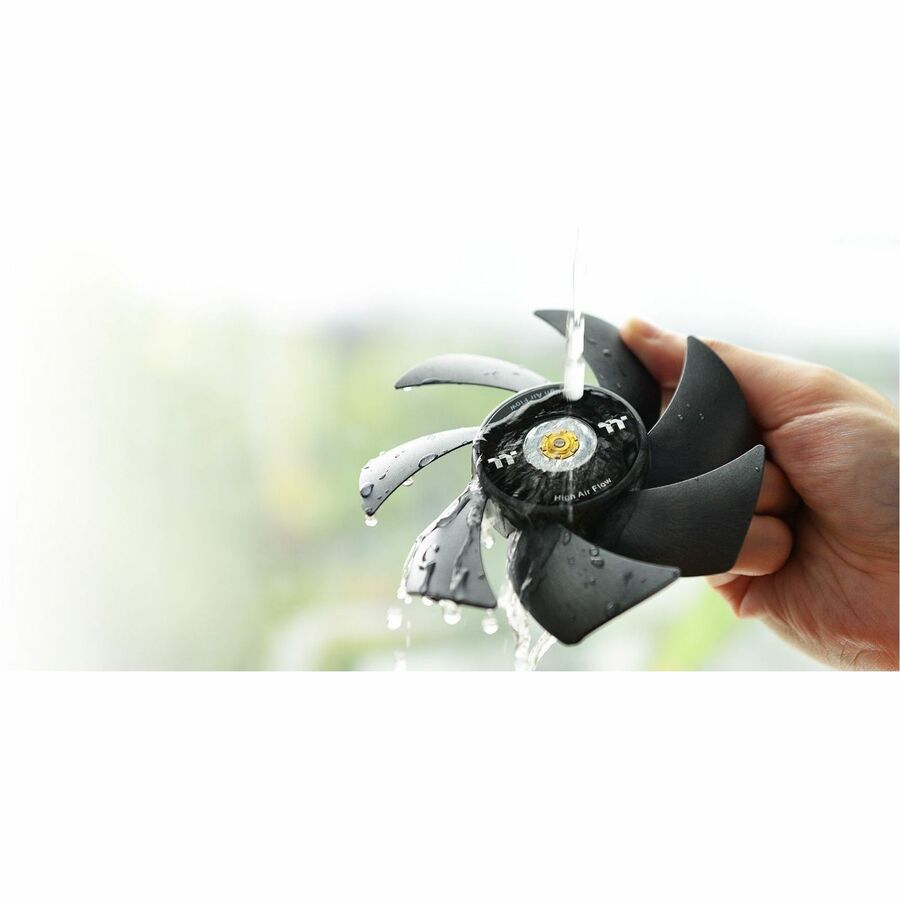

Cleaning Fans are now Easy and Fun!

Pop and insert, it is that easy.

If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply bearing lubricant that is include in the package if needed.

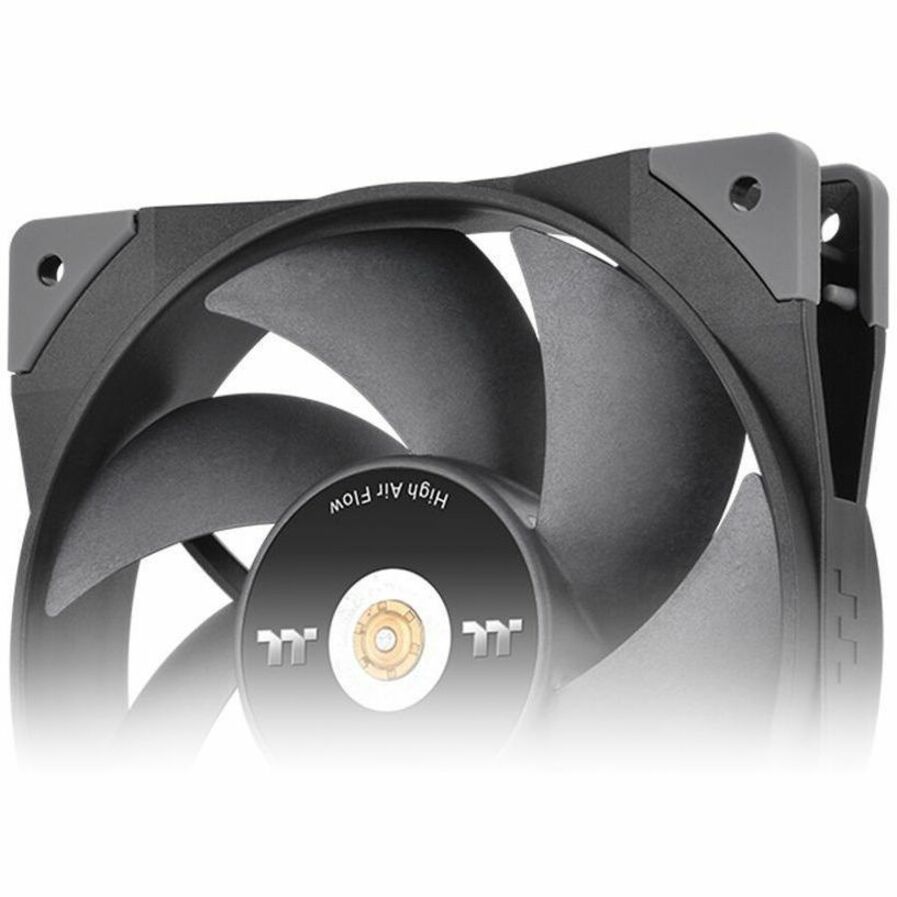

Anti-Vibration Mounting System

The anti-vibration rubber pad that can dampen the fan's vibration, allowing the fan to spin at higher levels without generating high noise levels. The rubber pads are designed to cover a large surface of all corners, maintaining low noise levels when in operation.

Main Specification
General Information
Manufacturer Thermaltake Technology Co., Ltd
Manufacturer Part Number CLF155PL12BLA
Manufacturer Website Address http://www.thermaltakeusa.com
Brand Name Thermaltake
Product Line SWAFAN GT12
Product Name SWAFAN GT12 Cooling Fan
Packaged Quantity 1
Product Type Cooling Fan
Fan Information
Number of Fans 1
Fan Bearing Type Hydraulic Bearing
Fan Speed (Min) 500 rpm
Fan Speed (Max) 2000 rpm
Maximum Airflow 62.23 CFM
Noise Levels (A-Weighted) 29.8 dB(A)
Fan Life 4.6 Year
Maximum Air Pressure 3.17mmH2O
Interfaces/Ports
Connectors 2510-4pin
Power Description
Rated Current 160 mA
Physical Characteristics
Maximum Fan Diameter 4.72"
Fan Height 4.72"
Fan Width 4.72"
Fan Depth 0.98"
Miscellaneous
Package Contents
  • SWAFAN GT12 Cooling Fan
  • 2 x 900mm Cables
Application/Usage PC
Application/Usage Motherboard
Application/Usage Case
