SEH M07250 IH-304-USB HUB 4 PORTS USB 3.0 DIN RAIL MOUNT
Mfg Part Number: M07250 , Item #: 4948536
, PO and Wire.
The USB Hub for Specialized Industry Applications
Use Several USB Devices on One Port
The IH-304 is a USB hub specifically designed for industrial environments. With the IH-304 you can use up to 4 USB devices on one single USB port. That way you save valuable space in control cabinets and server racks! USB 3.0 SuperSpeed guarantees fastest transmission of USB data. In addition, the USB ports can be used for charging USB devices.
Perfect Industrial Fit

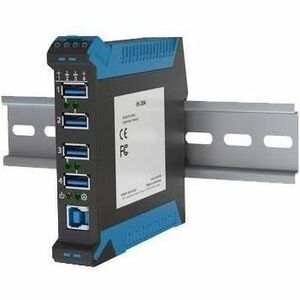

The integration of the IH-304 into your industrial environment is seamless: the device in a top-hat rail housing is to be mounted on a rail (according to DIN EN 60715; 35 mm wide). This makes installing the IH-304 in a control cabinet or server rack really easy. The robust design of the IH-304 guarantees a long life and maximized failure-free availability in your industrial environment. The parallel connection to two power supplies makes the IH-304 reliable and highly available. As a standard USB hub the IH-304 does not need special software (plug&play). The integrated overvoltage protection safely guards the connected USB devices against too high voltages (e.g. from faulty power supplies, lightning strikes or switching operations).
Added-Value through Combination
The industrial USB Deviceserver INU-100 embeds USB devices into TCP/IP networks in industrial environments. Almost every USB device can be used flexibly and independent of location with the INU-100 just as your individual environment requires it. If you connect the IH-304 to a USB port of the INU-100, you cost-effectively expand the number of USB devices which can be connected. The expansion is easy and fast as IH-304 and INU-100 complement each other perfectly!
Your Benefits
- Reliable and durable
- Cost-effective and simple expansion of USB ports
- Top compatibility with USB devices
- USB 3.0 ports can be used for charging
- Overvoltage protection
- Compact and space-saving design
Fields of Application
Extension of USB ports in industrial environments, e.g. for
- Automation
- Manufacturing
- Process contro
- And many more!
| General Information | |
| Manufacturer | SEH Technology, Inc |
| Manufacturer Part Number | M07250 |
| Manufacturer Website Address | http://www.seh.de |
| Brand Name | SEH |
| Product Model | IH-304 |
| Product Name | IH-304 USB Hub |
| Product Type | USB Hub |
| Technical Information | |
| Host Interface | USB 3.0 Type B |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Physical Characteristics | |
| Height | 4.4" |
| Width | 0.9" |
| Depth | 4.5" |
| Weight (Approximate) | 4.94 oz |
| Miscellaneous | |
| Country of Origin | Germany |
