NETGEAR

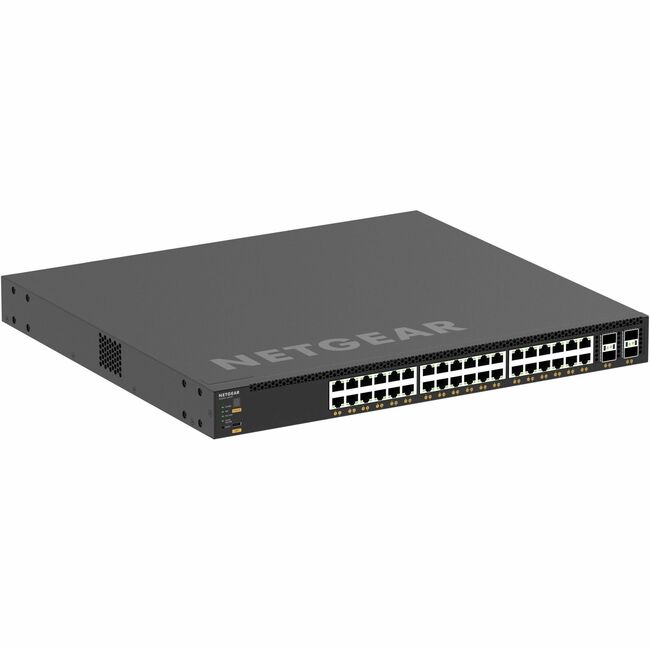

NETGEAR XSM4340CV-100NES M4350-36X4V MANAGED SWITCH
Mfg Part Number: XSM4340CV-100NES , Item #: 4947590
, PO and Wire.
POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OFTHE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
PRO AV RESOURCES
? All the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.| General Information | |
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | XSM4340CV100NES |
| Manufacturer Website Address | http://www.netgear.com |
| Brand Name | Netgear |
| Product Series | M4350 |
| Product Name | 36x10G/Multi-Gig PoE++ (280W base, up to 1,760W) and 4xSFP28 25G Managed Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 36 |
| Uplink Port | Yes |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x 25 Gigabit Ethernet Expansion Slots |
| Port/Expansion Slot Details | 36 x 10 Gigabit Ethernet Expansion Slots |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 25 Gigabit Ethernet |
| Network Technology | 25GBase-X |
| Network Technology | 10GBase-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP28 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.3bt |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 1760 W |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 148 W |
| Plug/Connector Type | C14 |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Desktop |
| Form Factor | Rack-mountable |
| Form Factor | Table Top |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 15.7" |
| Weight (Approximate) | 16.16 lb |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | Lifetime |
