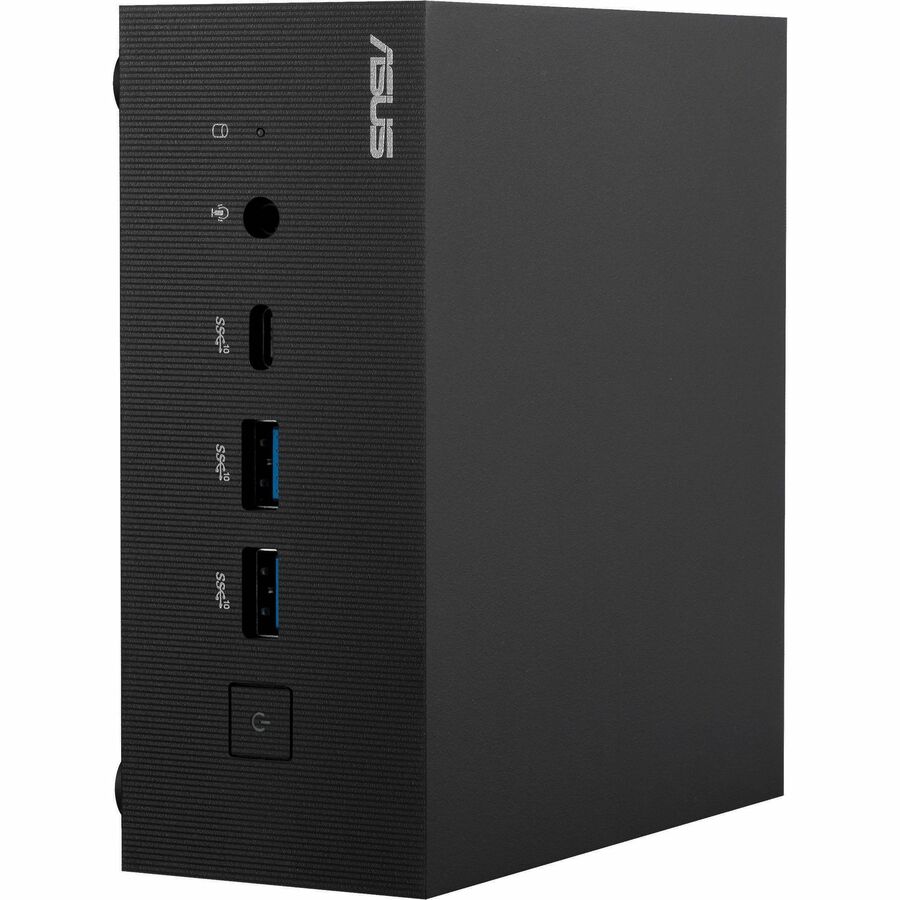

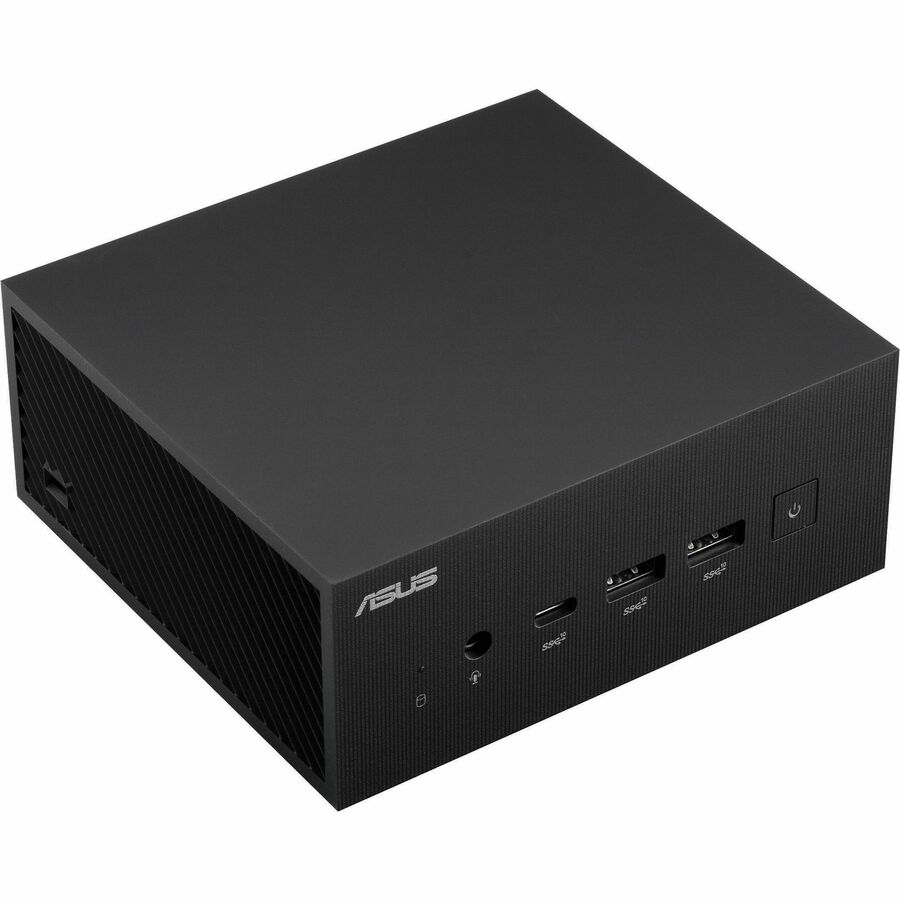

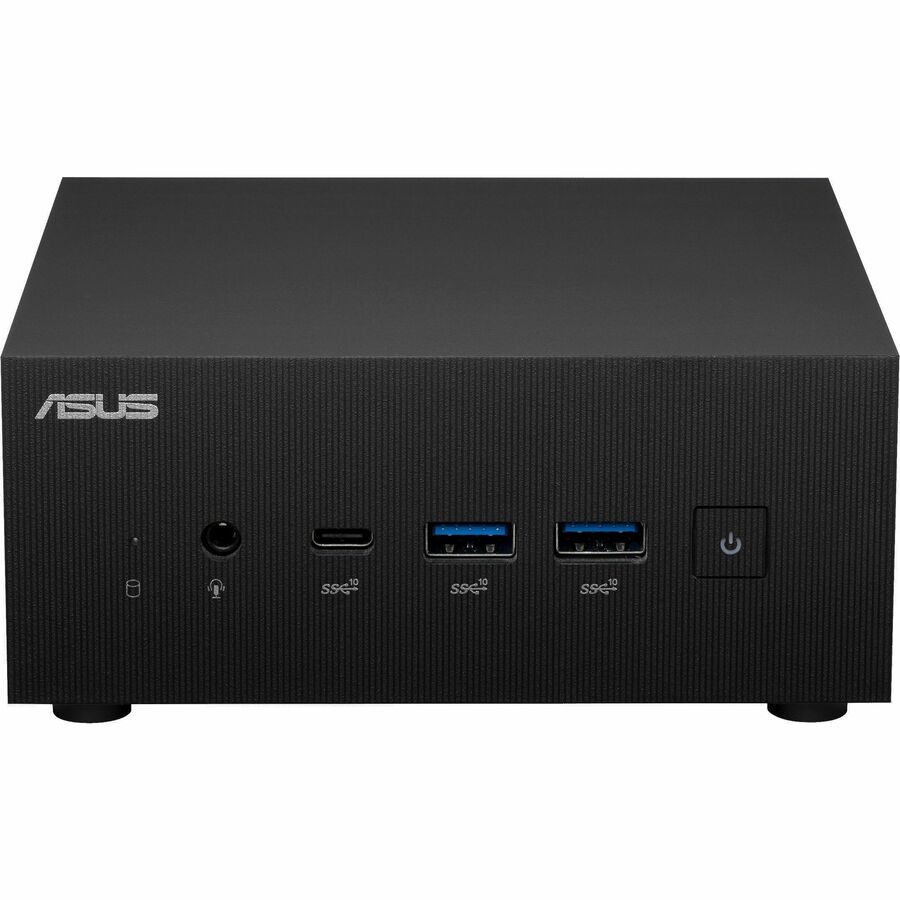

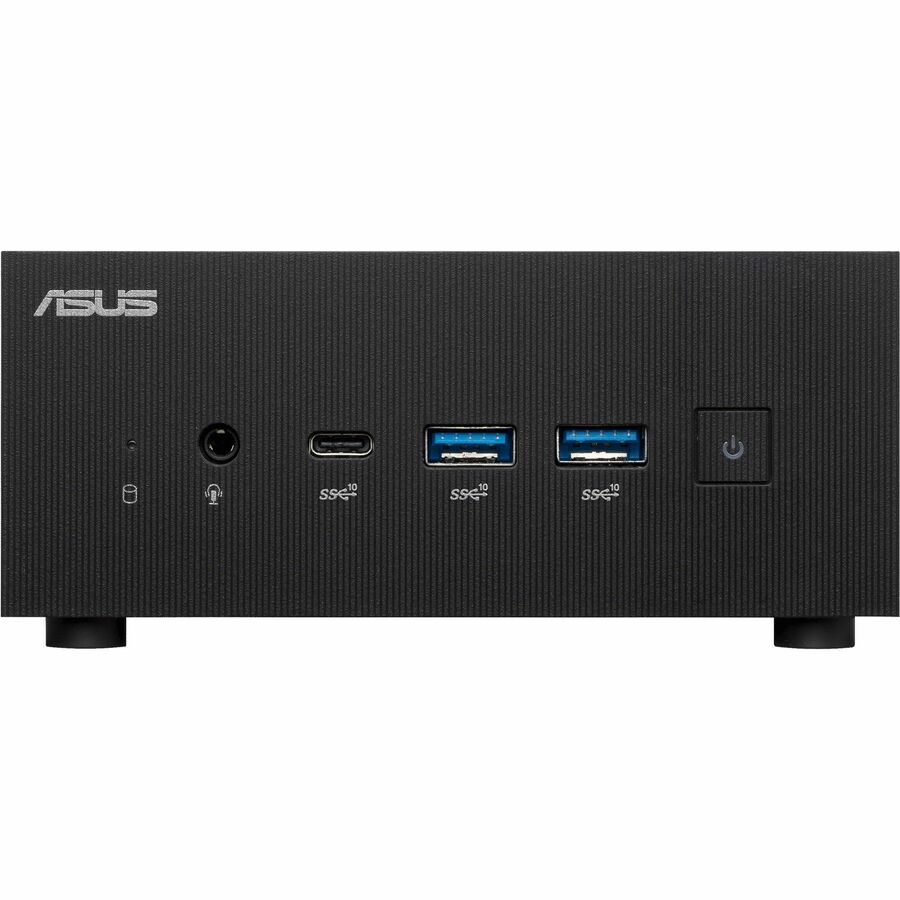

ASUS EXPERTCENTER PN64 MINI PC PN64-E1-BB7000X1TDR-NL BAREBONES INTEL I7 13700H 2 HDM
Mfg Part Number: PN64-E1-BB7000X1TDR-NL , Item #: 4944214
, PO and Wire.
Flexible Ultracompact Mini PC for Business and Industrial Use
ASUS ExpertCenter PN64-E1 is no lightweight when it comes to performance, boasting the latest 13th Gen Intel® Core™ CPU with Intel® Iris® Xe graphics. It can be specified in a variety of multi-storage combinations, including an ultrafast PCIe® Gen 4 SSD for rapid boot-up and app load times.
Powerful Performance for Daily Multitasking
The latest 13th Gen Intel® Core™ processors deliver outstanding computing performance, enabling PN64-E1 to tackle intensive business tasks with ease.
Stunning Graphics
ASUS ExpertCenter PN64-E1 features class-leading graphics performance, powered by Intel® Iris® Xe Graphics.
Extreme Cooling
To cope with the heat generated by the high-performance 13th Gen Intel® Core™ processor, PN64-E1 features a specially designed cooling system. This system consists of a self-cleaning fan module with flat heat pipes connected to full-size heatsinks, along with fan vents that are larger than those commonly found on mini PCs. All of this keeps the CPU operating at optimal temperatures.
Anti-Dust Self-Cleaning System
The innovative self-cleaning system in PN64-E1 keeps the heatsinks clean and also effectively ejects dust and other particles to prolong the lifespan of the system. Since the fan is never overworked, the noise generated from the fan is reduced.
The principle of centrifugal force acts upon the dust or particles moving in the circular path within the fan, which is effectively pushed away from the axis of the rotation and enters the anti-dust tunnels.
Dust and other particles in the fan module are blown along the fan walls, and eventually expelled out of the chassis through the anti-dust tunnels. This prevents buildup on the heatsink fins.
Thunderbolt™ 4
Thunderbolt™ 4 brings Thunderbolt to USB Type-C at speeds up to 40 Gbps, along with DisplayPort and USB 3.2 Gen2 support. It's even compatible with USB4, creating one compact port that does it all - delivering the fastest, most versatile connection to any dock, display, or data device.
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PN64E1BB7000X1TDRNL |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus |
| Product Line | ExpertCenter |
| Product Series | PN64 |
| Product Model | PN64-E1-BB7000X1TDR-NL |
| Product Name | PN64-E1-BB7000X1TDR-NL Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Installed | 1 |
| Processor Type | Core i7 |
| Processor Generation | 13th Gen |
| Processor Model | i7-13700H |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Interfaces | PCI Express 4.0 x4 |
| Supported Storage Drive Types | SSD |
| Supported Storage Drive Types | HDD |
| Controllers | |
| Controller Type | NVMe |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 1 |

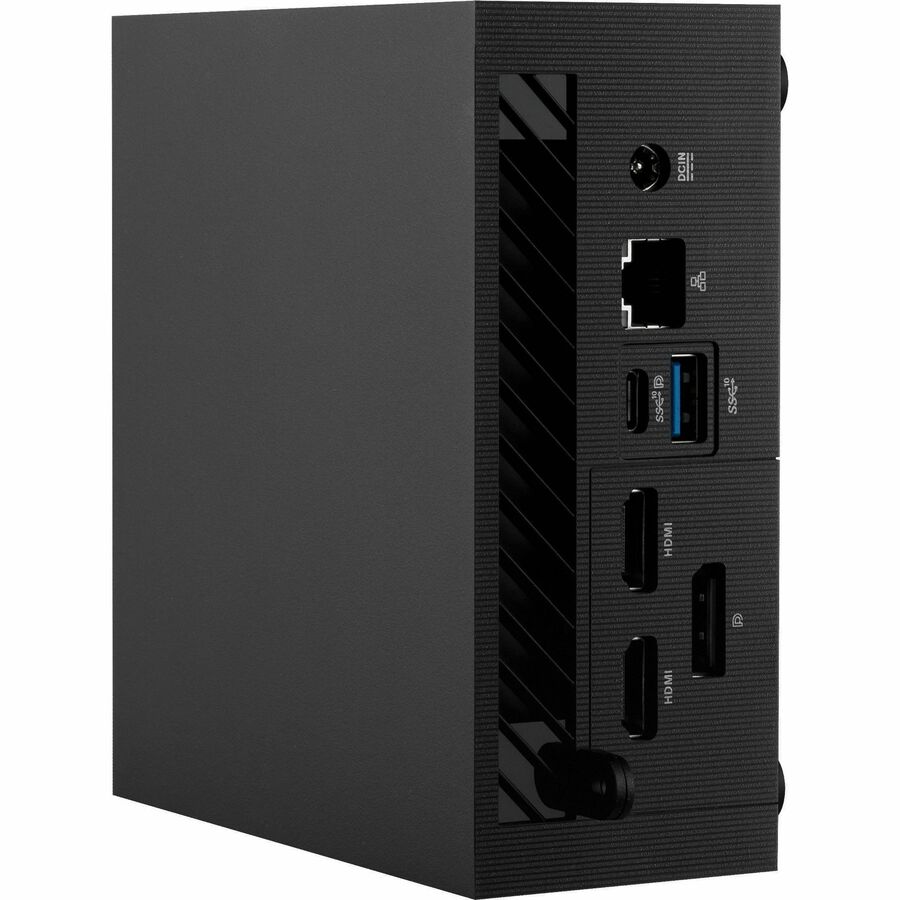

| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SATA Interfaces | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Supported | Windows 11 Pro |
| Operating System Supported | Windows 11 Home |
| Operating System Supported | Windows 10 IoT Enterprise |
| Operating System Supported | Windows 10 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Thermal Design Power | 35 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Eco Black |
| Form Factor | Mini PC |
| Height | 2.3" |
| Width | 4.7" |
| Depth | 5.1" |
| Weight (Approximate) | 1.65 lb |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
