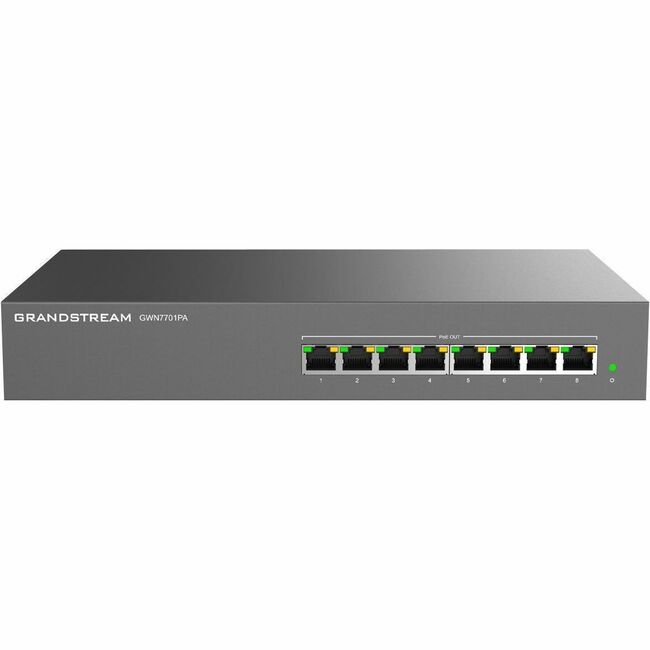

GRANDSTREAM GWN7701PA LAYER 2 UNMANAGED SWITCH, 8 X GIGE, PLASTIC CASE
Mfg Part Number: GWN7701PA , Item #: 4940548
, PO and Wire.
Unmanaged Network Switches
The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
- 5 and 8 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA)
- Green technology reduces power consumption
- LED Indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX crossover for all ports
- 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/ GWN7701PA only)
- Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Unlink clear FDB Feature (GWN7701/GWN7701P/ GWN7701PA only)
- QoS - Supports Default Strict Priority when present
| General Information | |
| Manufacturer | Grandstream Networks, Inc |
| Manufacturer Part Number | GWN7701PA |
| Manufacturer Website Address | http://www.grandstream.com |
| Brand Name | Grandstream |
| Product Series | GWN7700 |
| Product Model | GWN7701PA |
| Product Name | GWN7700 GWN7701PA Ethernet Switch |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Plug and Play |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x 10/100/1000Base-T Gigabit Ethernet PoE RJ-45 Network Port |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Maximum Data Transfer Rate | 12.50 MB/s |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.3i |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3af |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 145 W |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Power Source | PoE+ |
| Power Source | Power Adapter |
| Redundant Power Supply Supported | No |
| Power Consumption | 6.70 W |
| Physical Characteristics | |
| Product Material | Metal |
| Compatible Rack Unit | 1U |
| Form Factor | Desktop |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Height | 1.7" |
| Width | 7.1" |
| Length | 11" |
| Weight (Approximate) | 3.31 lb |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Network |
| Application/Usage | IP Phone |
| Application/Usage | Office |
| Application/Usage | Wireless Access Point |
| Application/Usage | IP Camera |
| Application/Usage | Home Office |
| Application/Usage | Business |
| Certifications & Standards |
|
