SUPERMICRO

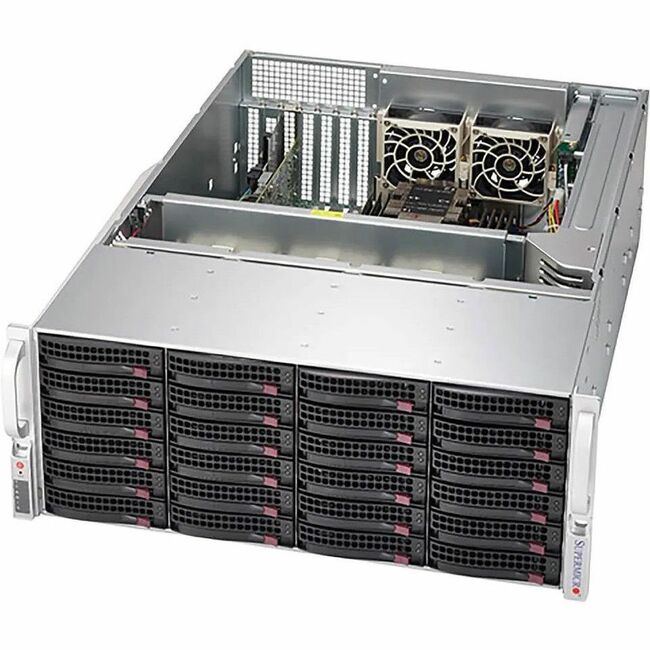

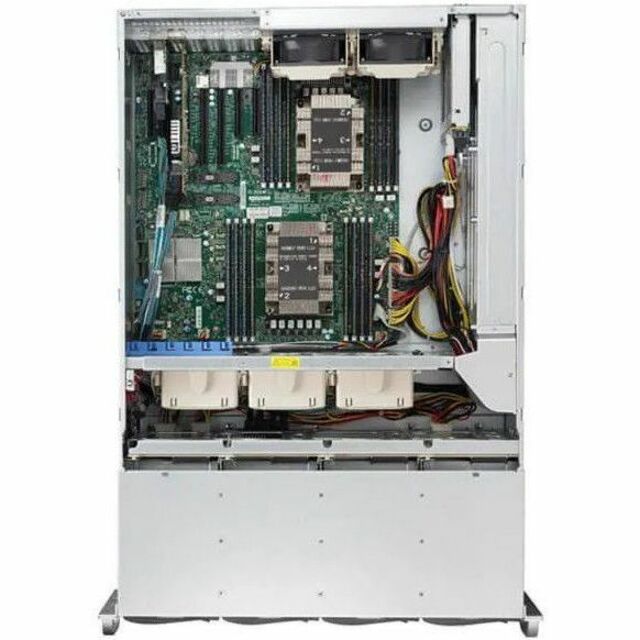

Supermicro SV SSG-640P-E1CR24H Xeon SocketP+ LG4189 24x3.5 2.5HS 1200W

Mfg Part Number:  SSG-640P-E1CR24H
Image may not reflect the actual item.
Price: $5,746.22 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Aug 17, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
General Information
Manufacturer Supermicro Computer, Inc
Manufacturer Part Number SSG640PE1CR24H
Manufacturer Website Address http://www.supermicro.com
Brand Name Supermicro
Product Line SuperServer
Product Model 640P-E1CR24H
Product Name Storage SuperServer SSG-640P-E1CR24H
Product Type Server Barebone System
Processor
Number of Processors Supported 2
Processor Socket Socket LGA-4189
Processor Supported Xeon
64-bit Processing Yes
Chipset
Chipset Manufacturer Intel
Chipset Model C621A
Memory
Maximum Memory Supported 4 TB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-3200/PC4-25600
Total Number of Memory Slots 16
Storage
Supported Storage Drive Interfaces Serial ATA
Supported Storage Drive Interfaces SAS
Supported Storage Drive Interfaces PCI Express
Supported Storage Drive Types SSD
Supported Storage Drive Types HDD
Controllers
Controller Type NVMe
Controller Type 12Gb/s SAS
Controller Type Serial ATA
Network & Communication
Ethernet Technology Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays 26
Number of 3.5" Bays 24
Total Number of Expansion Slots 4
Number of PCI Express x8 Slots 1
Number of PCI Express x16 Slots 3
Number of M.2 Interfaces 1
Interfaces/Ports
Total Number of USB Ports 4
Number of USB 3.0 Ports 4
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
Number of VGA Ports 1
Power Description
Input Voltage 230 V AC
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1200 W
Frequency 50 Hz
Frequency 60 Hz
Physical Characteristics
Color Family Black
Product Color Black
Form Factor Rack-mountable
Rack Height 4U
Height 7"
Width 17.2"
Depth 26"
Weight (Approximate) 86 lb
Miscellaneous
Package Contents
  • Storage SuperServer SSG-640P-E1CR24H
  • 1 x Super X12DPi-NT6 Motherboard
  • 1 x 4U Chassis
  • 1 x 8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp,RoHS
  • 1 x 8-port Mini SAS HD Int-to-Ext Cable Adapter w/FH Bracket
  • 1 x 4U 24-Port LFF Expander Backplane support up to 16 SAS3/SATA3 and 8 SAS3/SATA3/NVMe Storage Media
  • 1 x 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
  • 2 x Big 4 Pin Male to Big 4 Pin Female, Power Extension 15cm
  • 2 x Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s
  • 1 x Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS
  • 1 x STD I/O shield for X9 socket R server MB with Gasket.
  • 1 x License key for enabling OOB BIOS management
  • 2 x 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
  • 2 x AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
  • 1 x PDB with 23pairs input connector support SC846B
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Additional Warranty Information

Supermicro provides a three-year warranty for labor and one-year warranty for parts.
