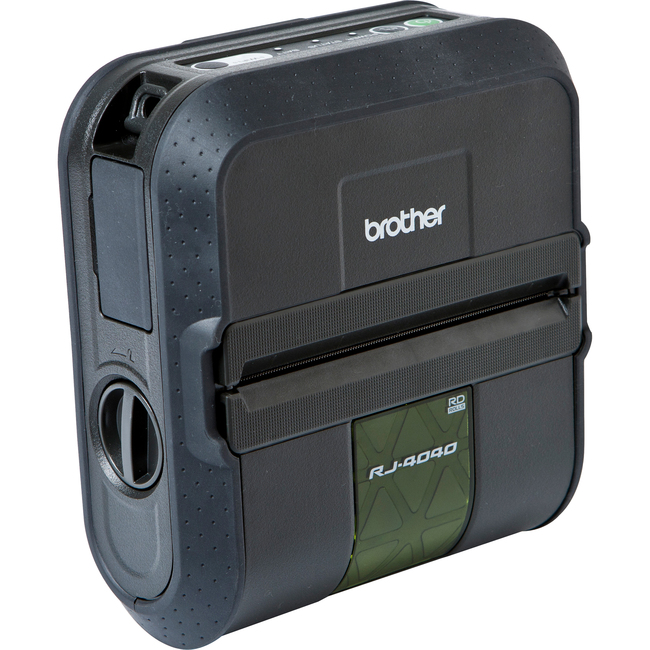

The Brother RuggedJet mobile printers are designed to be fast, tough, and more versatile than the competition with print speeds up to 5 ips, fast throughput, IP54 certification, 6 ft. drop protection, and the ability to print receipts or labels with one printer. Our industry leading, "bumper-to-bumper" warranty* covers you against defects or damage for two full years. RuggedJet RJ-4040 printers feature USB, serial, and WiFi wireless interfaces, a wide selection of resident and downloadable fonts, support for the major linear and 2D barcodes, optional magnetic card reader, and much more. RuggedJet mobile printers offer a competitive combination of value, ergonomic design, reliability, and ease of use. This one printer can be used for a wide range of receipt and label printing applications in public safety, field service, route accounting, manufacturing and warehouse markets and more.
| General Information | |
| Manufacturer | Brother Industries, Ltd |
| Manufacturer Part Number | RJ4040CA-K |
| Manufacturer Website Address | http://www.brother-usa.com |
| Brand Name | Brother |
| Product Line | RuggedJet |
| Product Model | RJ4040 |
| Product Name | RuggedJet RJ4040 Label Printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 5 in/s |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 4.09" |
| Barcode Symbology Supported | UPC-E |
| Barcode Symbology Supported | EAN With 2 or 5 Digit Extension |
| Barcode Symbology Supported | Codabar |
| Barcode Symbology Supported | Interleaved 2 of 5 |
| Barcode Symbology Supported | POSTNET |
| Barcode Symbology Supported | RSS14 Stacked |
| Barcode Symbology Supported | Maxi Code |
| Barcode Symbology Supported | Data Matrix ECC Square |
| Barcode Symbology Supported | UPC 2 or 5 Digit Extension |
| Barcode Symbology Supported | GS1 DataBar |
| Barcode Symbology Supported | RSS Expanded |
| Barcode Symbology Supported | PDF-417 |
| Barcode Symbology Supported | Truncated PDF417 |
| Barcode Symbology Supported | Data Matrix ECC Rectangular |
| Barcode Symbology Supported | Code 128 |
| Barcode Symbology Supported | RSS-14 |
| Barcode Symbology Supported | RSS Limited |
| Barcode Symbology Supported | Micro PDF-417 |
| Barcode Symbology Supported | Code 39 |
| Barcode Symbology Supported | EAN-8 |
| Barcode Symbology Supported | EAN-13 |
| Barcode Symbology Supported | UCC/EAN 128 |
| Barcode Symbology Supported | RSS14 Truncated |
| Barcode Symbology Supported | RSS Expanded Stacked |
| Barcode Symbology Supported | QR Code Model 2 |
| Barcode Symbology Supported | QR code Model 1 |
| Barcode Symbology Supported | UPC-A |
| Barcode Symbology Supported | GS1-128 |
| Barcode Symbology Supported | RSS14 Stacked Omni |
| Barcode Symbology Supported | QR Code |
| Features | Dust Resistant |
| Features | Water Resistant |
| Features | Drop Resistant |
| Print Technology | Direct Thermal |
| Memory | |
| Standard Memory | 32 MB |
| Flash Memory | 16 MB |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11b/g/n |
| Media Types & Handling | |
| Media Type | Fanfold |
| Media Type | Receipt |
| Media Type | Label |
| Maximum Roll Diameter | 2.38" |
| Maximum Label Width | 4" |
| Fonts & Emulation | |
| Language Emulation | ZPL II |
| Language Emulation | ESC/P |
| Power Description | |
| Power Source | Battery |
| Input Voltage | 14.4 V DC |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Included | Yes |
| Battery Rechargeable | Yes |
| Physical Characteristics | |
| Form Factor | Portable |
| Height | 6.9" |
| Width | 6.4" |
| Depth | 3" |
| Weight (Approximate) | 0.07 oz |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Certifications & Standards | IP54 |
| Warranty | |
| Limited Warranty | 2 Year |
