PD9531-HPE DATALOGIC POWERSCAN PD9531 HIGH PERFORMANCE 10-30VDC

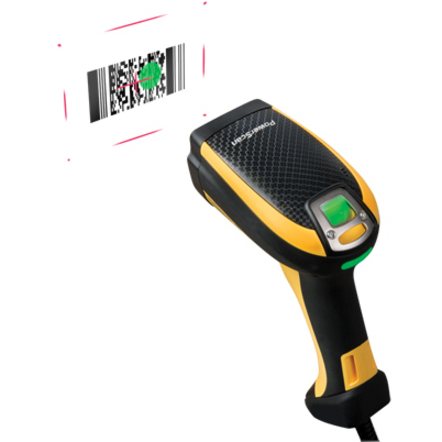

AIM, TRIGGER, DECODE: IT'S THAT SIMPLE!

An intuitive and effortless scanning experience is the target of the PowerScan™ 9500 family. It combines omnidirectional reading capabilities, which is typical in all area imaging scanners, with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, the PowerScan PD9500 area imager includes Datalogic's latest decoding software that guarantees snappy reading in any type of environment. Aim, trigger, decode: it is that simple!

DEVELOPED WITH THE USER IN MIND

User comfort is guaranteed because of the scanner ergonomics, consisting of the handle shape, a well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement or rotation which can tire any user during long shifts. Additionally, the PowerScan 9500 area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.

BUILT TO LAST

The rugged mechanics of the PowerScan family guarantee reliable operation in the long term. Repeated shocks and indoor / outdoor usage in the toughest environmental conditions do not modify the scanners performance or reliability

General Information
Manufacturer	Datalogic S.p.A
Manufacturer Part Number	PD9531-HPE
Manufacturer Website Address	http://www.datalogic.com
Brand Name	Datalogic
Product Line	PowerScan
Product Series	PD9500
Product Model	PD9531

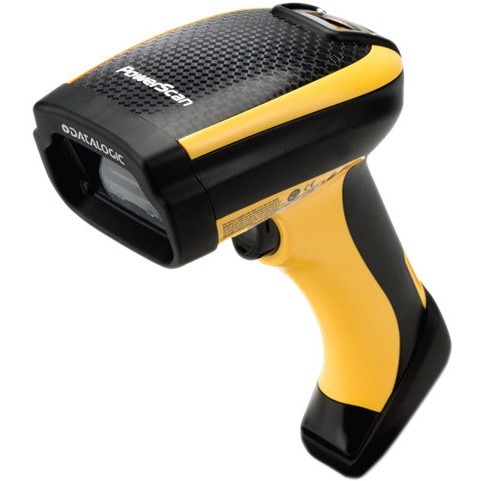

Product Name	PowerScan PD9531 Handheld Barcode Scanner
Product Type	Barcode Scanner
Technical Information
Connectivity Technology	Cable
Scanning Capability	2D
Scanning Capability	1D
Barcode Symbology Supported	1D: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Postal Codes: Australian Post China Post IMB; Japanese Post KIX Post Planet Code Portuguese Post Postnet Royal Mail Code (RM4SCC) Swedish Post Stacked Codes: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites
Image Sensor Type	Imager
Interfaces/Ports
Host Interface	USB
Host Interface	Keyboard Wedge
Host Interface	Serial
Physical Characteristics
Form Factor	Handheld
Product Color	Black
Product Color	Yellow
Height	8.3"
Width	2.9"
Depth	4.3"
Weight (Approximate)	11.64 oz
