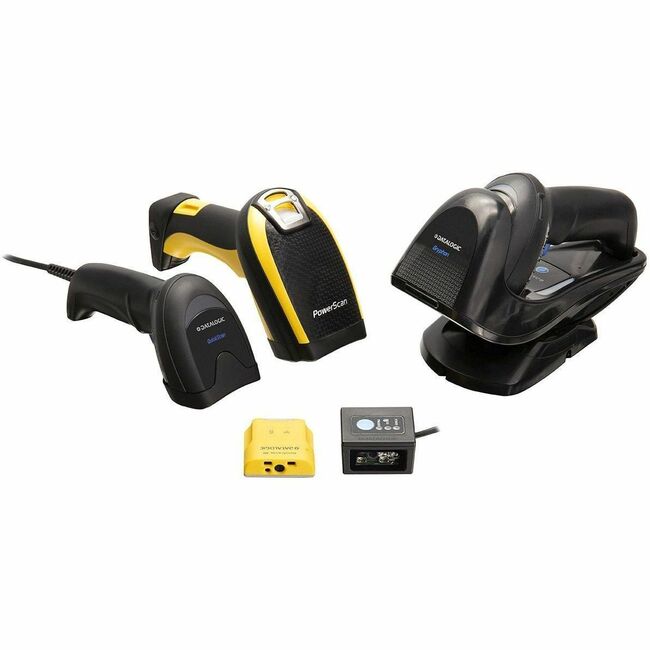

PM9501-DPM910RB DATALOGIC POWERSCAN PM9501, 910 MHZ, DIRECT PART MARKING EVO, REMOVABLE BATTERY

Mfg Part Number:  PM9501-DPM910RB
Image may not reflect the actual item.
Price: $1,309.95 + Free Shipping
Quantity:
In Stock: 1
Last Updated: Sep 01, 2025
No Sales Tax except these states
, PO and Wire.

AIM, TRIGGER, DECODE: IT'S THAT SIMPLE!

An intuitive and effortless scanning experience is the target of the PowerScan™ 9500 series. They combine omnidirectional reading capabilities with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, Datalogic's latest decoding software guarantees snappy reading in any type of environment.

MOBILITY ENHANCES PRODUCTIVITY

The Datalogic STAR Cordless System™ for narrow-band radio communications was developed specifically to maximize efficiency and reliability for handheld scanner data collection applications. The PowerScan PM9500 models are equipped with a new generation of the STAR-System that further improves the already outstanding features of versatility, ease of use and radio range. The PM9500 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications. The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.

DEVELOPED WITH THE USER IN MIND

Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort. The PowerScan 9500 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.

Main Specification
General Information
Manufacturer Datalogic S.p.A
Manufacturer Part Number PM9501DPM910RB
Manufacturer Website Address http://www.datalogic.com
Brand Name Datalogic
Product Line PowerScan
Product Series 9500
Product Model PM9501
Product Name PowerScan 9500 PM9501 Barcode Scanner Kit
Product Type Barcode Scanner Kit
Technical Information
Connectivity Technology Wireless
Scanning Capability 1D
Scanning Capability 2D
Barcode Symbology Supported
  • 1D : Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
  • 2D : Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
  • Postal Codes Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post;
  • Stacked Codes EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Light Source Laser
Image Sensor Type Imager
Depth of Field

Minimum distance determined by symbol length and scan angle; Printing resolution, contrast, and ambient light dependent.

Scan Pattern Area
Scan Pattern Omni-directional
Scanner Range Standard Range
Features Beep
Display Screen Yes
Cable Type Included USB
Stand Included Yes
Reading Angle (Skew) 40°
Reading Angle (Pitch) 40°
Reading Angle (Roll) 360°
Image Formats JPEG
Image Formats TIFF
Image Formats BMP
Maximum Ambient Light 100000 lux
Drop Specification

Cradle: Withstands 50 drops from 1.2 m / 3.9 ft onto a concrete surface

PM9500: Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface

Minimum Print Contrast 15%
Illumination Type LED
Illumination Color White
Air Electrostatic Discharge (+/-) 20kV
Network & Communication
Radio Frequency Yes
Interfaces/Ports
Host Interface Keyboard Wedge
Host Interface Serial
Host Interface Ethernet
Host Interface Multi-interface
Host Interface USB
Power Description
Input Current 150 mA
Battery Information
Battery Included Yes
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3350 mAh
Maximum Battery Recharge Time 4.50 Hour
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Color Family Dual Color
Product Color Yellow
Product Color Black
Miscellaneous
Ingress Protection (IP) Rating IP65
Application/Usage Warehouse
Application/Usage Picking
Application/Usage Asset Tracking
Application/Usage Logistics
Application/Usage Ticketing
Application/Usage Manufacturing
Application/Usage Inventory
