PM9600-HP910RBK10 DATALOGIC POWERSCAN PM9600-HP, HIGH PERFORMANCE, 910MHZ, USB KIT (KIT INCLUDES S

Mfg Part Number:  PM9600-HP910RBK10
Image may not reflect the actual item.
Price: $1,434.65 + Free Shipping
Quantity:
In Stock: 18
Last Updated: Sep 01, 2025
No Sales Tax except these states
, PO and Wire.

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

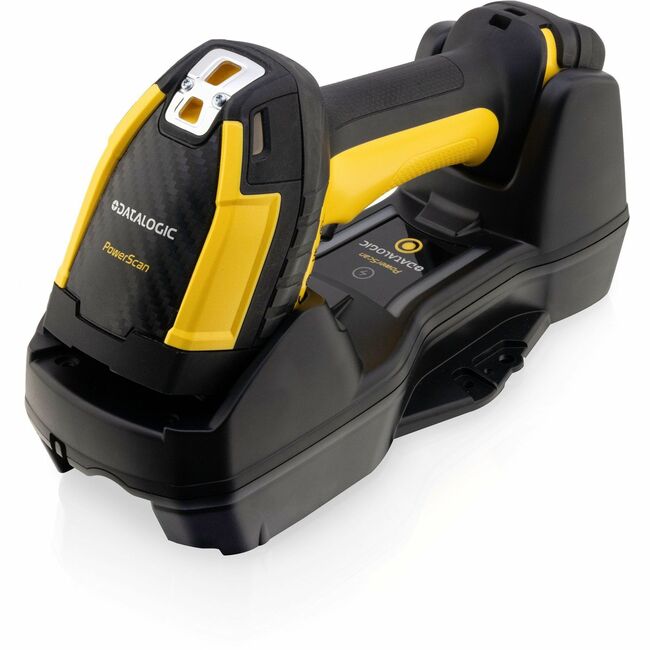

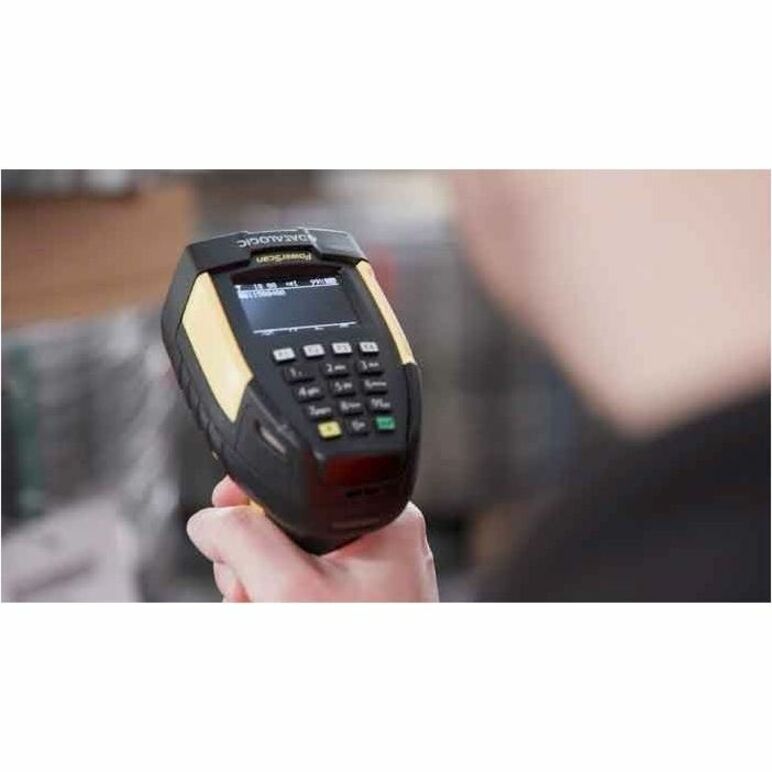

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

MODULARITY WITH THE BEST FLEXIBILITY

? The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

Main Specification
General Information
Manufacturer Datalogic S.p.A
Manufacturer Part Number PM9600HP910RBK10
Manufacturer Website Address http://www.datalogic.com
Brand Name Datalogic
Product Line PowerScan
Product Series 9600
Product Model PM9600-HP
Product Name PowerScan 9600 PM9600-HP Barcode Scanner Kit
Product Type Barcode Scanner Kit
Technical Information
Connectivity Technology Wireless
Scanning Capability 1D
Scanning Capability 2D
Barcode Symbology Supported

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot Code

Postal Codes:

  • Australian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Portuguese Post
  • Postnet
  • Royal Mail Code (RM4SCC)
  • Swedish Post.

Stacked Codes:

  • EAN/JAN Composites;
  • GS1 DataBar Composites;
  • GS1 DataBar Expanded Stacked;
  • GS1 DataBar Stacked;
  • GS1 DataBar Stacked Omnidirectional;
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes
Light Source LED
Image Sensor Type Imager
Scan Mode Trigger
Scan Pattern Area
Scan Pattern Omni-directional
Scanner Range Short Range
Scanning Distance 95.60"
Features Beep
Features Vibration
Features Notification LED
Cable Type Included USB
Field of View (Horizontal) 38°
Field of View (Vertical) 24°
Reading Angle (Skew) 52°
Reading Angle (Pitch) 52°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Drop Specification
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast 15%
Minimum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 10 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color White
Air Electrostatic Discharge (+/-) 20kV
Network & Communication
Radio Frequency Yes
Interfaces/Ports
Host Interface USB
Host Interface Keyboard Wedge
Host Interface Serial
Host Interface Multi-interface
Power Description
Power Supply Included Yes
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3350 mAh
Maximum Battery Recharge Time 3.20 Hour
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Color Family Dual Color
Product Color Yellow
Product Color Black
Durability Dust Resistant
Durability Water Resistant
Height 7.8"
Width 3.1"
Length 5.5"
Miscellaneous
Ingress Protection (IP) Rating IP65
Ingress Protection (IP) Rating IP67
Application/Usage Picking
Application/Usage Sorting
Application/Usage Packing
Application/Usage Industrial
Application/Usage Inventory
Application/Usage Logistics
Application/Usage Warehouse
Application/Usage Manufacturing
Application/Usage Component Tracking
