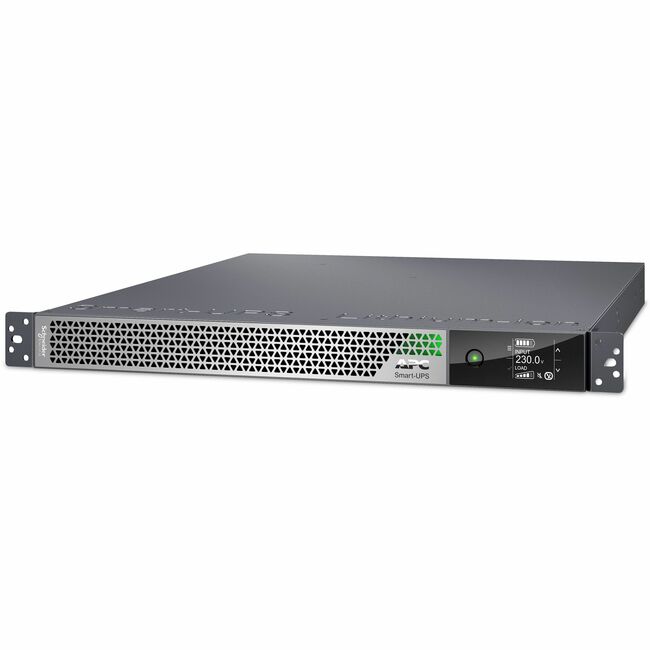

SRTL3KRM1UWNC APC SMART-UPS ULTRA, 3000VA 208+230V 1U, WITH LITHIUM-ION BATTERY, WITH NETWORK

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with IEC Inlet, 3x IEC C13 and 2x IEC C19 outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SRTL3KRM1UWNC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS Ultra
Product Name	Smart-UPS Ultra 3000VA Rack-mountable UPS
Packaged Quantity	1
Product Type	Dual Conversion Online UPS
Technical Information
Plug/Connector Type	British BS1363A
Receptacle Type	IEC 60320 C13
Receptacle Detail	2 x IEC 60320 C19
Receptacle Detail	3 x IEC 60320 C13
Cord Length	8 ft
Power Description
Load Capacity (VA)	3000 VA
Load Capacity (Watt)	3000 W
Input Voltage	208 V
Input Voltage	240 V
Input Voltage Range	208 V AC - 240 V AC
Input Voltage Range	160 V AC - 275 V AC
Output Voltage	240 V AC
Output Voltage	208 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Display & Graphics
Display	LCD
Management
Network Management	Network Card
Interfaces/Ports
USB	Yes
EPO Port	Yes
Battery Information
Battery Chemistry	Lithium Ion (Li-Ion)
Battery Size	50V
Battery Energy	1209.6 kJ
Backup/Run Time (Full Load)	4.60 Minute
Backup/Run Time (Half Load)	10 Minute
Typical Battery Recharge Time	1.50 Hour
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Storage Relative Humidity	95%
Sound Emission	55 dB
Physical Characteristics
Color Family	Silver
Product Color	Silver Gray
Height	1.7"
Width	17"
Depth	22"
Rack Height	1U
Form Factor	Rack-mountable
Weight (Approximate)	35.05 lb
Miscellaneous
Package Contents	Smart-UPS Ultra 3000VA Rack-mountable UPS RJ45 Cable
Certifications & Standards	CE
Product Take Back Program	No
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL3KRM1UWNC_ROHS_DECLARATION&p_FileName=SRTL3KRM1UWNCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567112361&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567112361&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1
REACH free of SVHC	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	5 Year
Additional Warranty Information	5 years repair or replace
