SCHNEIDER

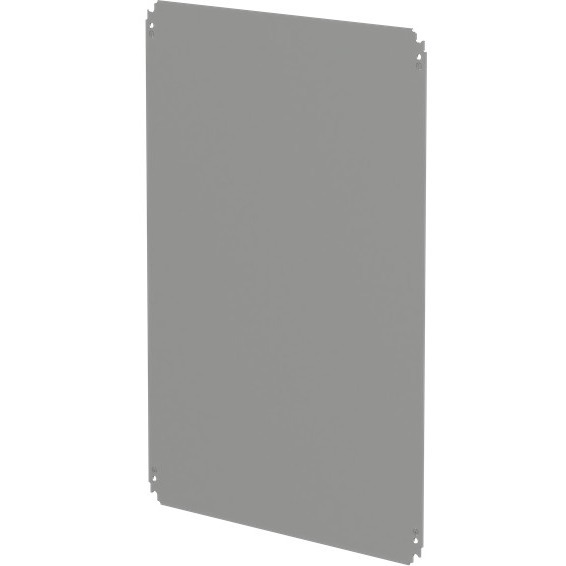

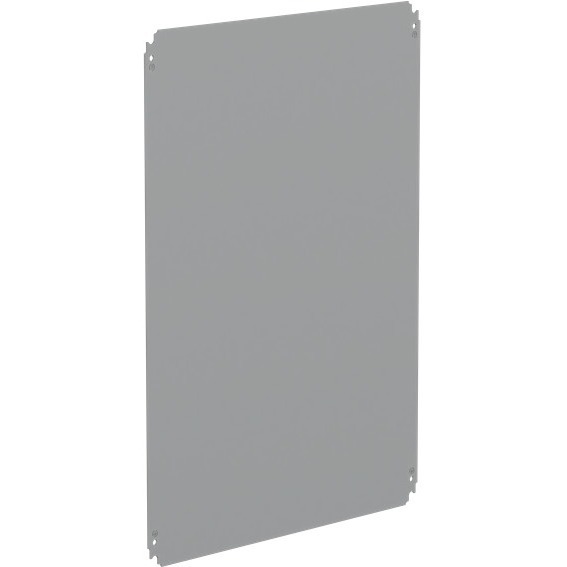

SCHNEIDER NSYMM86 Chassis plate for IP66 box, 750X550X3mm
Mfg Part Number: NSYMM86 , Item #: 4932830
Image may not reflect the actual item.
Price: $156.84
Quantity:
In Stock: 4
Last Updated: Apr 13, 2026
No Sales Tax except these states
, PO and Wire.
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is800 x W is600 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 135 Kg permissible load. Galvanised steel. Set of 1. Variant particularity is with enclosures H800 x W1200.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | NSYMM86 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | Schneider Electric |
| Product Line | Spacial |
| Product Name | Plain Mounting Plate H800xW600mm made of Galvanised Sheet Steel |
| Packaged Quantity | 1 Set |
| Product Type | Mounting Plate |
| Product Information | |
| Device Supported | Enclosure |
| Maximum Load Capacity | 297.62 lb |
| Features | Mercury-free |
| Physical Characteristics | |
| Finishing | Galvanized |
| Product Material | Sheet Steel |
| Height | 29.53" |
| Width | 21.65" |
| Depth | 4.92" |
| Thickness | 98.43 mil |
| Weight (Approximate) | 17.79 lb |
| Miscellaneous | |
| Compatibility | Schneider Electric Enclosures:
|
| Certifications & Standards | Free of Substances of Very High Concern above the threshold |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=NSYMM86_ROHS_DECLARATION&p_FileName=NSYMM86KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=10178714&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=10178714&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2202003EN |
| Country of Origin | Spain |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| For Country/Region | United States |
| Warranty | |
| Limited Warranty | 18 Month |
