TRENDnet
TRENDnet TEW-823DAP AC1300 DUAL BAND POE INDOOR WL ACCESS POINT
Mfg Part Number: TEW-823DAP , Item #: 4925543
, PO and Wire.
AC1300: Concurrent 867Mbps WiFi AC and 400Mbps WiFi N combined with Access Point and Repeater modes support multiple applications.
MU-MIMO FOR BUSY HOMES: MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.
SEAMLESS ROAMING: 802.11k provides a more efficient WiFi roaming environment by intelligently managing neighboring APs and passing mobile clients off to the next best access point; 802.11r preauthenticates those WiFi clients with neighboring APs making for a fast and seamless transition.
ACCESS POINT MODES: The access point supports Access Point (AP) and Repeater modes.
GIGABIT PORT: Gigabit PoE LAN port maintains high performance connections to the wired network
ENCRYPTED WIRELESS: Supports the latest WPA3 wireless encryption
BAND STEERING: Band steering alleviates network congestion by automatically directing wireless devices from the 2.4GHz band to the 5GHz band
LOW PROFILE DESIGN: The access point was designed with a low profile to more easily blend into most environments

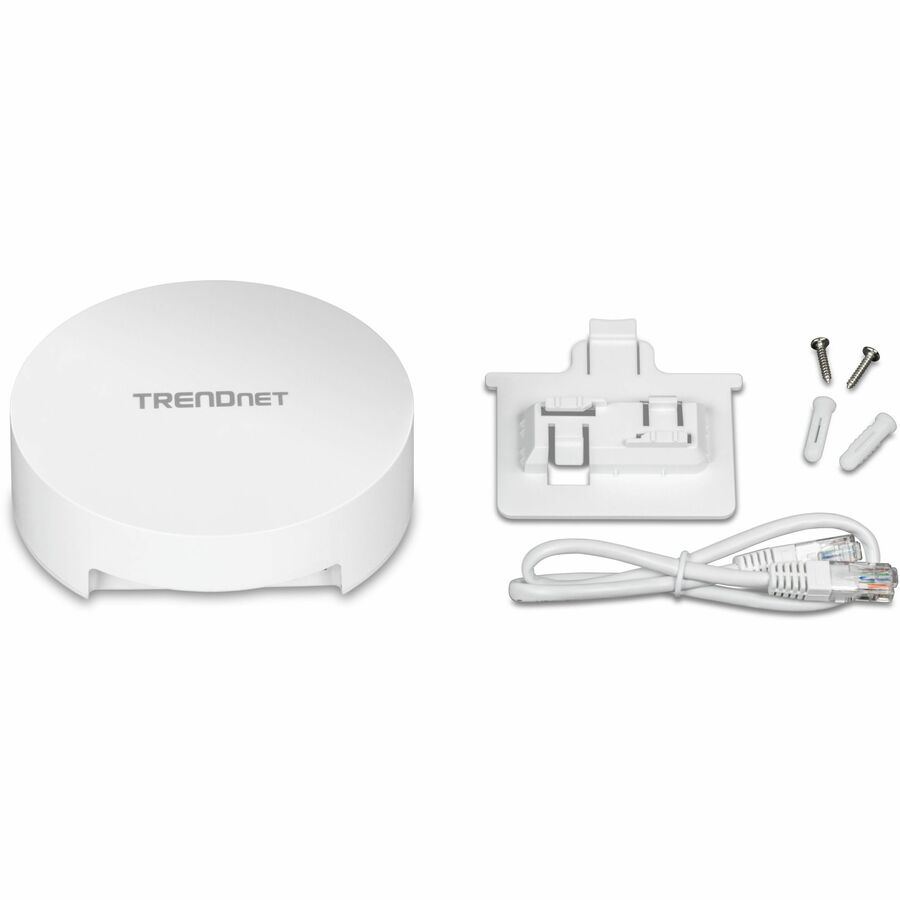

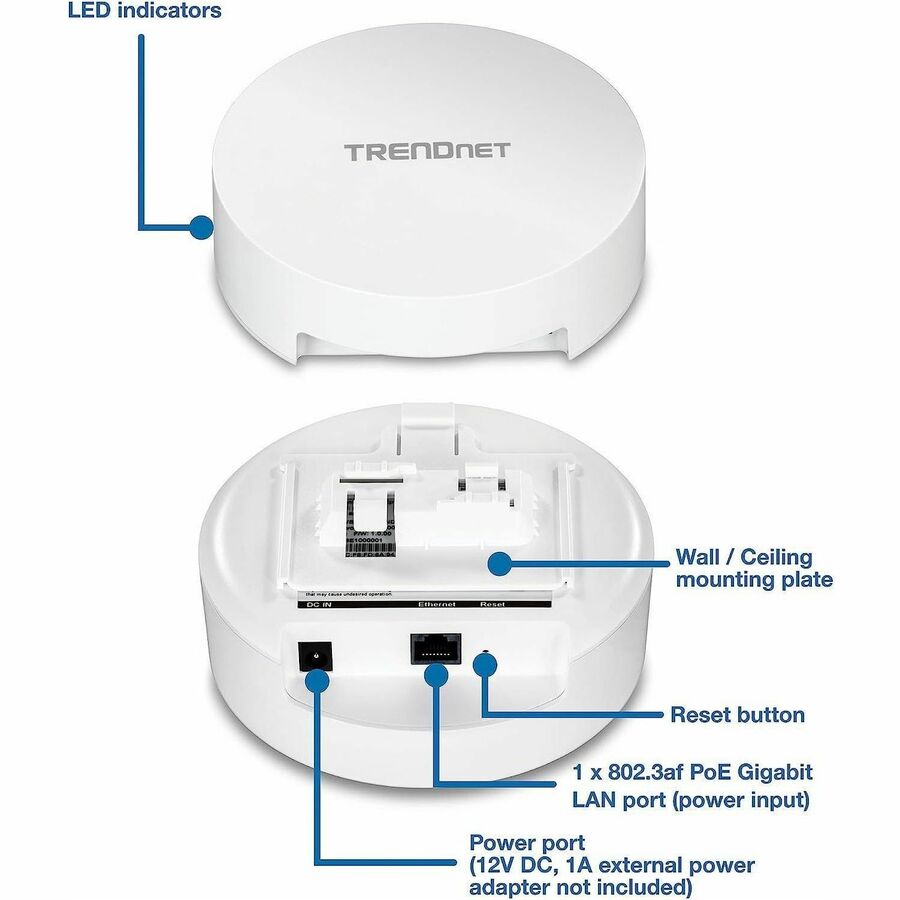

WALL & CEILING PLATES: Includes wall and ceiling mounting plates for easy installation
TRENDnet's high performance AC1300 Dual Band Indoor Wireless PoE Access Point, model TEW-823DAP, supports Access Point (AP and Repeater modes. This wireless indoor access point generates concurrent 867Mbps WiFi AC and 400Mbps WiFi N networks. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.The wireless access point features access control, bandwidth control, and band steering. The low-profile housing design blends into most environments and includes a convenient wall / ceiling mounting plate.
AC1300 WiFi
Two concurrent high-speed WiFi bands to maximize device networking speeds: 867Mbps WiFi AC on 5GHz and 400Mbps WiFi N on 2.4GHz.
Built For Busy Environments
MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.
Power over Ethernet (PoE)
Saves installation time and setup costs with gigabit PoE support, delivering power and data over one set of cables.
FEATURES | Concurrent Dual Band
AC1300: concurrent 867Mbps WiFi AC + 400Mbps WiFi N bands
Power over Ethernet (PoE)
Saves installation time and costs with gigabit PoE support
WiFi Operation Modes
Supports Access Point (AP) and Repeater modes.
Gigabit Port
Gigabit PoE LAN port maintains high performance connections to the wired network
Wireless Coverage
Extended wireless coverage with MU-MIMO antenna technology
MU-MIMO Performance
MU-MIMO technology enables the access point to process multiple data streams simultaneously, and increases real-time WiFi performance
| General Information | |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEW823DAP |
| Manufacturer Website Address | http://www.trendnet.com |
| Brand Name | TRENDnet |
| Product Name | AC1300 Dual Band PoE Indoor Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz |
| Frequency Band | 5 GHz |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 1.27 Gbit/s |
| MIMO Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA2 |
| Encryption Standard | WPA3-ENT |
| Encryption Standard | WPA3-PSK |
| Encryption Standard | WPA3 |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Power Description | |
| Power Consumption | 11.90 W |
| Physical Characteristics | |
| Form Factor | Plate Mountable |
| Form Factor | Ceiling Mountable |
| Form Factor | Wall Mountable |
| Antenna Form Factor | Internal |
| Height | 5.1" |
| Width | 5.1" |
| Depth | 1.8" |
| Weight (Approximate) | 6.63 oz |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
