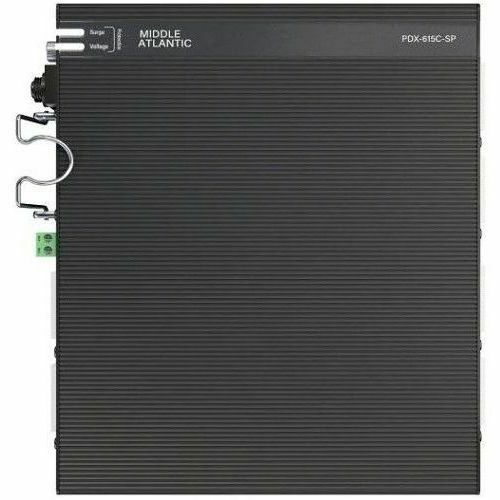

MIDDLE ATLANTIC PDX-615C-SP POWER DISTRIBUTION

The Middle Atlantic PDX-615C-SP is a compact NEXSYS PDU designed for 'behind-the-display' applications, particularly digital signage. It features (6) NEMA 5-15R outlets and operates at 15A. The PDU offers flexible mounting options with both clamp and L-brackets, which can be easily attached to a Lever Lock plate for tool-free installation inside a rack, kiosk, or in-wall box. It includes Series stage MOV surge protection with 3 stages and visual indicators of surge status on the front and side. The selectable on/off voltage protection from the dry contact port helps safeguard sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the power is within the acceptable range. The PDU also supports cleaner cable management with a standard 2ft power cord and allows for the use of both outlets without obstruction, thanks to the orientation designed for easier plugging of DC transformers (wall warts).

General Information
Manufacturer	Legrand Group
Manufacturer Part Number	PDX615CSP
Manufacturer Website Address	http://www.legrand.us
Brand Name	Middle Atlantic
Product Line	NEXSYS
Product Model	PDX-615C-SP
Product Name	NEXSYS Series Compact Power Distribution Unit - 15 Amp, 6 Outlet
Product Type	PDU
Technical Information
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	6 x NEMA 5-15R
Protection Type	Surge Protection
Features	Compact
Power Description
Input Voltage	120 V AC
Output Voltage	120 V AC
Input Current	15 A
Physical Characteristics
Mount Type	Wall-mountable
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	0U
Height	1.7"
Width	8.1"
Depth	7"
Miscellaneous
Package Contents	NEXSYS PDX-615C-SP 6-Outlets PDU Clamp L-brackets Standard 2' Cord
Country of Origin	Malaysia
