STARTECH
STARTECH CC1M-40G-USB-CABLE 3FT USB4 CABLE USB-IF CERTIFIED THUNDERBOLT 4/3 OVER USB TYPE-C
Mfg Part Number: CC1M-40G-USB-CABLE , Item #: 4919390
, PO and Wire.

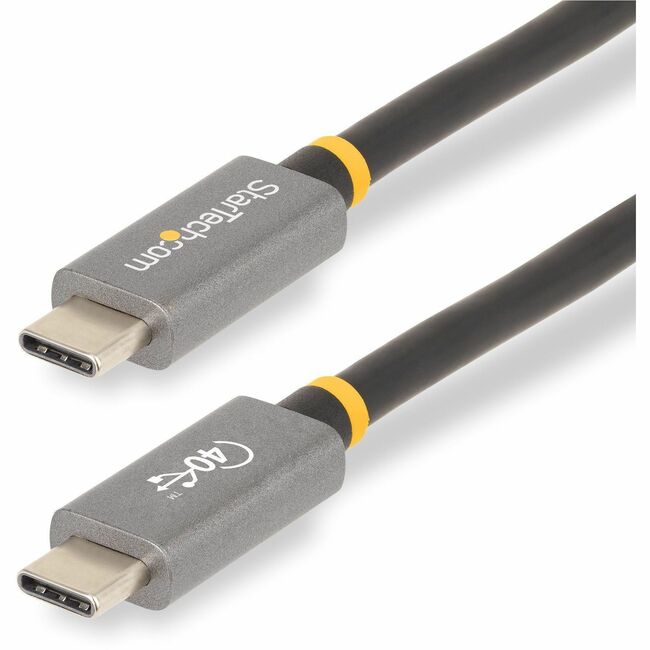

This 3ft (1m) USB4 Cable connects to USB Type-C (USB 3.2), Thunderbolt 4/3, and PCIe-enabled devices, delivering up to 40Gbps, 4K/8K video, and 100W charging.
Establish Fast and Stable Power/Data Connections
This USB4 Type-C cable is USB-IF certified for guaranteed USB-C compatibility. It reliably delivers consistent transfer rates and up to 100W PD output. It is ideal for 40Gbps data transfer to external USB-C-enabled external storage devices or as a single-cable connection from a USB-C dock to a laptop.
This cable has undergone rigorous USB-IF compliance testing to meet USB4 specifications. This includes electrical and mechanical standards which ensures a reliable, high-quality cable for USB-C devices.

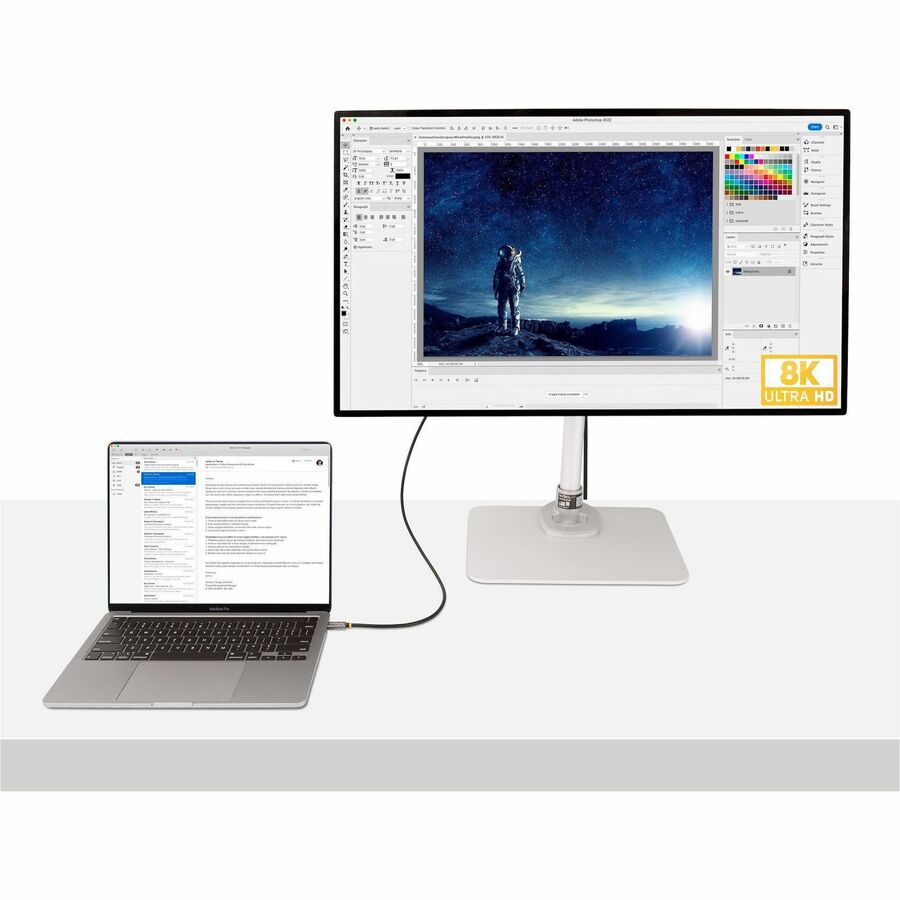

Experience 8K Video with DisplayPort 1.4 Alt Mode
The USB4 cable supports up to 8K 60Hz video over DisplayPort 1.4 Alt Mode with DSC, HDR, and HBR3, and is compatible with dual 4K 60Hz and lower resolutions.
Power a USB-C Laptop
Power and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface with up to 100W output over USB Power Delivery 3.0. Connect the USB4 cable from a laptop to a USB-C wall charger or docking station.
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | CC1M40GUSBCABLE |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Coaxial Data Transfer Cable |
| Packaged Quantity | 1 |
| Product Type | Data Transfer Cable |
| Technical Information | |
| Cable Type | Coaxial |
| Cable Length | 3 ft |
| Connector Type on First End | USB4 Thunderbolt 4 Type C - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x USB4 Thunderbolt 4 Type C - Male |
| Connector Type on Second End | USB4 Thunderbolt 4 Type C - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x USB4 Thunderbolt 4 Type C - Male |
| Connector Plating | Nickel |
| Shielding | Yes |
| Device Supported | Notebook |
| Device Supported | Monitor |
| Device Supported | Storage Device |
| Device Supported | Wall Charger |
| Device Supported | USB Device |
| Device Supported | Docking Station |
| Device Supported | MacBook |
| Device Supported | Dock |
| American Wire Gauge | 34 AWG |
| Data Transfer Rate | 40 Gbit/s |
| Supported Resolution | 7680 x 4320 |
| Features | Charging |
| Features | Strain Relief |
| Features | Passive |
| Features | HDR Support |
| Features | DisplayPort Alternate (ALT) Mode |
| Features | E-marker Chip |
| Features | EMI Protection |
| Features | Display Stream Compression (DSC) |
| Features | Power Delivery 3.0 |
| Features | Halogen Free |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Shielding Material | Mylar |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Miscellaneous | |
| Compatibility | Apple - MacBook |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
