BLACK BOX

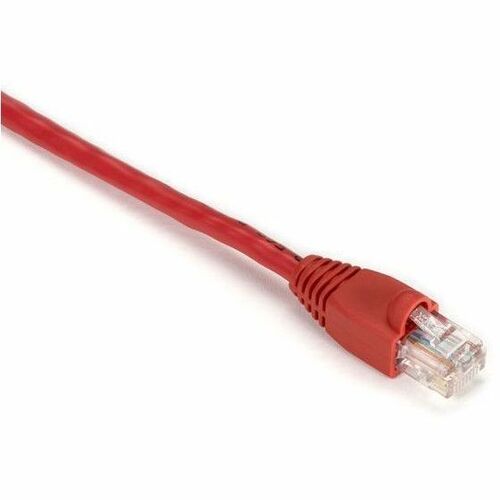

BLACK BOX EVNSL83-25 ENHANCED PATCH CORD RED CUSTOM LENGTH 25FT
Mfg Part Number: EVNSL83-25 , Item #: 4908151
, PO and Wire.
Black Box GigaBase Premium CAT5e patch cables are constructed to exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Fast Ethernet applications and guaranteeing the transmission of your voice, data, audio/video and/or PoE signals. Tested to 350-MHz and 1-Gbps performance, these cables exceed the 100-MHz CAT5e spec, greatly reducing impedance, structural return loss, and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.
These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation. Available in a variety of lengths and colors, Black Box's GigaBase line of cabling gives you the flexibility to build your install however you want.
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | EVNSL8325 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | GigaBase |
| Product Name | GigaBase Cat.5e UTP Patch Network Cable |
| Packaged Quantity | 25 / Pack |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 5e |
| Cable Characteristic | Patch Cable |
| Cable Length | 25 ft |
| Connector Type on First End | RJ-45 Network |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Shielding | No |
| Jacket Type | CMP |
| Jacket Type | CMR |
| Jacket Type | CMG |
| Jacket Type | CM |
| Jacket Type | Plenum |
| Device Supported | Patch Panel |
| Device Supported | Network Device |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 1 Gbit/s |
| Number of Conductors | 8 |
| Boot Type | Snagless |
| Number of Pairs | 4 |
| Features | Unshielded Twisted Pair (UTP) |
| Features | Strain Relief |
| Features | PoE |
| Features | Power-sum Near End Crosstalk (PSNEXT) |
| Features | Booted |
| Features | Stranded |
| Features | Near End Cross Talk (NEXT) |
| Features | Damage Resistant |
| Features | Flame Retardant |
| Features | Flexible |
| Physical Characteristics | |
| Color Family | Red |
| Product Color | Red |
| Product Material | PVC |
| Insulation Material | High-density Polyethylene (HDPE) |
| Insulation Material | Polyolefin |
| Insulation Material | Fluorinated Ethylene Propylene (FEP) |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Material | Fire Resistant Polyvinyl Chloride (FR-PVC) |
| Jacket Material | Fluorinated Ethylene Propylene (FEP) |
| Warranty | |
| Limited Warranty | Lifetime |
