Easy modification, maximum possibilities

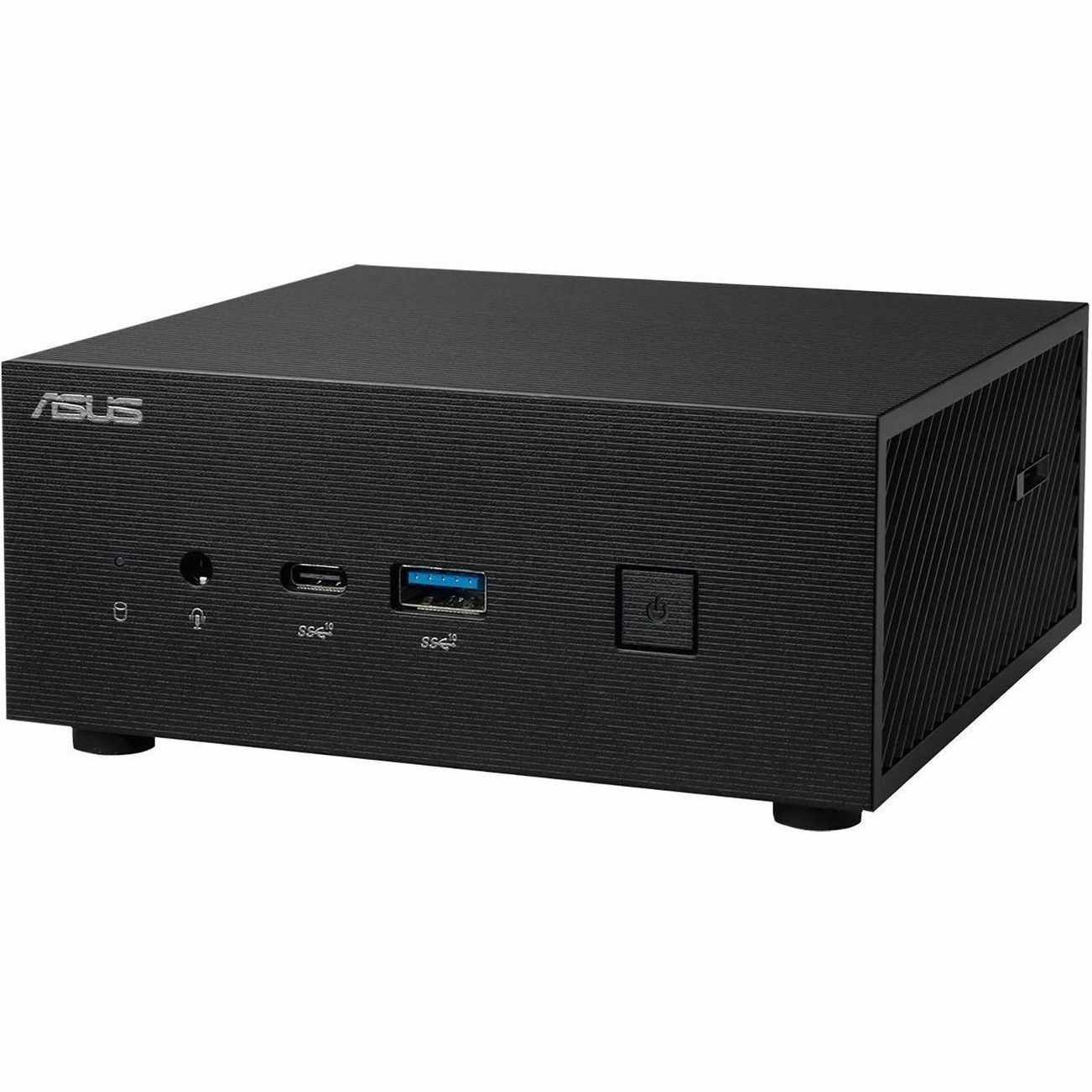

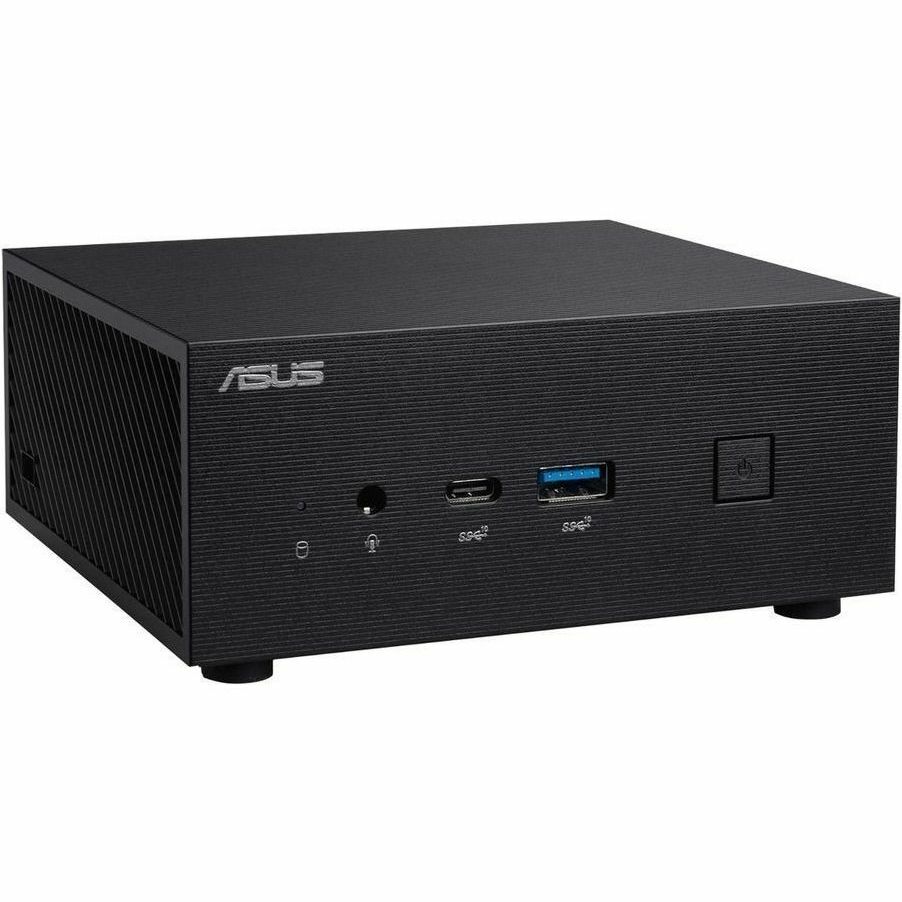

ASUS Mini PC PN63-S1 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the latest 11th Generation Intel® Core™ processors and support for high-speed 3200MHz DDR4 memory, Mini PC PN63-S1 is ready to take on demanding workloads, yet its diminutive size takes up minimal space on a desk and makes it suited for applications where traditional PCs won't fit, such as for digital signage or in a home theater. Wi-Fi 6E networking ensures stable, high-speed data transfers, even in crowded networking environments.
Performance
ASUS Mini PC PN63-S1 is no lightweight when it comes to performance. It harnesses the power of the latest 11th Gen Intel® Core™ processors combined with plenty of fast RAM, plus Intel® Iris® Xe and multiple storage combinations. There's also an ultrafast PCIe® SSD to ensure fast boot times and rapid app loads.
Flexibility | Upgrade-friendly
A convenient sliding chassis design lets you add or upgrade 2 x M.2 Slot & 1 x 2.5" HDD, support PCIe G4x4, PCIe G3x4, or memory in two easy steps using just a screwdriver. A bare-bones option is also available, giving you maximum flexibility to customize your system.
Performance | Small and powerful
11th Gen Intel Core processors deliver outstanding performance and smooth computing power, while integrated Intel Iris® Xe graphics enhance fast-moving visuals to enable Mini PC PN63-S1 to tackle intensive business operation with ease.
Performance | Improved Cooling
Mini PC PN63-S1 has unique cooling features, including a large fan to boost airflow, a new thermal module with a heat pipe for better heat dissipation, and an aluminum heatsink for more efficient conductivity. In addition, the exclusive ASUS Anti-Dust Self-Cleaning System effectively removes dust to maintain a cleaner heatsink and prolong the lifecycle of the product. A cleaner system also leads to quieter fan performance.
Triple storage design
ASUS Mini PC PN63-S1 fits one Memory or 2 x M.2 Slot , and a 2.5-inch HDD, support PCIe G4x4, PCIe G3x4 letting you create your own custom storage solution with the balance of speed and capacity to fit your needs.
Design | Modern, space-saving design

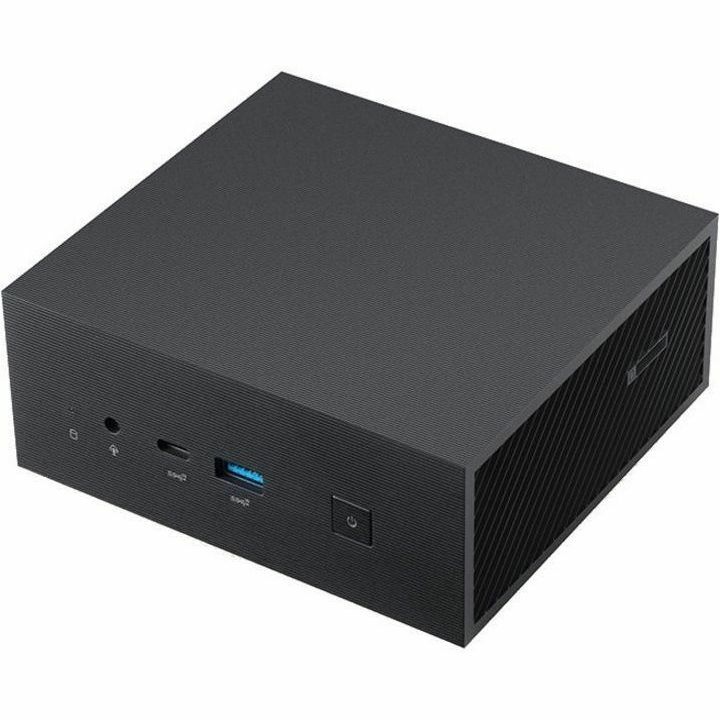

With a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN63-S1 easily blends into home, office and retail environments. Compact and lightweight at 120mm x 130mm x 58mm with a 0.9-liter volume, it can be placed almost anywhere and even attached to the back of a display with a VESA mount for a space-saving, all-in-one solution.
Connectivity | High speed data transmission

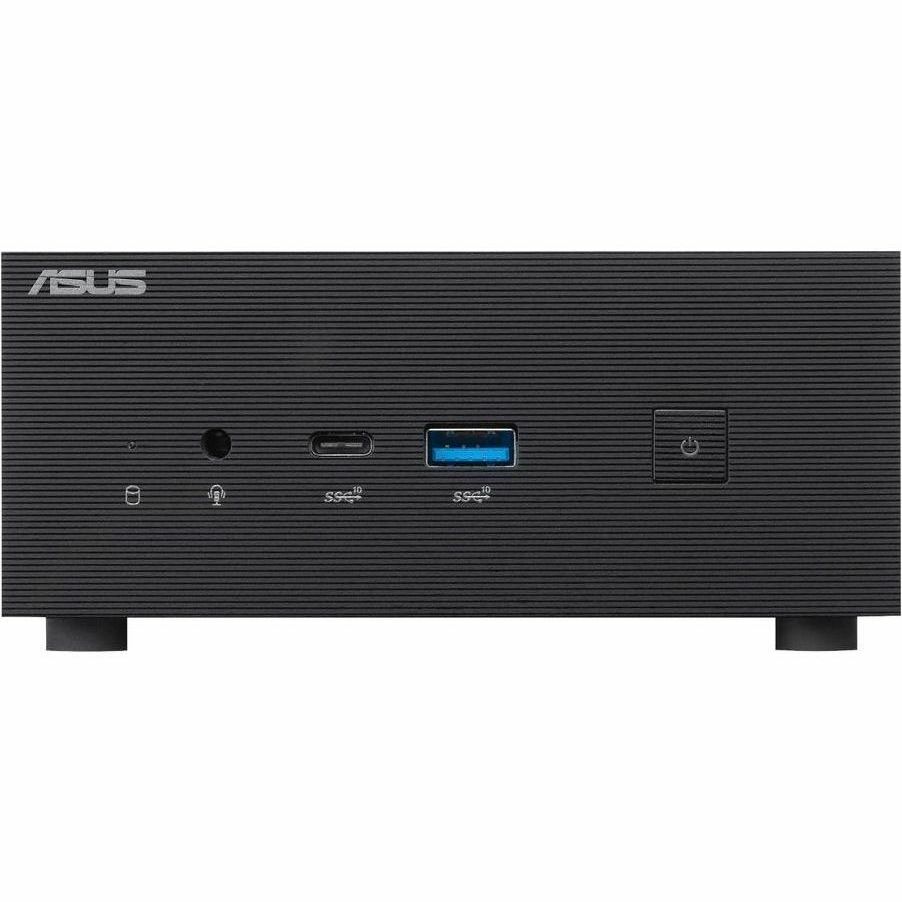

ASUS Mini PC PN63-S1 provides comprehensive connectivity with multiple ports, including a front-mounted USB 3.1 Gen2 Type-C port and a configurable port to support legacy devices, additional displays or multiple network connections.
Hyper-fast 2.5Gbps Networking
PN63-S1 next-generation 2.5GBase-T (2.5G) networking technology to deliver speeds of up to 2.5Gbps -2.5X faster than standard gigabit Ethernet. It enables ultra-fast 2.5Gbps network access for desktop PCs, so you can easily handle the most data-intensive tasks in your office or at home.
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PN63S1SYS5G82PXTD |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus |
| Product Series | PN63-S1 |
| Product Model | PN63-S1-SYS5G82PXTD |
| Product Name | PN63-S1-SYS5G82PXTD Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 11th Gen |
| Processor Model | i5-1135G7 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2.40 GHz |
| Processor Threads | 8 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 8 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed | 3200 MHz |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express NVMe |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen2 Type-C |
| Number Of Ethernet Ports | 1 |
| Optional Ports | Details regarding optional ports aggregated from the information available for this product's family/series.
|
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 2.3" |
| Width | 4.7" |
| Depth | 5.1" |
| Miscellaneous | |
| Package Contents |
|
| Features | Security Slot |
| Energy Star | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
