ASROCK

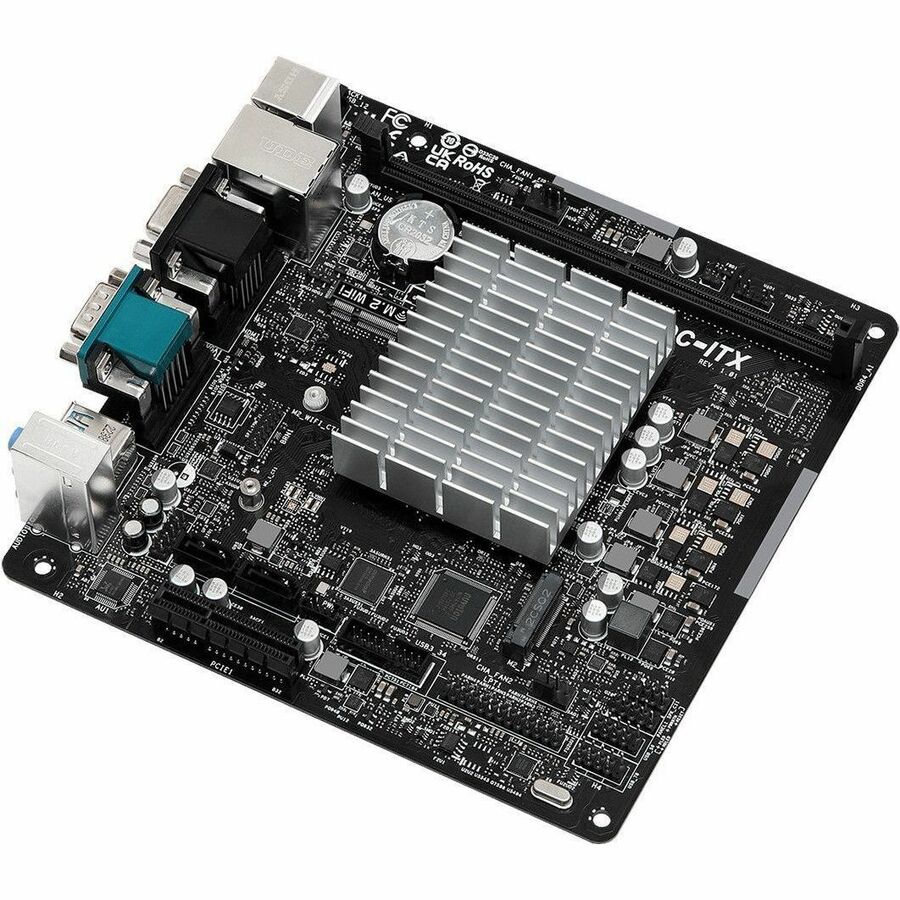

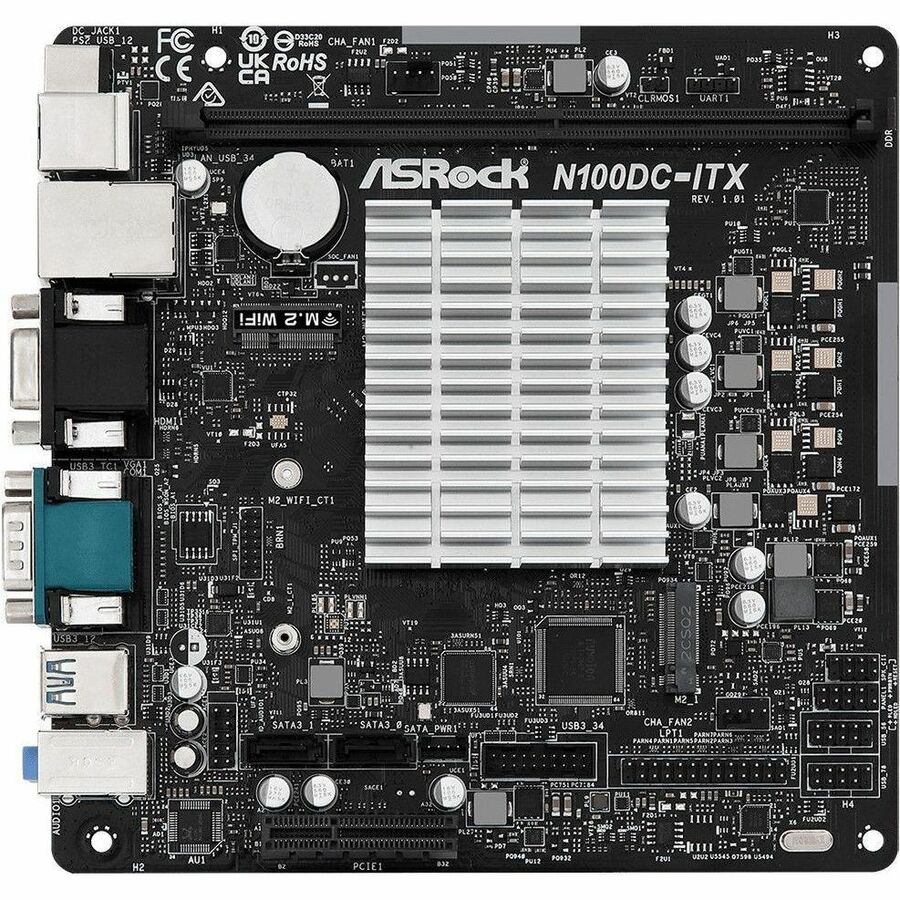

ASRock MB N100DC-ITX Quad-Core N100 Max32GB 1xDDR4 1xPCIE 2xSATA3 Mini-ITX
Mfg Part Number: N100DC-ITX , Item #: 4899639
, PO and Wire.
Intel®Alder Lake-N N100 Processor
The newest Intel®N100 processor, built on the Gracemont CPU microarchitecture using the Intel®7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel®UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.
DC-In Design
The DC-In jack is compatible with 19V power adapters (5.5*2.5mm DC-in jack). Without a bulky power supply unit, this unique design allows this motherboard to fit in compact chassis.
Fanless Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.
AV1 Decoding + 4K
Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
| General Information | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | N100DC-ITX |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | N100DC-ITX |
| Product Name | N100DC-ITX Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Supported | N-series |
| Memory | |
| Number of Memory Slots | 1 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 3200 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | UHD Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| I/O Expansions | |
| PCI Express Standard | PCI Express 3.0 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| VGA | Yes |
| HDMI | Yes |
| HDMI Version | |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.7" |
| Depth | 6.7" |
| Miscellaneous | |
| Energy Efficiency Compliance | Energy-related Products Directive Ready (ErP Ready) |
| Energy Efficiency Compliance | Energy-using Products Directive Ready (EuP Ready) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
