HPE

P55534-001 HPE ML110 G11 3408U 1P 16G 4LFF 4TB SVR

Mfg Part Number:  P55534-001

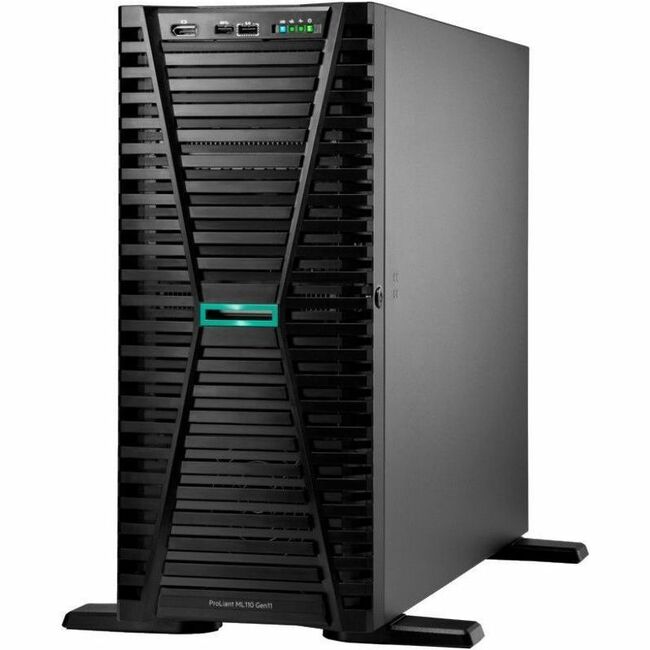

Image may not reflect the actual item.
Price: $6,590.10 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 07, 2025
No Sales Tax except these states
, PO and Wire.

Provide enhanced single processor and storage flexibility in a 4.5U 1P tower optimized server with optional rackable chassis, outstanding compute performance, security, reliability, and expandability at an affordable price. Fill a mid-range of workloads for small offices, remote and branch offices of large enterprises, growing SMBs and data centers with the power of 4th Gen Intel® Xeon® Scalable Processors (up to 32 cores) increased bandwidth with DDR5 and PCIe Gen5. HPE ProLiant ML110 Gen11 server is an excellent choice to accelerate your growing business.

Main Specification
General Information
Manufacturer Hewlett Packard Enterprise
Manufacturer Part Number P55534001
Manufacturer Website Address http://www.hpe.com
Brand Name HPE
Product Line ProLiant
Product Series ML110 G11
Product Name ProLiant ML110 Gen11 Server
Product Type Server
Processor
Number of Processors Supported 1
Number of Processors Installed 1
Processor Type Xeon Bronze
Processor Generation 4th Gen
Processor Model 3408U
Processor Core Octa-core (8 Core)
Processor Speed 1.80 GHz
Cache 22.50 MB
Chipset
Chipset Manufacturer Intel
Chipset Model C741
Memory
Standard Memory 16 GB
Maximum Memory Supported 1 TB
Memory Technology DDR5 SDRAM
Memory Clock Speed 4 GHz
Error Checking ECC
Total Number of Memory Slots 16
Signal Processing Registered (Buffered)
Storage
Number of Hard Drives 1
Total Hard Drive Capacity 4 TB
Hard Drive Interface Serial ATA
Hard Drive Configuration 1 x 4TB
Controllers
Controller Type Serial ATA
RAID Supported Yes
I/O Expansions
Number of Total Expansion Bays 4
Number of 3.5" Bays 4
Number of LFF Bays 4
PCI Express Details PCIe 5.0: 2 slots (x16), upgradable to 4 slots (x16) OCP 3.0 with PCIe Gen 5.0: 1 slot (x16)
Display & Graphics
Graphics Memory Capacity 16 MB
Network & Communication
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports 5
Number of USB 2.0 Ports 1
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 2
VGA Yes
Number of VGA Ports 1
Remote Management Yes
Remote Management Controller HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses)
Operating System
Operating System Supported Ubuntu
Operating System Supported SuSE Linux Enterprise Server
Operating System Supported Citrix XenServer
Operating System Supported Windows Server
Operating System Supported Red Hat Enterprise Linux
Operating System Supported Oracle Linux
Power Description
Input Voltage 230 V AC
Input Voltage 120 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Plug/Connector Type C13/C14
Maximum Power Supply Wattage 800 W
Hot Swappable Power Supply Yes
Power Source Power Supply
Physical Characteristics
Form Factor Tower
Rack Height 4.5U
Height 18.2"
Width 7.7"
Depth 23.1"
Weight (Approximate) 44.31 lb
Miscellaneous
Security Features
  • UEFI Secure Boot and Secure Start support
  • Immutable Silicon Root of Trust
  • FIPS 140-3 validation (iLO 6 certification in progress)
  • Common Criteria certification (iLO 6 certification in progress)
  • Configurable for PCI DSS compliance
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Support for Commercial National Security Algorithms (CNSA)
  • Tamper-free updates -- components digitally signed and verified
  • Secure Recovery -- recover critical firmware to known good state on detection of compromised firmware
  • Ability to rollback firmware
  • Secure erase of NAND
  • TPM (Trusted Platform Module) 2.0
  • Front bezel key-lock feature -- standard, available in both Tower and Rack models
  • Padlock slot, standard
  • Kensington Lock slot, standard
  • Chassis Intrusion detection option
Energy Star Yes
Environmentally Friendly Yes
Energy Efficiency Compliance Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 3 Year
Additional Warranty Information

3-year parts, 3-year labor, 3-year onsite support with next business day response.
