NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Line Interactive UPSs prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect.
General Information | |
Manufacturer | Legrand Group |
Manufacturer Part Number | UPX-RLNK-1500R-8 |
Manufacturer Website Address | http://www.legrand.us |
Brand Name | Middle Atlantic |
Product Line | NEXSYS |

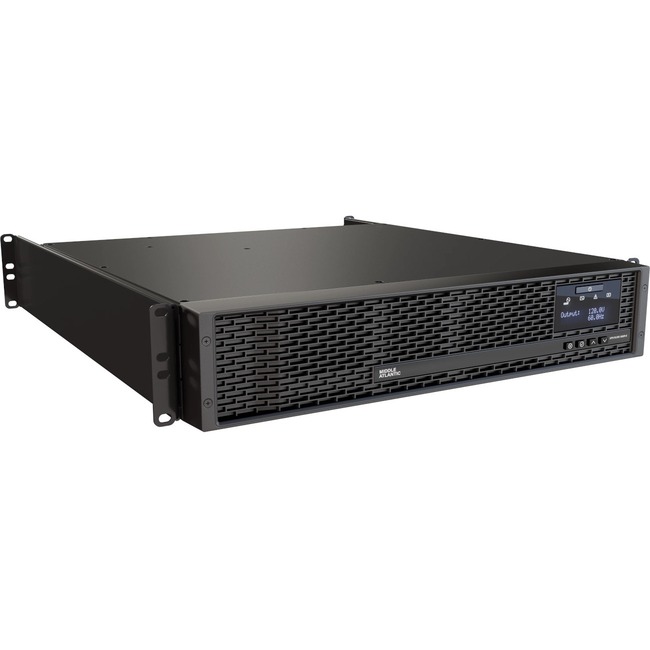

Product Name | NEXSYS 1500VA Rack-mountable UPS |
Product Type | Line-interactive UPS |
Technical Information | |
AVR | Yes |
Plug/Connector Type | NEMA 5-15P |
Receptacle Type | NEMA 5-15R |
Receptacle Detail | 8 x NEMA 5-15R |
Application/Usage | Audio/Video Equipment |
Power Description | |
Load Capacity (VA) | 1500 VA |
Load Capacity (Watt) | 1350 W |
Input Voltage | 120 V AC |
Output Voltage | 120 V AC |
Output Voltage | 110 V AC |
Output Voltage | 127 V AC |
Waveform Type | Pure Sine Wave |
Display & Graphics | |
Display | LCD |
Interfaces/Ports | |
Serial Port | Yes |
Battery Information | |
DC System Voltage | 36 V DC |
Hot Swappable | Yes |
Environmental Conditions | |
Maximum Operating Temperature | 104°F (40°C) |
Physical Characteristics | |
Product Color | Black |
Height | 3.5" |
Width | 19" |
Depth | 16" |
Rack Height | 2U |
Form Factor | Rack-mountable |
Weight (Approximate) | 44.09 lb |
Miscellaneous | |
Package Contents |
|
Energy Star | Yes |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 3 Year |
Additional Warranty Information | 2 Years Battery |
