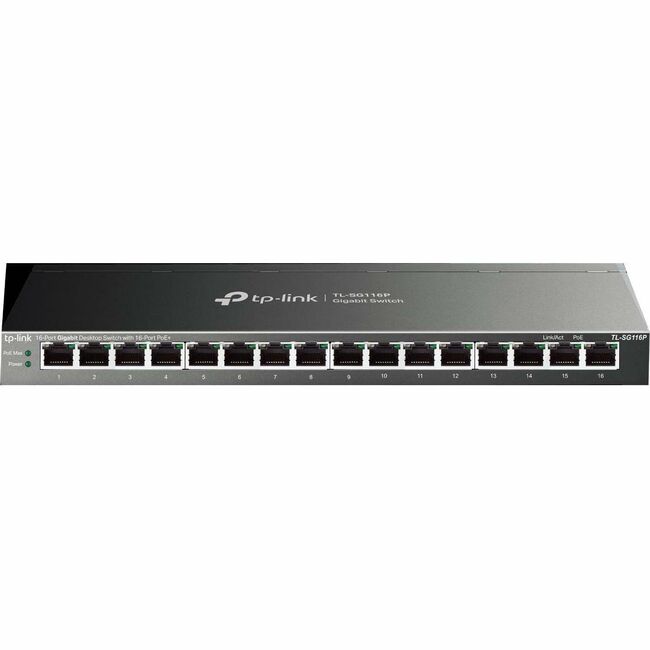

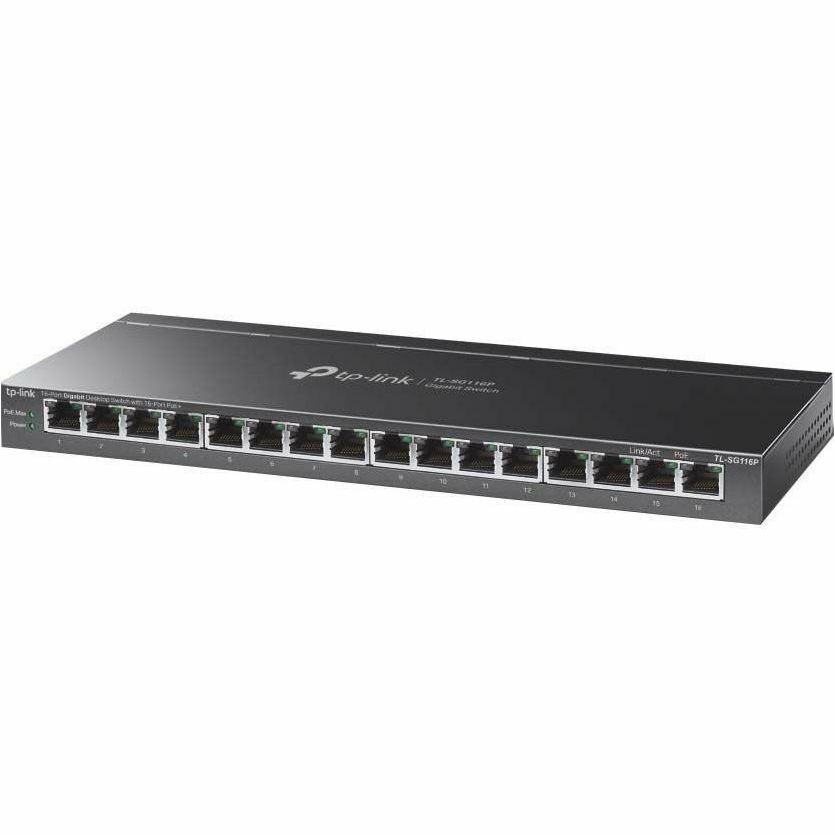

TP LINK TP-Link SWT TL-SG116P 16Port Gigabit Desktop Switch w 16xPoE+ 120W PoE Power
Mfg Part Number: TL-SG116P , Item #: 4890211
, PO and Wire.
TL-SG116P is an unmanaged switch with 16 Gigabit ports that requires no configuration and provides 16 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet
16 RJ45 ports of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Overload Arrangement
TL-SG116P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 120 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
| General Information | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TLSG116P |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Brand Name | TP-Link |
| Product Model | TL-SG116P |
| Product Name | 16-Port Gigabit Desktop Switch with 16-Port PoE+ |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.3i |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Power Source | Power Supply |
| Power Consumption | 144.28 W |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Wall Mountable |
| Form Factor | Desktop |
| Height | 1" |
| Width | 11.3" |
| Depth | 4.4" |
| Miscellaneous | |
| Application/Usage | IP Camera |
| Application/Usage | Network |
| Application/Usage | IP Phone |
