COOLER MASTER
COOLER MASTER CoolerMaster Fan RR-S4NA-17PA-R1 HYPER 212 SPECTRUM V3 ARGB Auto Detection
Mfg Part Number: RR-S4NA-17PA-R1 , Item #: 4878925
, PO and Wire.

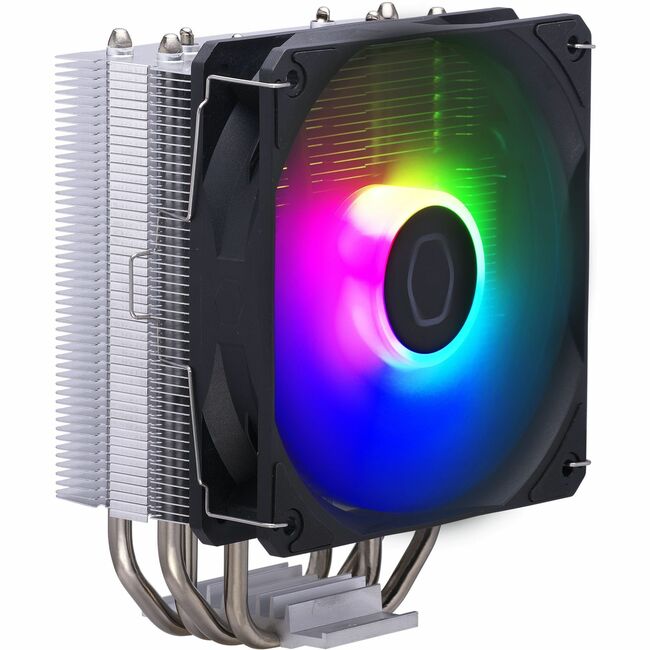

Cooler Master is releasing the Hyper 212 Spectrum V3, a redesigned addition to its popular 212 Spectrum predecessor. The 4 heat pipe array has been treated with silver nickel plating for unhindered heat conductivity as well as matching aesthetics. The cooler height is set at 152mm, allowing for a wide range of compatibility in most chassis without sacrificing cooling. The installation brackets give you the versatility for the latest platforms on market.
Spectrum ARGB Fan
120mm Spectrum ARGB fan certified for compatibility with Asus Aura, ASRock RGB, GIGABYTE and MSI RGB Motherboards. (Controller not included)
Wide Range Compatibility
Compact 152mm height designed for wide chassis compatibility without sacrificing performance
Nickel Plated Heat Pipes
4 heat pipes with silver nickel plated finish provide exceptional cooling and aesthetics
Upgraded Installation Brackets
Redesigned brackets simplify installation on the latest available platforms
Direct Contact Technology
Direct Contact Technology maximizes contact surface area and heat exchange
| General Information | |
| Manufacturer | Cooler Master Co., Ltd |
| Manufacturer Part Number | RRS4NA17PAR1 |
| Manufacturer Website Address | http://www.coolermaster-usa.com |
| Brand Name | Cooler Master |
| Product Line | Hyper 212 Spectrum V3 |
| Product Name | Hyper 212 Spectrum V3 |
| Packaged Quantity | 1 |
| Product Type | Cooling Fan/Heatsink |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Rifle Bearing |
| Fan Speed (Min) | 650 rpm |
| Fan Speed (Max) | 1750 rpm |
| Maximum Airflow | 71.93 CFM |
| Noise Levels (A-Weighted) | 27.2 dB(A) |
| Fan Life | 18.3 Year |
| LED Color | ARGB |
| Maximum Air Pressure | 1.86mmH2O |
| Heatsink Information | |
| Cooler Type | Air |
| Compatible Intel Socket | H4 LGA-1151 |
| Compatible Intel Socket | LGA-1700 |
| Compatible Intel Socket | H3 LGA-1150 |
| Compatible Intel Socket | H LGA-1156 |
| Compatible Intel Socket | H2 LGA-1155 |
| Compatible Intel Socket | LGA-1200 |
| Compatible AMD Socket | AM4 |
| Compatible AMD Socket | AM5 |
| Interfaces/Ports | |
| Connectors | 4-Pin PWM |
| Power Description | |
| Maximum Power Consumption | 3.12 W |
| Rated Current | 260 mA |
| Physical Characteristics | |
| Color Family | Silver |
| Product Color | Silver |
| Maximum Fan Diameter | 4.72" |
| Fan Height | 0.98" |
| Fan Width | 4.72" |
| Height | 6" |
| Width | 2.9" |
| Depth | 4.8" |
| Weight (Approximate) | 1.43 lb |
| Miscellaneous | |
| Application/Usage | Motherboard |
| Application/Usage | Processor |
| Warranty | |
| Limited Warranty | 2 Year |
