5+2+2 Phases Digital VRM Solution with Low RDS(on)MOSFETs
GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Main Specification
| General Information | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | A620MS2H |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Gigabyte |
| Product Line | Ultra Durable |
| Product Model | A620M S2H |

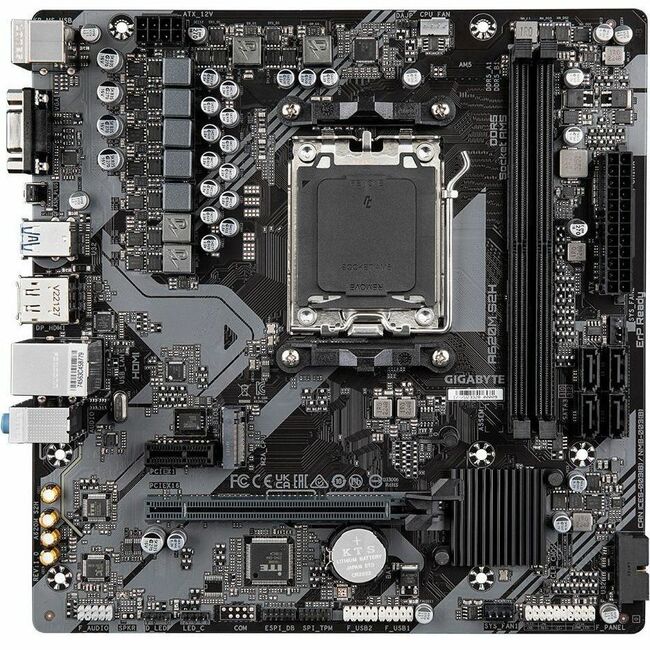

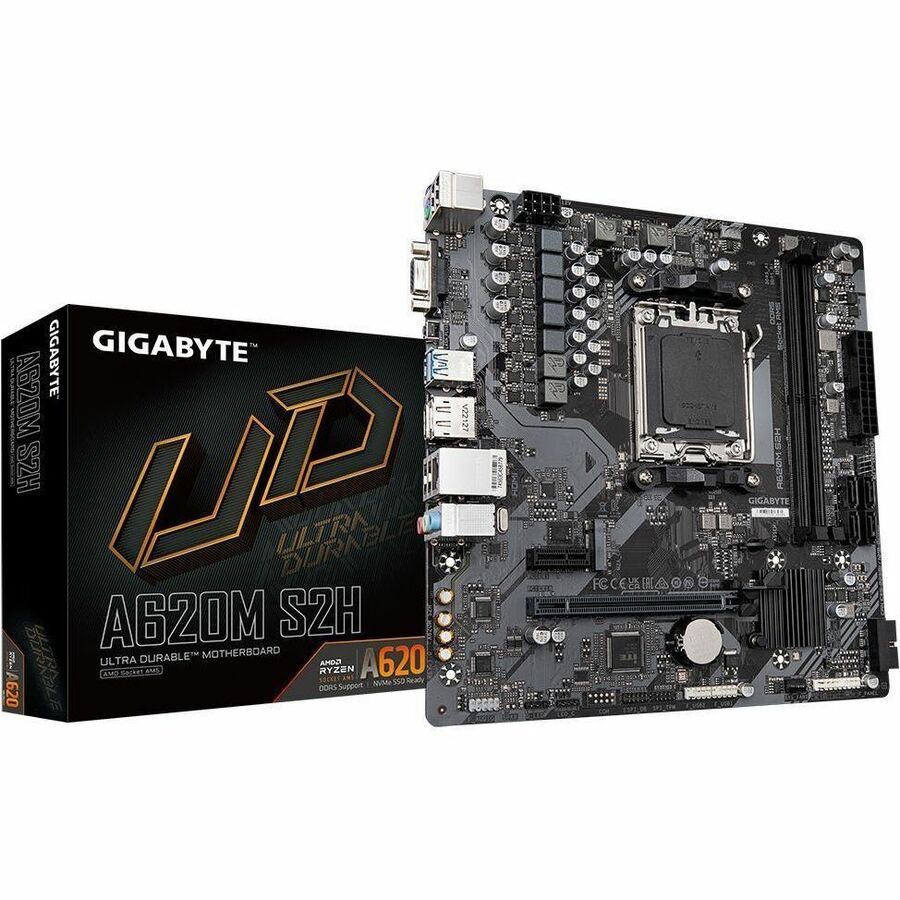

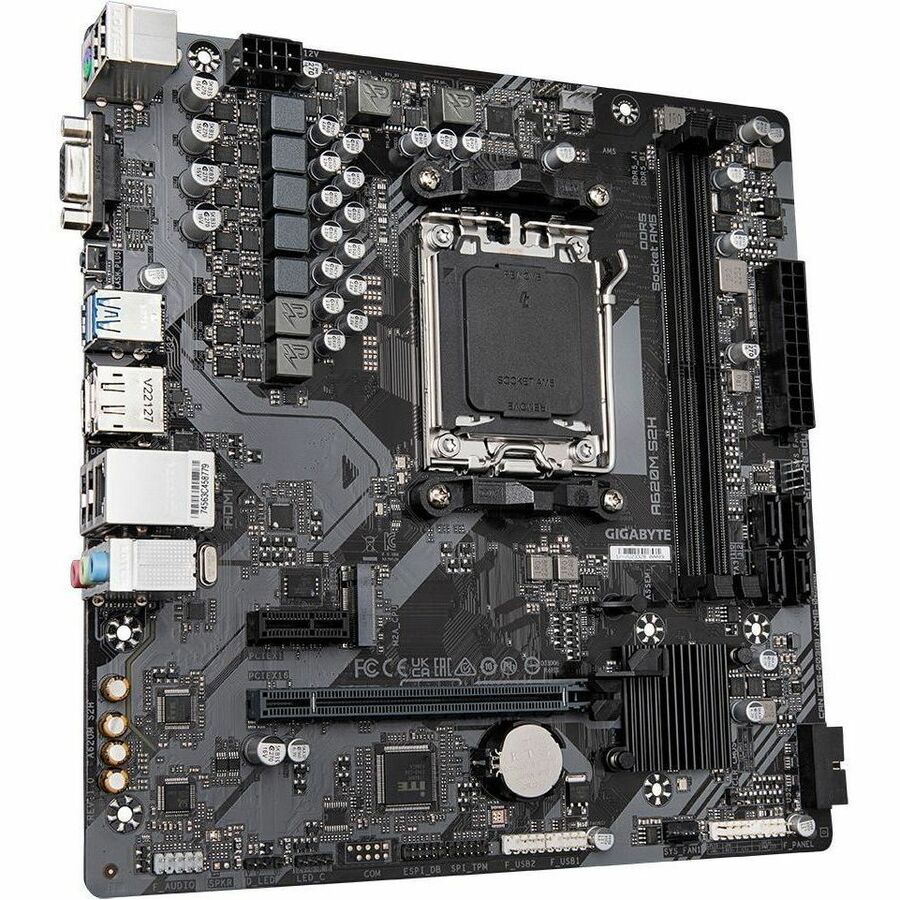

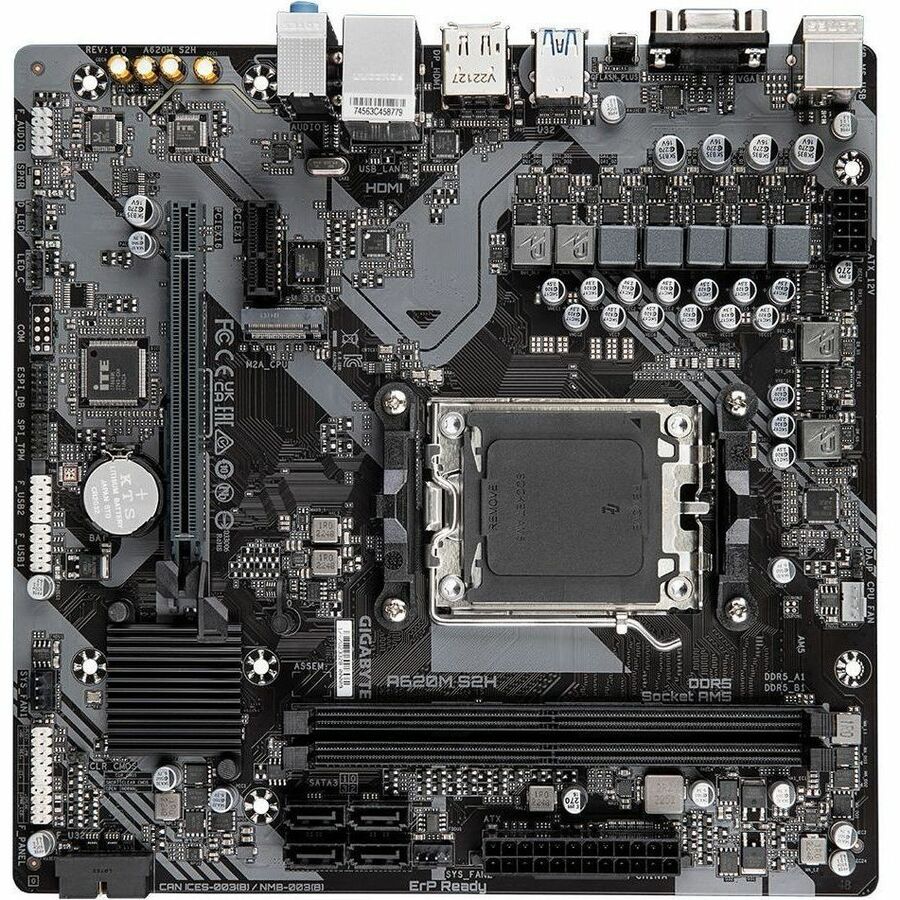

| Product Name | Ultra Durable A620M S2H Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | A620 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7 |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 96 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 6400 MHz |
| Memory Speed Supported | 5200 MHz |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 6200 MHz |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 6000 MHz |
| Memory Speed Supported | 4800 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express Standard | PCI Express 4.0 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |

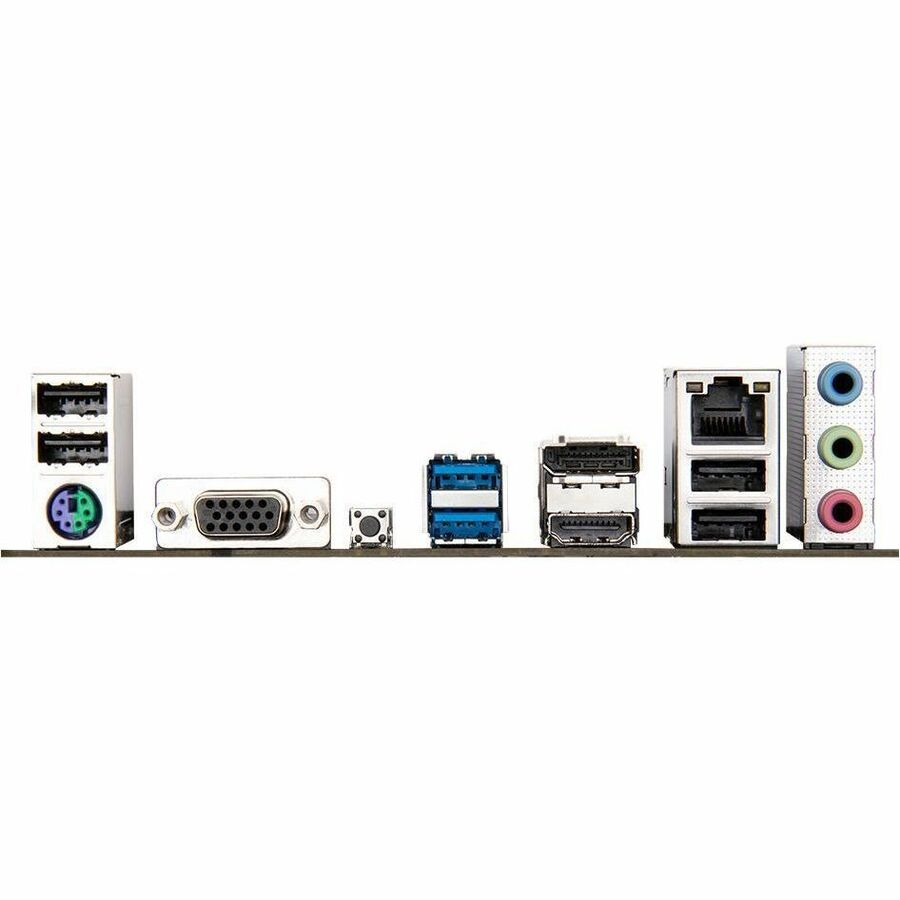

| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SAS Interfaces | 4 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.1" |
| Depth | 8.9" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive Ready (ErP Ready) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
