RARITAN

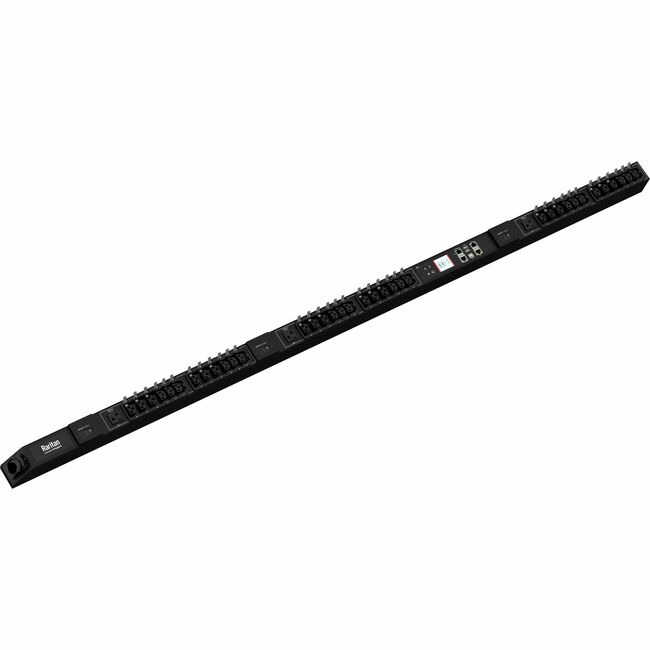

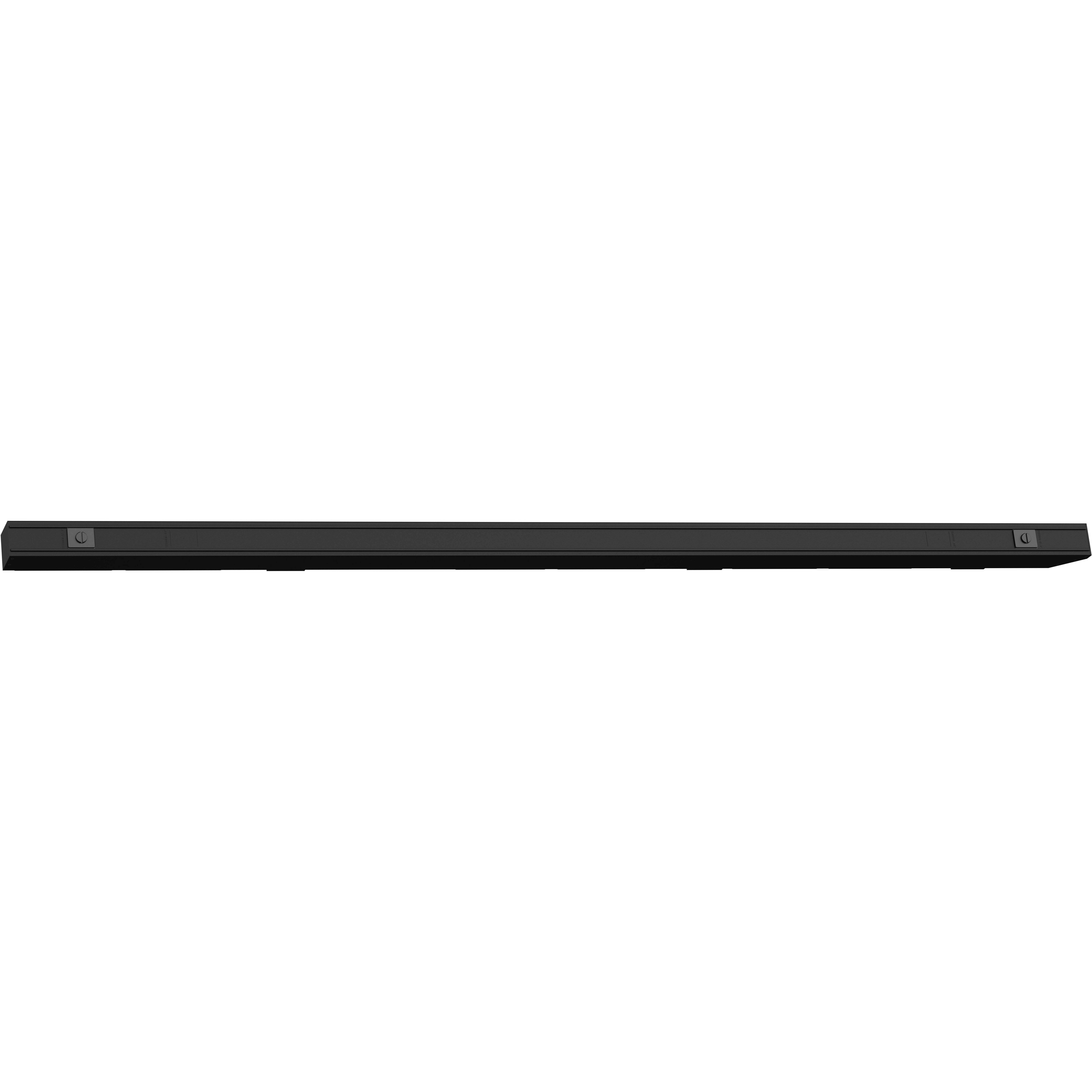

RARITAN PX4-541A-E7 3PH, 208V, 30A (DERATED TO 24A), 39 OUTLETS: 18 X LOCKING C13, 18 X LOCKING CX,
Mfg Part Number: PX4-541A-E7 , Item #: 4867275
Image may not reflect the actual item.
Price: $3,127.08
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jan 24, 2026
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX4541AE7 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Raritan |
| Product Series | PX4 |
| Product Model | PX4-541A-E7 |
| Product Name | PX4-541A-E7 39-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched with Metered-by-Outlet |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L21-30P (4P5W) |
| Receptacle Type | CX |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 18 x IEC 60320 C13 |
| Receptacle Detail | 3 x NEMA 5-20R |
| Receptacle Detail | 18 x CX |
| Protection Type | Overload Protection |
| Protection Type | Circuit Breaker |
| Protection Type | Branch Circuit |
| Locking Receptacles | SecureLock |
| Locking Receptacles | P-Lock |
| Environmental Sensors | Humidity |
| Environmental Sensors | Differential Pressure |
| Environmental Sensors | Contact Closure |
| Environmental Sensors | Water |
| Environmental Sensors | Temperature |
| Environmental Sensors | Air Flow |
| Features | Multi-color LCD |
| Power Description | |
| Input Voltage | 208 V AC |
| Input Voltage Range | 190 V AC - 208 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 208 V AC - 208 V AC |
| Power Rating (VA) | 8600 VA |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black Powder Coat |
| Mount Type | Button Mount |
| Mount Type | Rack-mountable |
| Form Factor | Hot-swappable |
| Rack Height | 0U |
| Cord Length | 9.84 ft |
| Height | 70.1" |
| Width | 2.2" |
| Depth | 2.6" |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
| Maximum Storage Temperature | 176°F (80°C) |
| Minimum Operating Humidity | 5% |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
