RARITAN
RARITAN PX4-531A-E7 PXI-5-15PC19WL-3M:CABLE 5-15P/C19L 3M
Mfg Part Number: PX4-531A-E7 , Item #: 4866311
Image may not reflect the actual item.
Price: $2,646.95
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 07, 2026
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX4-531A-E7 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Raritan |
| Product Series | PX4 |
| Product Model | PX4-531A-E7 |

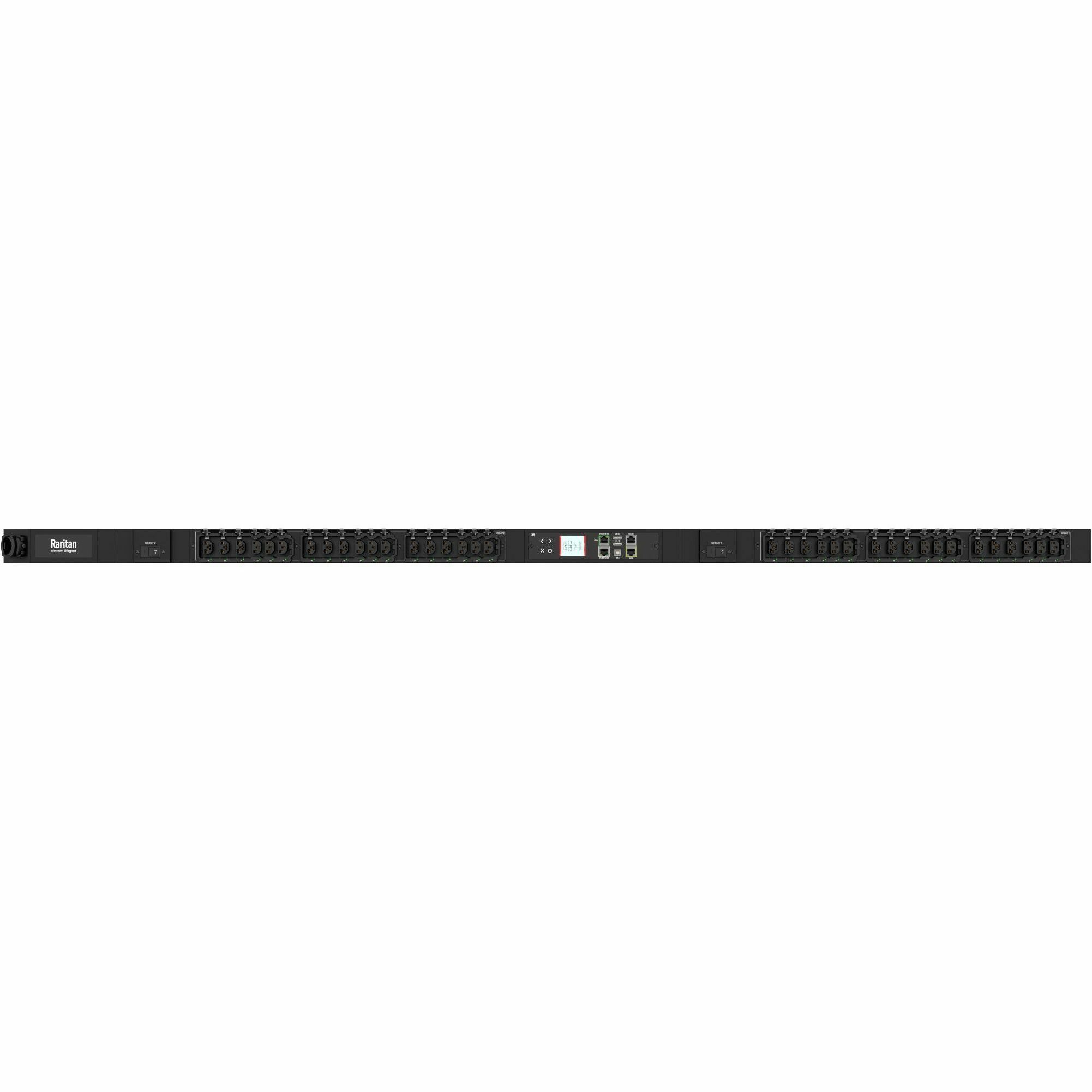

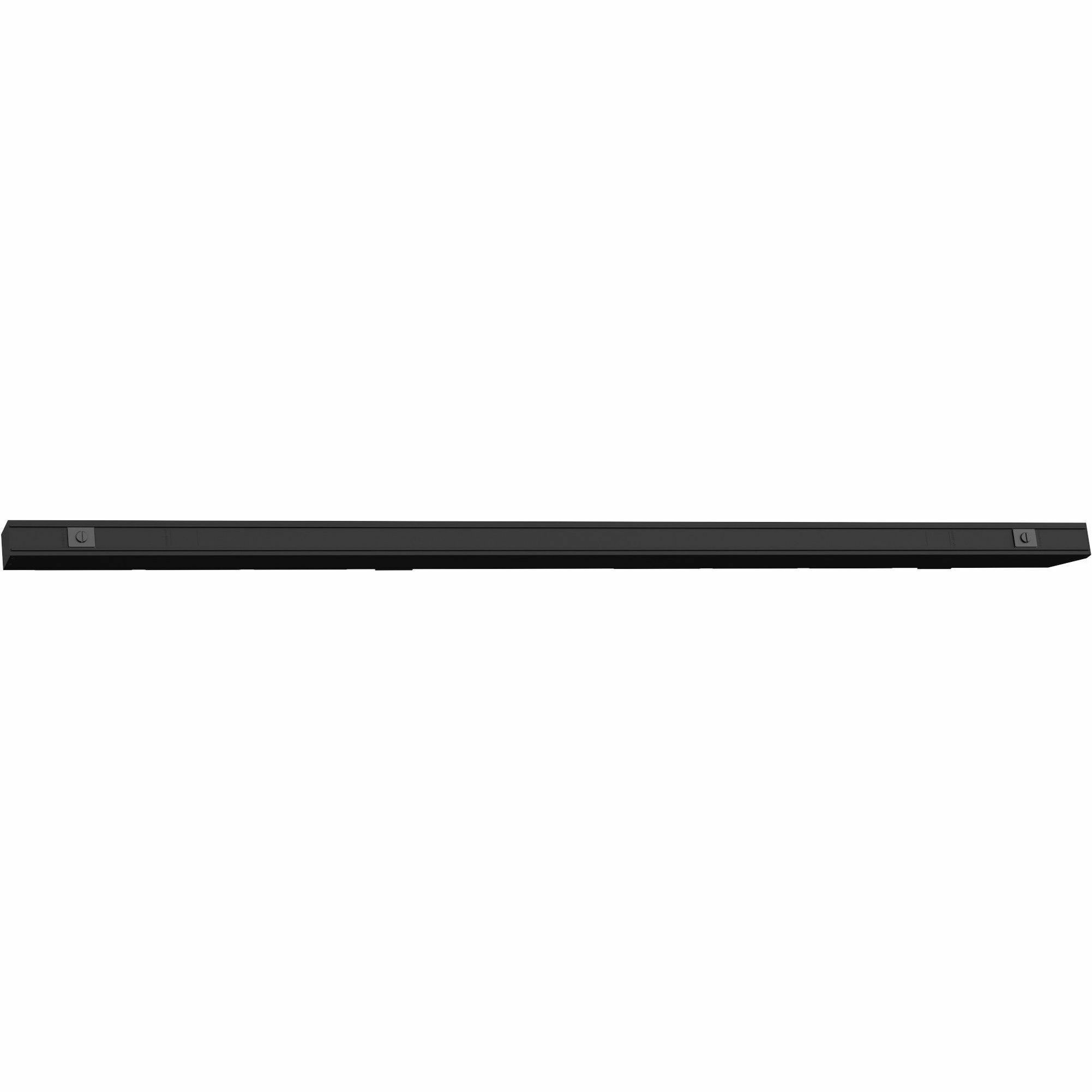

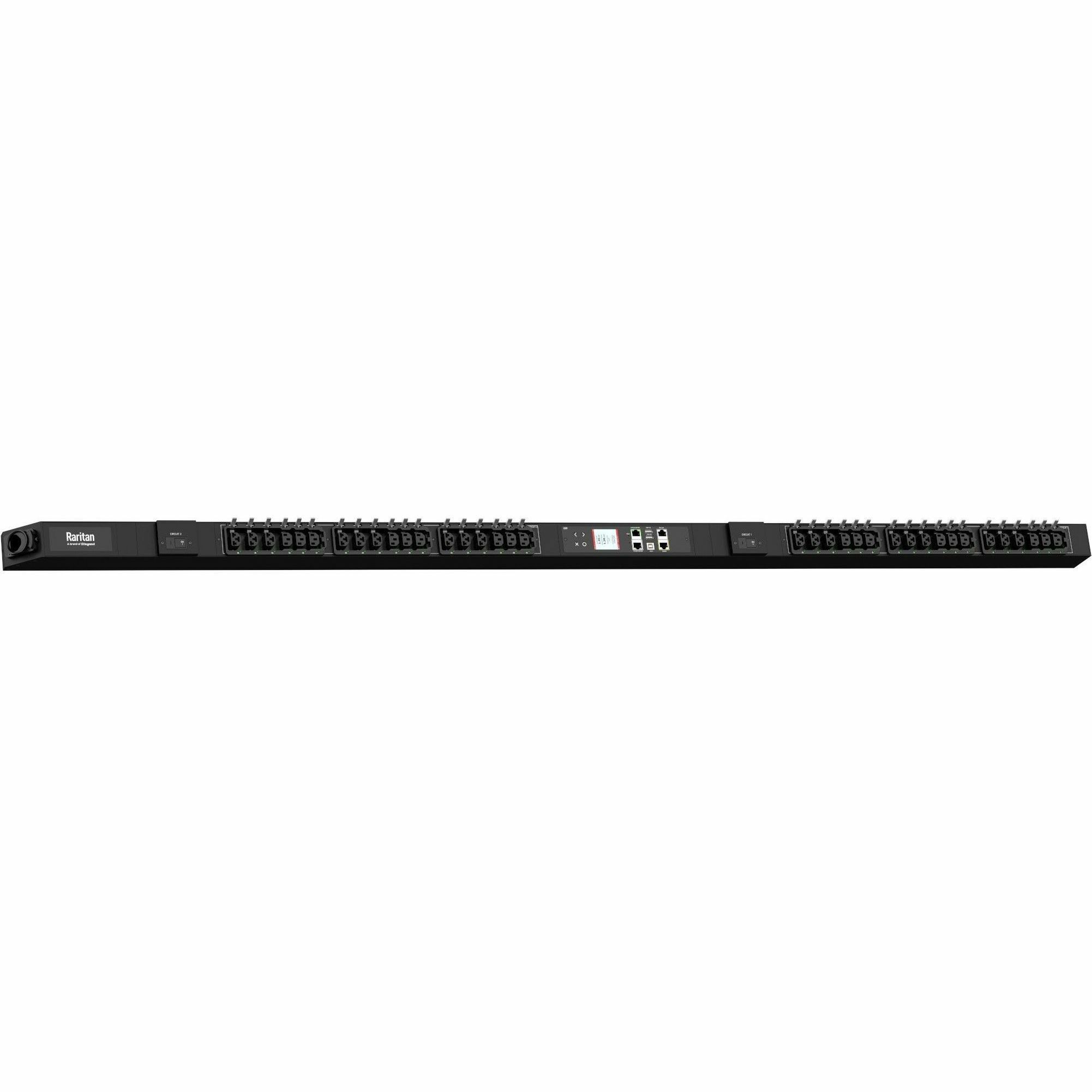

| Product Name | PX4-531A-E7 36-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched with Metered-by-Outlet |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P (2P3W) |
| Receptacle Type | CX |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 18 x CX |
| Receptacle Detail | 18 x IEC 60320 C13 |
| Protection Type | Circuit Breaker |
| Protection Type | Branch Circuit |
| Protection Type | Overload Protection |
| Locking Receptacles | SecureLock |
| Locking Receptacles | P-Lock |
| Environmental Sensors | Dust |
| Environmental Sensors | Contact Closure |
| Environmental Sensors | Differential Pressure |
| Environmental Sensors | Temperature |
| Environmental Sensors | Air Flow |
| Environmental Sensors | Humidity |
| Environmental Sensors | Water |
| Features | LCD Display |
| Features | Multi-color LCD |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Power Rating (VA) | 5800 VA |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black Powder Coat |
| Mount Type | Button Mount |
| Form Factor | Hot-swappable |
| Cord Length | 9.84 ft |
| Height | 70.1" |
| Width | 2.2" |
| Depth | 2.6" |
| Weight (Approximate) | 14.33 lb |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
| Maximum Storage Temperature | 176°F (80°C) |
| Minimum Operating Humidity | 5% |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
